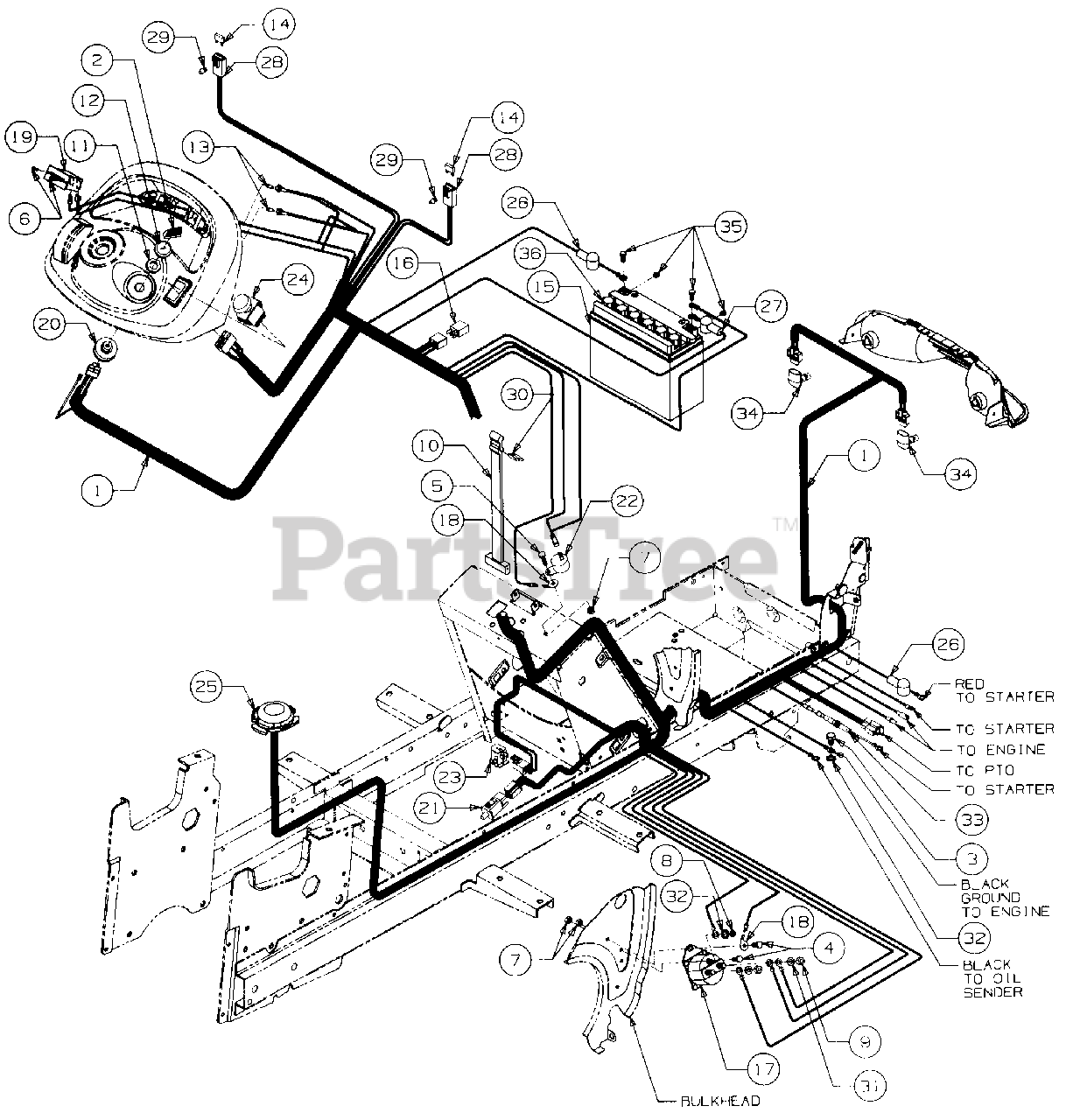

2160 (135-266-100) - Cub Cadet Garden Tractor (SN: 239001 - 326005) Battery, Electrical Components and Switches Parts Diagram

Garden Tractor

Battery, Electrical Components and Switches Parts Diagram

  • Title

1

Cub Cadet 629-3010A

Main Harness

$

$

Not available

1

Cub Cadet 725-0157

Tie, Self-Clinch Cable

Note: Not shown

$3.49

$

In Stock, only 4 left!

0

1

Cub Cadet 726-0215

Tie, Pushmount

Note: Not shown

$

$

Not available

2

Cub Cadet 959-3476A

Key, Ignition (Set of 2)
(Superseded to 925-0201)

$8.99

$

In Stock, Qty 14

0

3

Cub Cadet 710-0168

Screw, Hex Cap, 3/8-16 x .50 Lg GR2

$3.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 710-0751

Screw, Hex Cap, 1/4-20 x .625 Lg

$3.99

$

In Stock, Qty 20+

0

5

Cub Cadet 710-0597

Screw, Hex Cap, 1/4-20 x 1.0 Lg

$3.99

$

In Stock, Qty 19

0

6

Cub Cadet 710-0936

Screw, Truss Hd Tapp, #6 x .62 Lg

$4.49

$

Usually ships in 3-6 days

0

7

Cub Cadet 712-0271

Nut, Hex Sems, 1/4-20

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 712-0349

Nut, Hex, #10-32

$4.49

$

In Stock, Qty 5

0

9

Cub Cadet 912-3010

Nut, Hex, 5/16-18 GR5
(Superseded to 712-3010)

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet 723-3064

Strap, Battery Retainer

Note: (Incl. Ref No. 30)

$27.99

$

In Stock, only 4 left!

0

11

Cub Cadet 925-1346

Nut, Ignition Switch

$

$

Not available

12

Cub Cadet 725-1347

Cap, Ignition Switch

$4.49

$

In Stock, only 4 left!

0

13

Cub Cadet 925-1365

Bulb, Indicator

$9.99

$

In Stock, only 4 left!

0

14

Cub Cadet 925-1381

Fuse, 20 Amp

$5.99

$

In Stock, Qty 14

0

15

Cub Cadet 753-0608

Battery

$

$

Not available

15

Cub Cadet 726-0161

Clip, Retainer

Note: Not shown

$

$

Not available

16

Cub Cadet 925-1648

Relay
(Superseded to 925-1648A)

$43.99

$

In Stock, Qty 19

0

16

Cub Cadet 921-0342

Gasket, Silicone

Note: Not shown

$7.49

$

In Stock, only 3 left!

0

17

Cub Cadet 925-3001

Solenoid

$54.99

$

In Stock, Qty 13

0

18

Cub Cadet 725-3147

Lug, Quick Connect

$

$

Not available

19

Cub Cadet 925-3159

Hour Meter

$

$

Not available

20

Cub Cadet 925-3163

Switch, Ignition

$44.99

$

In Stock, Qty 20+

0

21

Cub Cadet 925-3164A

Switch, Interlock (Brake)

$37.99

$

In Stock, Qty 16

0

22

Cub Cadet 929-3080

Indicator, Voltage

$

$

Not available

23

Cub Cadet 925-3166

Switch, Snap Mount - Normally Closed (Reverse)

$15.99

$

In Stock, Qty 20+

0

24

Cub Cadet 925-3233

Switch, PTO
(Superseded to 925-3233A)

$47.99

$

In Stock, Qty 20+

0

25

Cub Cadet 925-3234

Switch, Seat

$34.99

$

In Stock, Qty 8

0

26

Cub Cadet 725-3237

Cover, Terminal Red

$9.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 725-3238

Cover, Terminal Black

$6.49

$

Usually ships in 3-6 days

0

28

Cub Cadet 729-0207

Holder, Fuse

$

$

Not available

29

Cub Cadet 729-0209

Clip, Fuse Holder Mtg

$

$

Not available

30

Cub Cadet 732-0696

Hook, Wire Rectangular

$4.49

$

Usually ships in 3-6 days

0

31

Cub Cadet 936-0119

Washer, Lock, 5/16

$4.49

$

In Stock, Qty 20+

0

32

Cub Cadet 736-0148

Washer, External Lock, 3/8

$3.49

$

In Stock, Qty 12

0

33

Cub Cadet 959-3689

Diode Assy w/Lead

$

$

Not available

34

Cub Cadet 925-3161A

Bulb, Head Lamp

$49.99

$

In Stock, only 4 left!

0

35

Cub Cadet 759-3749

Bolt, Battery (Set of 2)

$

$

Not available

36

Cub Cadet 759-3750

Cap, Battery

$

$

Not available
