2160 (135-266-100) - Cub Cadet Garden Tractor (SN: 239001 - 326005) Fender and Running Board Parts Diagram

Garden Tractor

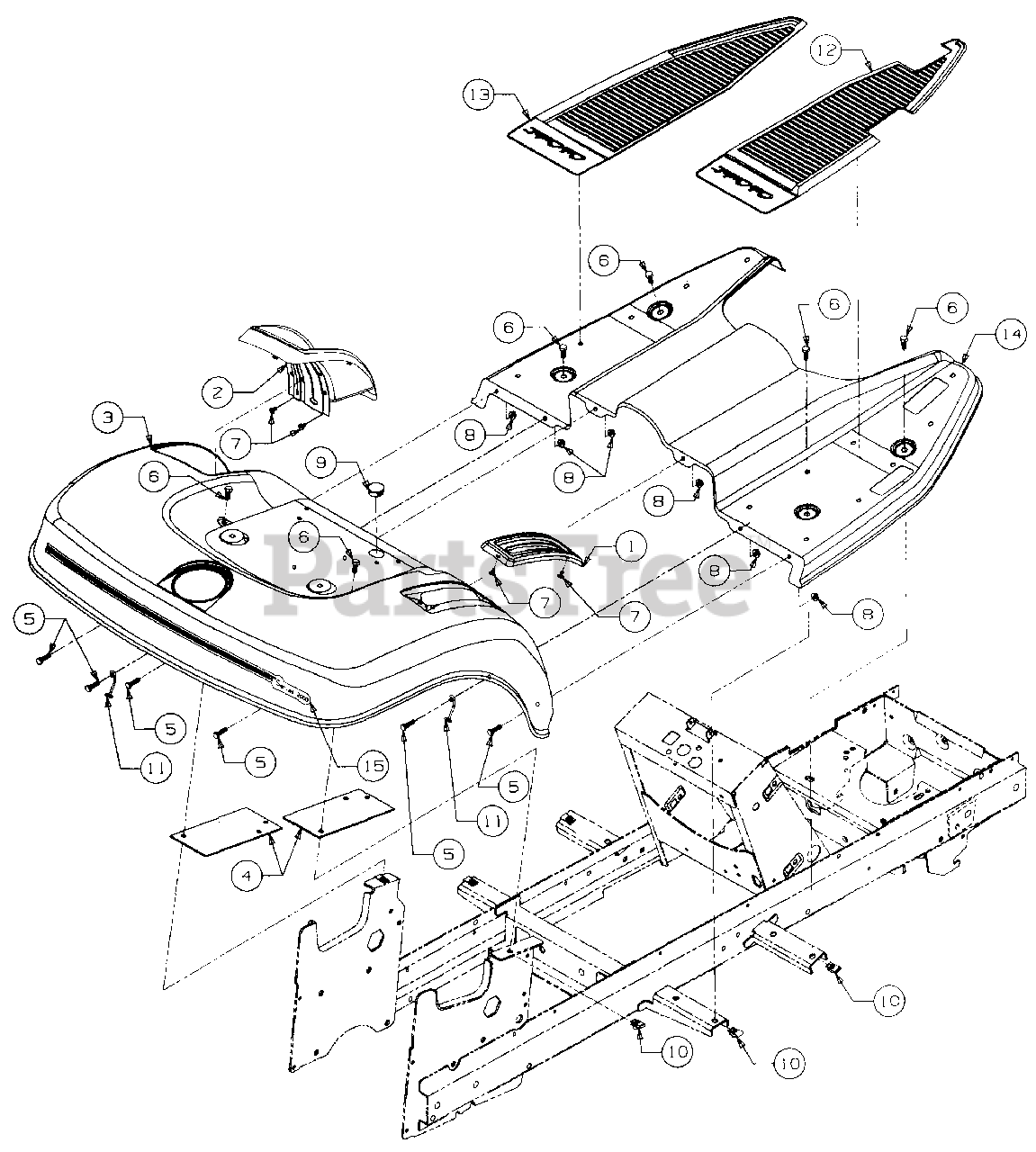

Fender and Running Board Parts Diagram

  • Title

1

Cub Cadet 631-3000

Cover, 6-Speed Shifter

$

$

Not available

2

Cub Cadet 631-3002

Cover, Implement Lift

$64.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 703-2278

Fender

$

$

Currently unavailable

4

Cub Cadet 703-2628B

Plate, Fender Reinforcement

$

$

Currently unavailable

5

Cub Cadet 710-0258

Screw, Hex Cap, 1/4-20 x .62 Lg
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

6

Cub Cadet 710-0601

Screw, Hex Wash Sf Tapp, 5/16-18 x .75 Lg
(Superseded to 710-1260A)

$3.49

$

In Stock, Qty 20+

0

7

Cub Cadet 710-1268

Screw, Hex Tapp, #10 x .38 Lg

$3.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 712-3027

Nut, Hex Flange Lock, 1/4-20
(Superseded to 912-3027)

$3.99

$

In Stock, Qty 20+

0

9

Cub Cadet 723-3042

Bushing, Snap, 7/8 ID

$3.99

$

In Stock, only 1 left!

0

10

Cub Cadet 726-0211

U-Nut, 5/16-18

$3.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 732-3122

Retainer, Hook

$

$

Not available

12

Cub Cadet 735-3046

Pad, RH Foot
(Superseded to 735-3046A)

$49.99

$

In Stock, only 3 left!

0

13

Cub Cadet 735-3047

Pad, LH Foot

$50.99

$

In Stock, only 1 left!

0

14

Cub Cadet 759-3738

Running Board w/Graphic

Variations

Cub Cadet 759-3738-0498

RUNNING BOARD W/GRAPHIC - OLD CUB YELLOW (0498)

$

$

Not available

$

$

Cub Cadet 777-2101

Graphic, Warning

$

$

Not available

15

Cub Cadet 777-1915

Graphic, Rear Fender

$

$

Not available
