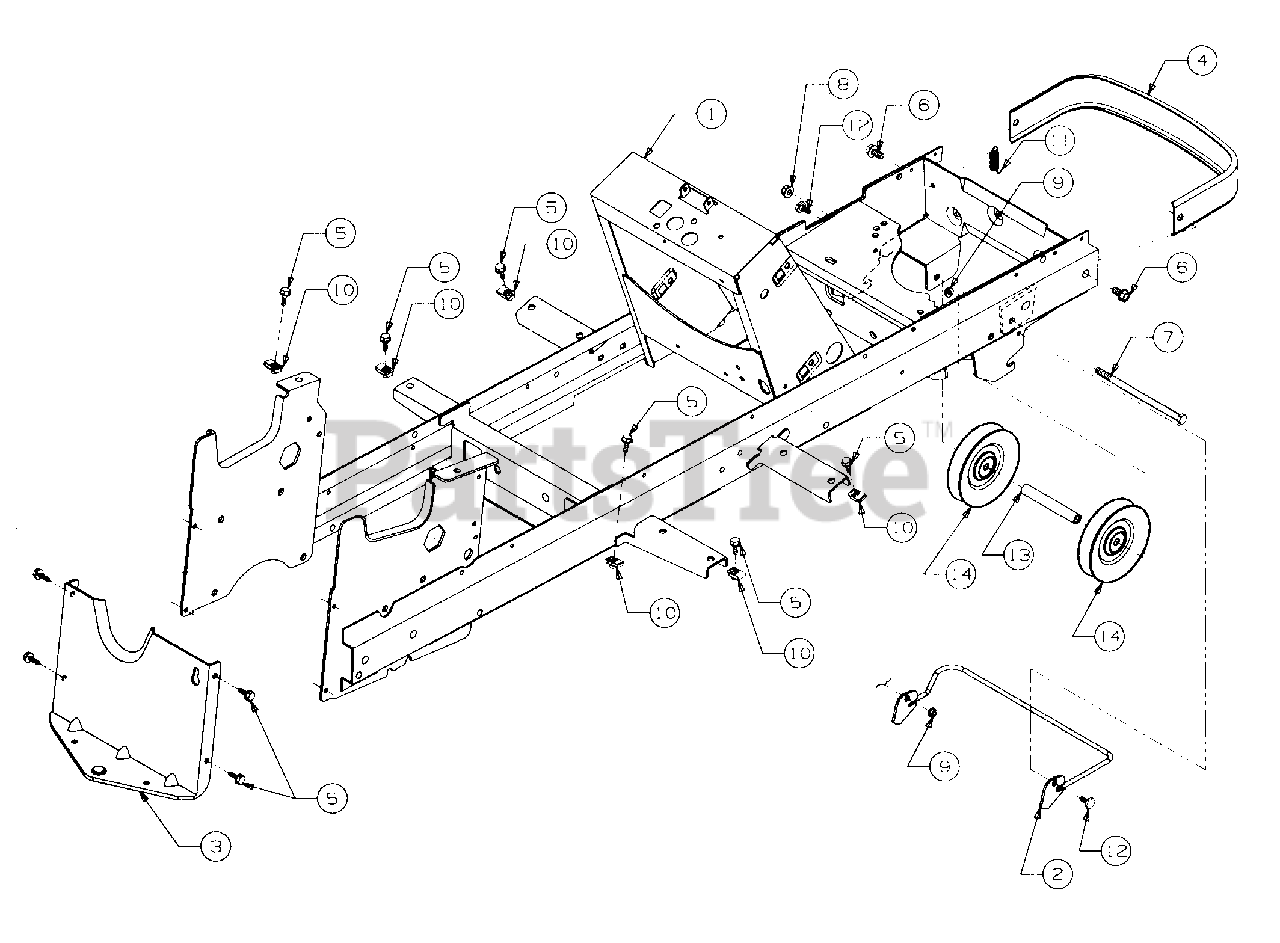

2160 (135-266-100) - Cub Cadet Garden Tractor (SN: 239001 - 326005) Frame and Drawbar Parts Diagram

Garden Tractor

Frame and Drawbar Parts Diagram

  • Title

1

Cub Cadet 603-0104A

Frame

Variations

603-0104A-0498

Cub Cadet 603-0104A-0498

FRAME - OLD CUB YELLOW (0498)

$

$

Not available

$

$

2

Cub Cadet 603-0132

Rod, Quick Attach
(Superseded to 603-04250-0637)

Variations

603-0132-0498

Cub Cadet 603-0132-0498

Latch Assembly, Quick - OLD CUB YELLOW (0498)

$75.99

$

In Stock, only 2 left!

0

603-0132-0716

Cub Cadet 603-0132-0716

Latch Assembly, Quick - CUB YELLOW-99 (0716)

$75.99

$

In Stock, only 2 left!

0

$75.99

$

In Stock, only 2 left!

0

3

Cub Cadet 703-2257

Drawbar

Variations

703-2257-0498

Cub Cadet 703-2257-0498

USE 703-2257-0716 PLATE-TOW - OLD CUB YELLOW (0498)

$155.99

$

Usually ships in 3-6 days

0

703-2257-0716

Cub Cadet 703-2257-0716

PLATE-TOW - CUB YELLOW-99 (0716)

$155.99

$

Usually ships in 3-6 days

0

$144.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 703-2577

Bumper
(Superseded to 703-05626)

Variations

703-2577-0498

Cub Cadet 703-2577-0498

Front Bumper - OLD CUB YELLOW (0498)

$

$

Not available

703-2577-0716

Cub Cadet 703-2577-0716

Front Bumper - CUB YELLOW-99 (0716)

$

$

Not available

$

$

5

Cub Cadet 710-0601

Screw, Hex Wash Sf-Tapp 5/16-18 x .75 Lg
(Superseded to 710-1260A)

$3.99

$

In Stock, Qty 20+

0

6

Cub Cadet 710-0623

Screw, Hex Wash Tapp 3/8-16 x .75 Lg

$4.49

$

In Stock, Qty 12

0

7

Cub Cadet 710-3261

Screw, Hex Cap, 3/8-16 x 7.0 Lg

$14.99

$

In Stock, Qty 15

0

8

Cub Cadet 712-0431

Nut, Hex Flanged Lock, 3/8-16
(Superseded to 912-0431)

$5.49

$

In Stock, Qty 20+

0

9

Cub Cadet 712-3027

Nut, Hex Flange Lock, 1/4-20
(Superseded to 912-3027)

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet 726-0211

U-Nut, 5/16-18

$4.99

$

In Stock, Qty 13

0

11

Cub Cadet 732-3002

Spring, Latch
(Superseded to 932-3002)

$9.99

$

In Stock, Qty 13

0

12

Cub Cadet 738-0255

Bolt, Shoulder
(Superseded to 938-0255)

$5.49

$

In Stock, only 2 left!

0

13

Cub Cadet 750-3114

Spacer, Idler, .407 ID x .62 OD x 4.38 Lg
(Superseded to 750-3114A)

$20.99

$

In Stock, only 1 left!

0

14

Cub Cadet 756-3045

Pulley, Idler
(Superseded to 956-3045A)

$60.99

$

In Stock, Qty 20+

0
