2160 (136-266-100) - Cub Cadet Garden Tractor (SN: 326006 - 389000) Brake And Control Panels Serial No. 359,000 & Below Parts Diagram

Garden Tractor

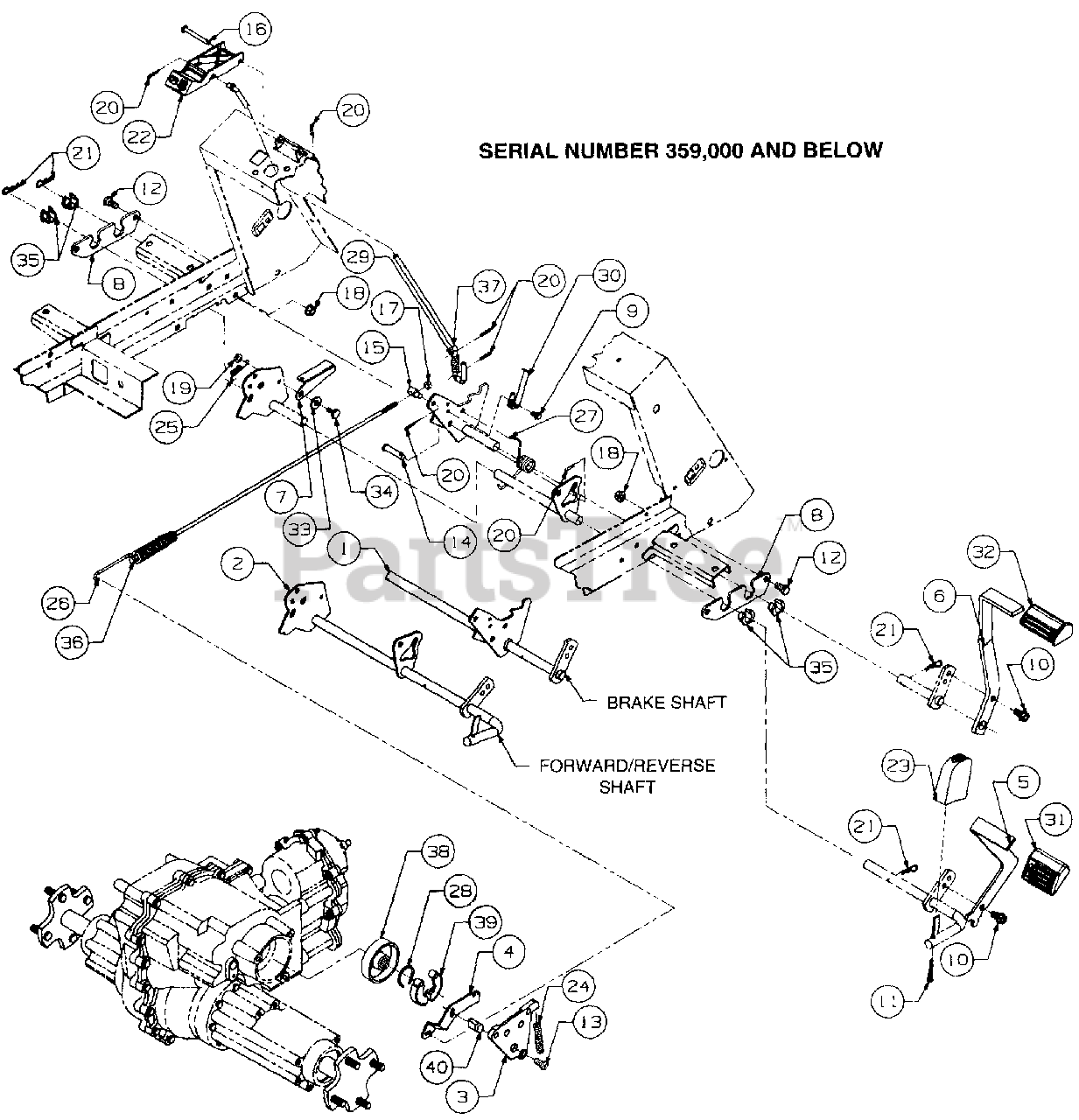

Brake And Control Panels Serial No. 359,000 & Below Parts Diagram

  • Title

1

Cub Cadet 603-0321

Shaft Assy, Brake

$

$

Not available

2

Cub Cadet 603-0322

Shaft Assy, Forward/Reverse

$

$

Not available

3

Cub Cadet 618-3060

Plate, Brake
(Superseded to 918-3060)

$

$

Not available

4

Cub Cadet 703-2191

Arm, Brake

$

$

Not available

5

Cub Cadet 703-2570

Pedal, Forward
(Superseded to 703-2570A-0716)

Note: Code 0498

Variations

Cub Cadet 703-2570-0498

USE 703-2570A-0716 PEDAL-FORW - OLD CUB YELLOW (0498)

$

$

Not available

$

$

6

Cub Cadet 703-2573

Pedal, Brake
(Superseded to 703-2573A-0716)

Note: Code 0498

Variations

Cub Cadet 703-2573-0498

USE 703-2573A-0716 PEDAL-BRAK - OLD CUB YELLOW (0498)

$60.99

$

Usually ships in 3-6 days

0

$60.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 703-2582

Actuator, Reverse Switch
(Superseded to 759-04228)

$

$

Not available

8

Cub Cadet 703-2804

Plate, Bearing Mounting

$14.99

$

In Stock, Qty 6

0

9

Cub Cadet 710-0599

Screw, Hex Wash Tapp, 1/4 x .50 Lg

$3.99

$

In Stock, Qty 20+

0

10

Cub Cadet 710-0623

Screw, Hex Wash TT-Tapp, 3/8-16 x .75 Lg

$3.99

$

In Stock, Qty 10

0

11

Cub Cadet 710-0796

Screw, Truss Mach Tapp, #12 x 1.5

$5.49

$

In Stock, Qty 6

0

12

Cub Cadet 710-3000

Screw, Hex Cap, 3/8-16 x .75 GR5
(Superseded to 710-0216)

$3.99

$

In Stock, Qty 17

0

13

Cub Cadet 710-3262

Screw, Low Hd Cap, 3/8-16 x .75

$

$

Not available

14

Cub Cadet 711-0415

Pin, Clevis, 3/8 OD x 1.62 Lg

$4.49

$

In Stock, Qty 20+

0

15

Cub Cadet 711-0736

Ferrule, Adjustment

$13.99

$

In Stock, only 2 left!

0

16

Cub Cadet 711-3295

Pin, Clevis, 1/4 OD x 2.38 Lg
(Superseded to 911-3295)

$

$

Not available

17

Cub Cadet 712-0271

Nut, Hex Sems, 1/4-20

$4.49

$

In Stock, Qty 20+

0

18

Cub Cadet 712-0431

Nut, Hex Flanged Lock, 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

19

Cub Cadet 712-3027

Nut, Hex Flange Lock, 1/4-20
(Superseded to 912-3027)

$3.99

$

In Stock, Qty 20+

0

20

Cub Cadet 714-0104

Pin, Internal Cotter, 5/16 Dia x 1.12

$3.99

$

In Stock, Qty 20+

0

21

Cub Cadet 714-0145

Pin, Internal Cotter, 3/8 Dia x 1.625

$4.49

$

In Stock, Qty 20+

0

22

Cub Cadet 731-3165

Lever, Park Brake
(Superseded to 759-04158)

$

$

Not available

23

Cub Cadet 731-3167

Pad, Reverse Pedal
(Superseded to 931-3167)

$

$

Not available

24

Cub Cadet 732-0152

Spring, Compression

$4.49

$

Usually ships in 3-6 days

0

25

Cub Cadet 732-0418

Spring, Extension, .38 OD x 2.10 Lg

$9.99

$

In Stock, only 1 left!

0

26

Cub Cadet 732-0463

Spring, Extension, .75 OD x 5.0 Lg
(Superseded to 732-0463A)

$17.99

$

In Stock, only 1 left!

0

27

Cub Cadet 732-0756A

Spring, Torsion
(Superseded to 932-0756A)

$13.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 732-3077

Spring, Brake

$2.99

$

In Stock, only 1 left!

0

29

Cub Cadet 732-3099

Spring, Compression, .5 OD x 2.23

$

$

Not available

30

Cub Cadet 732-3117

Actuator, Neutral Switch

$7.49

$

In Stock, Qty 10

0

31

Cub Cadet 735-3048

Pad, Forward Pedal

$19.99

$

Usually ships in 3-6 days

0

32

Cub Cadet 735-3049

Pad, Brake Pedal
(Superseded to 735-3049A)

$11.99

$

In Stock, Qty 7

0

33

Cub Cadet 736-0185

Washer, Flat, .406 x .75 x .063

$3.49

$

In Stock, Qty 17

0

34

Cub Cadet 738-0255

Bolt, Shoulder, .375 Dia x .181 Lg
(Superseded to 938-0255)

$4.99

$

In Stock, Qty 10

0

35

Cub Cadet 741-3065

Bearing, Hex Flange Split
(Superseded to 741-3065B)

$7.49

$

In Stock, Qty 20+

0

36

Cub Cadet 747-3216

Rod, Brake

$40.99

$

Usually ships in 3-6 days

0

37

Cub Cadet 747-3219

Rod, Park Brake Engagement

$

$

Not available

38

Cub Cadet 761-3019

Drum, Brake

$24.99

$

In Stock, only 1 left!

0

39

Cub Cadet 761-3020

Shoe, Brake
(Superseded to 961-3020)

$

$

Not available

40

Cub Cadet 761-3028

Actuator, Brake Shoe

$

$

Not available
