2160 (136-266-100) - Cub Cadet Garden Tractor (SN: 326006 - 389000) Brake And Control Pedals Serial No. 359,001 & Above Parts Diagram

Garden Tractor

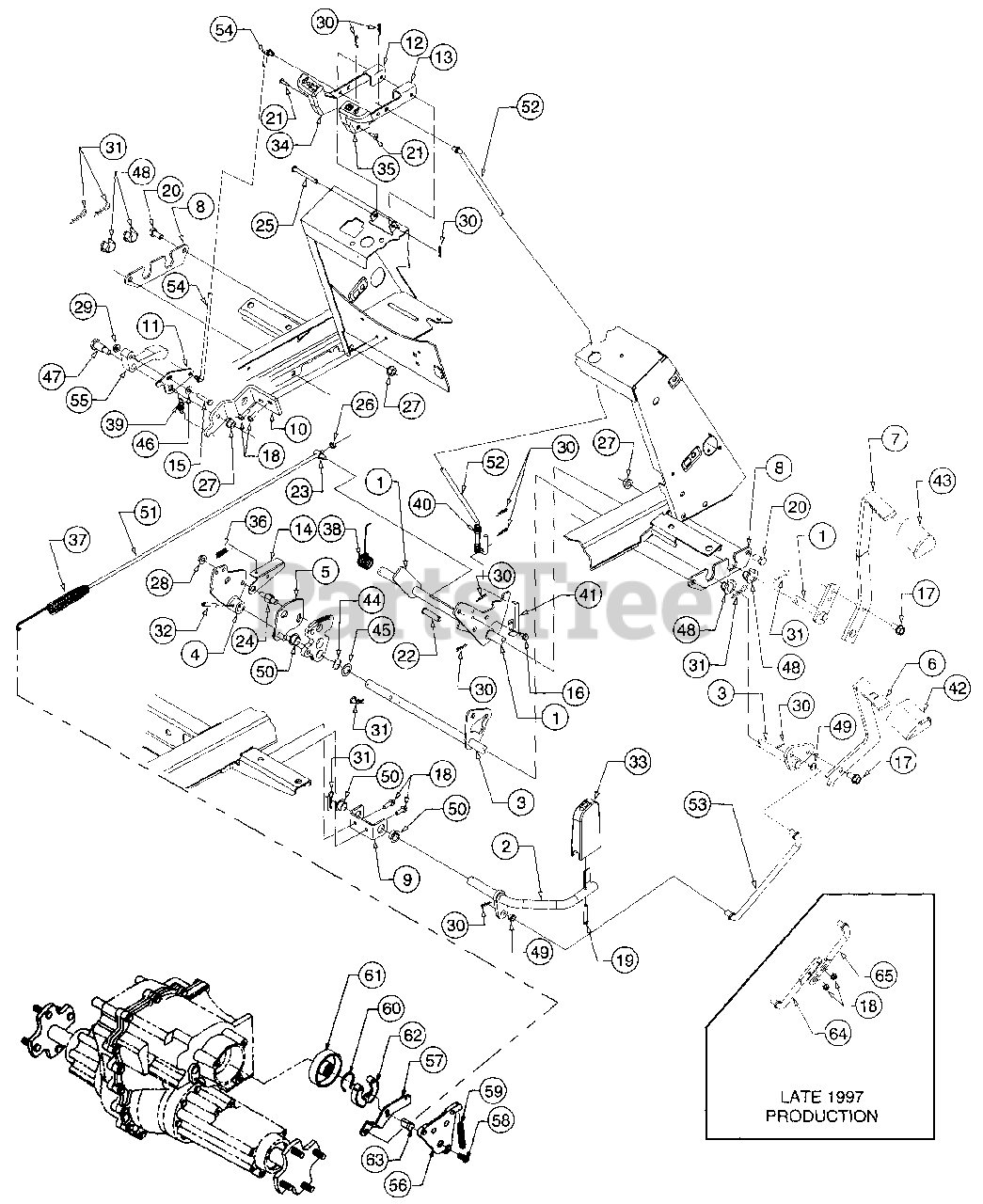

Brake And Control Pedals Serial No. 359,001 & Above Parts Diagram

  • Title

1

Cub Cadet 603-0321A

Shaft Assy, Brake

$

$

Not available

2

Cub Cadet 603-0412

Pedal Assy, Reverse

Variations

Cub Cadet 603-0412-0637

PEDAL-REVERSE - POWDER BLACK (0637)

$

$

Not available

$

$

3

Cub Cadet 603-0413

Shaft Assy, Forward/Reverse

Note: (Mfg Date I308 and Before)

$

$

Not available

Cub Cadet 603-0697

Shaft Assy, Forward/Reverse

Note: (Mfg Date J018 and After)

$

$

Not available

4

Cub Cadet 603-0419

Cam Assy, Control

$

$

Not available

5

Cub Cadet 603-0421

Plate Assy, Disengagement
(Superseded to 603-0421A)

$

$

Not available

6

Cub Cadet 703-2570A-0498

Pedal, Forward
(Superseded to 703-2570A-0716)

$

$

Not available

7

Cub Cadet 703-2573A-0498

Pedal, Brake
(Superseded to 703-2573A-0716)

$60.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 703-2804

Plate, Bearing Mounting

$14.99

$

In Stock, Qty 6

0

9

Cub Cadet 703-2938

Bracket, Reverse Pivot

Variations

Cub Cadet 703-2938-0637

Reverse Pivot Bracket - POWDER BLACK (0637)

$36.99

$

In Stock, only 1 left!

0

$36.99

$

In Stock, only 1 left!

0

10

Cub Cadet 703-2941

Bracket, Cruise

$

$

Not available

11

Cub Cadet 703-2942

Plate, Rod Adjustment

$

$

Not available

12

Cub Cadet 703-2962

Lever, Cruise

Variations

Cub Cadet 703-2962-0637

LEVER-CRUISE - POWDER BLACK (0637)

$

$

Not available

$

$

13

Cub Cadet 703-2963

Lever, Brake Lock
(Superseded to 703-2963-0637)

Variations

Cub Cadet 703-2963-0637

LEVER-BRAKE LOCK - POWDER BLACK (0637)

$17.99

$

Usually ships in 3-6 days

0

$17.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 703-2965

Actuator, Reverse Switch
(Superseded to 703-2965-0637)

Variations

Cub Cadet 703-2965-0637

ACTUATOR-REV SWITCH - POWDER BLACK (0637)

$14.99

$

Usually ships in 3-6 days

0

$14.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 710-0106

Screw, Hex Cap, 1/4-20 x 1.25

$3.99

$

In Stock, only 1 left!

0

16

Cub Cadet 710-0599

Screw, Hex Wshr Tap 1/4-20 x .5

$3.99

$

In Stock, Qty 20+

0

17

Cub Cadet 710-0623

Screw, Hex Wshr Tap 3/8-16 x .75

$3.99

$

In Stock, Qty 10

0

18

Cub Cadet 710-0642

Screw, Hex Wshr Tap 1/4-20 x .75

$4.49

$

In Stock, Qty 20+

0

19

Cub Cadet 710-0796

Screw, Truss Mach, #12 x 1.5

$5.49

$

In Stock, Qty 6

0

20

Cub Cadet 710-0216

Screw, Hex Cap, 3/8-16 x .75 GR5

$3.99

$

In Stock, Qty 17

0

21

Cub Cadet 710-3009

Screw, Phil Hd Pan, #10-24 x .75

$6.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 711-0415

Pin, Clevis, 3/8 x 1.62

$4.49

$

In Stock, Qty 20+

0

23

Cub Cadet 711-0736

Ferrule, Adjustment, 1/4-20 Thrd

$13.99

$

In Stock, only 2 left!

0

24

Cub Cadet 711-1138

Stud, Actuator

$

$

Not available

25

Cub Cadet 711-3295

Pin, Clevis, .25 x 2.38 Lg
(Superseded to 911-3295)

$

$

Not available

26

Cub Cadet 712-0271

Nut, Hex Sems, 1/4-20

$4.49

$

In Stock, Qty 20+

0

27

Cub Cadet 712-0431

Nut, Hex Flange Lock, 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

28

Cub Cadet 712-3004A

Nut, Hex Flange Lock, 5/16-18

$3.49

$

In Stock, Qty 20+

0

29

Cub Cadet 712-3027

Nut, Hex Flange Lock, 1/4-20
(Superseded to 912-3027)

$3.99

$

In Stock, Qty 20+

0

30

Cub Cadet 714-0104

Pin, Int Cotter, 5/16 Dia x 1.12 Lg

$3.99

$

In Stock, Qty 20+

0

31

Cub Cadet 714-0145

Pin, Int Cotter, 3/8 Dia x 1.62

$4.49

$

In Stock, Qty 20+

0

32

Cub Cadet 715-0114

Pin, Spiral Spring, 1/4 x 1.5

$8.49

$

In Stock, Qty 9

0

33

Cub Cadet 731-3205

Pedal, Reverse
(Superseded to 931-3205)

$20.99

$

In Stock, Qty 8

0

34

Cub Cadet 731-3206

Knob, Cruise

$

$

Not available

35

Cub Cadet 731-3207

Knob, Brake Lock

$

$

Not available

36

Cub Cadet 732-0418

Spring, Extension. .38 OD x 2.1

$9.99

$

In Stock, only 1 left!

0

37

Cub Cadet 732-0463

Spring, Extension
(Superseded to 732-0463A)

$17.99

$

In Stock, only 1 left!

0

38

Cub Cadet 732-0756A

Spring, Torsion
(Superseded to 932-0756A)

$13.99

$

Usually ships in 3-6 days

0

39

Cub Cadet 732-0824

Spring, Ext, .437 OD x 1.32
(Superseded to 932-0824)

$

$

Not available

40

Cub Cadet 732-3099

Spring, Compression, .50 x 2.23

$

$

Not available

41

Cub Cadet 732-3117

Spring, Switch Actuator

$7.49

$

In Stock, Qty 10

0

42

Cub Cadet 735-3048

Pad, Forward Foot Control

$19.99

$

Usually ships in 3-6 days

0

43

Cub Cadet 735-3049

Pad, Brake Foot
(Superseded to 735-3049A)

$11.99

$

In Stock, Qty 7

0

44

Cub Cadet 736-0174

Washer, Wave, .625 x .885 x .015

$6.49

$

In Stock, only 2 left!

0

45

Cub Cadet 736-0349

Washer, Flat, .635 x 1.0 x .020

$3.99

$

In Stock, Qty 20+

0

46

Cub Cadet 736-0463

Washer, Flat, 1/4 x .63 x .051

$4.49

$

In Stock, only 2 left!

0

47

Cub Cadet 738-0145

Shoulder Bolt, .50 OD x .840

$6.49

$

Usually ships in 3-6 days

0

48

Cub Cadet 741-3065A

Bearing, Hex Flange Split
(Superseded to 741-3065B)

$7.49

$

In Stock, Qty 20+

0

49

Cub Cadet 741-3073

Bearing, Flange, .375 x .58 x .25
(Superseded to 941-3073)

$4.99

$

In Stock, Qty 20+

0

50

Cub Cadet 741-3074

Bearing, Flange, .626 x .93 x .344

$4.49

$

In Stock, Qty 20+

0

51

Cub Cadet 747-3216

Rod, Brake

$40.99

$

Usually ships in 3-6 days

0

52

Cub Cadet 747-3219

Rod, Parking Brake

$

$

Not available

53

Cub Cadet 747-3299

Rod, Connecting

Note: (Mfg Date E067 and Before; Replace by Ordering 759-3935)

$

$

Not available

54

Cub Cadet 747-3307

Rod, Cruise

$

$

Not available

55

Cub Cadet 748-3060

Latch, Cruise

$

$

Not available

56

Cub Cadet 618-3060

Plate, Brake
(Superseded to 918-3060)

$

$

Not available

57

Cub Cadet 703-2191

Arm, Brake

$

$

Not available

58

Cub Cadet 710-3262

Screw, Low Hd Cap, 3/8-16 x .75

$

$

Not available

59

Cub Cadet 732-0152

Spring, Compression

$4.49

$

Usually ships in 3-6 days

0

60

Cub Cadet 732-3077

Spring, Brake

$2.99

$

In Stock, only 1 left!

0

61

Cub Cadet 761-3019

Drum, Brake

$24.99

$

In Stock, only 1 left!

0

62

Cub Cadet 761-3020

Shoe, Brake
(Superseded to 961-3020)

$

$

Not available

63

Cub Cadet 761-3028

Actuator, Brake Shoe

$

$

Not available

64

Cub Cadet 747-3341

Rod, Rear Connecting
(Superseded to 747-3341A)

Note: (Mfg Date E077 to I308)

$23.99

$

Usually ships in 3-6 days

0

Cub Cadet 747-3341A

Rod, Rear Connecting

Note: (Mfg Date J018 and After)

$23.99

$

Usually ships in 3-6 days

0

65

Cub Cadet 747-3344

Rod, Front Connecting
(Superseded to 759-3935)

Note: (Mfg Date E077 to J018; Replace by Ordering 759-3935)

$

$

Not available

Cub Cadet 747-3383

Rod, Front Connecting

Note: (Mfg Date J018 and After)

$37.99

$

Usually ships in 3-6 days

0
