2160 (136-266-100) - Cub Cadet Garden Tractor (SN: 326006 - 389000) Clutch And Neutral Linkage Parts Diagram

Garden Tractor

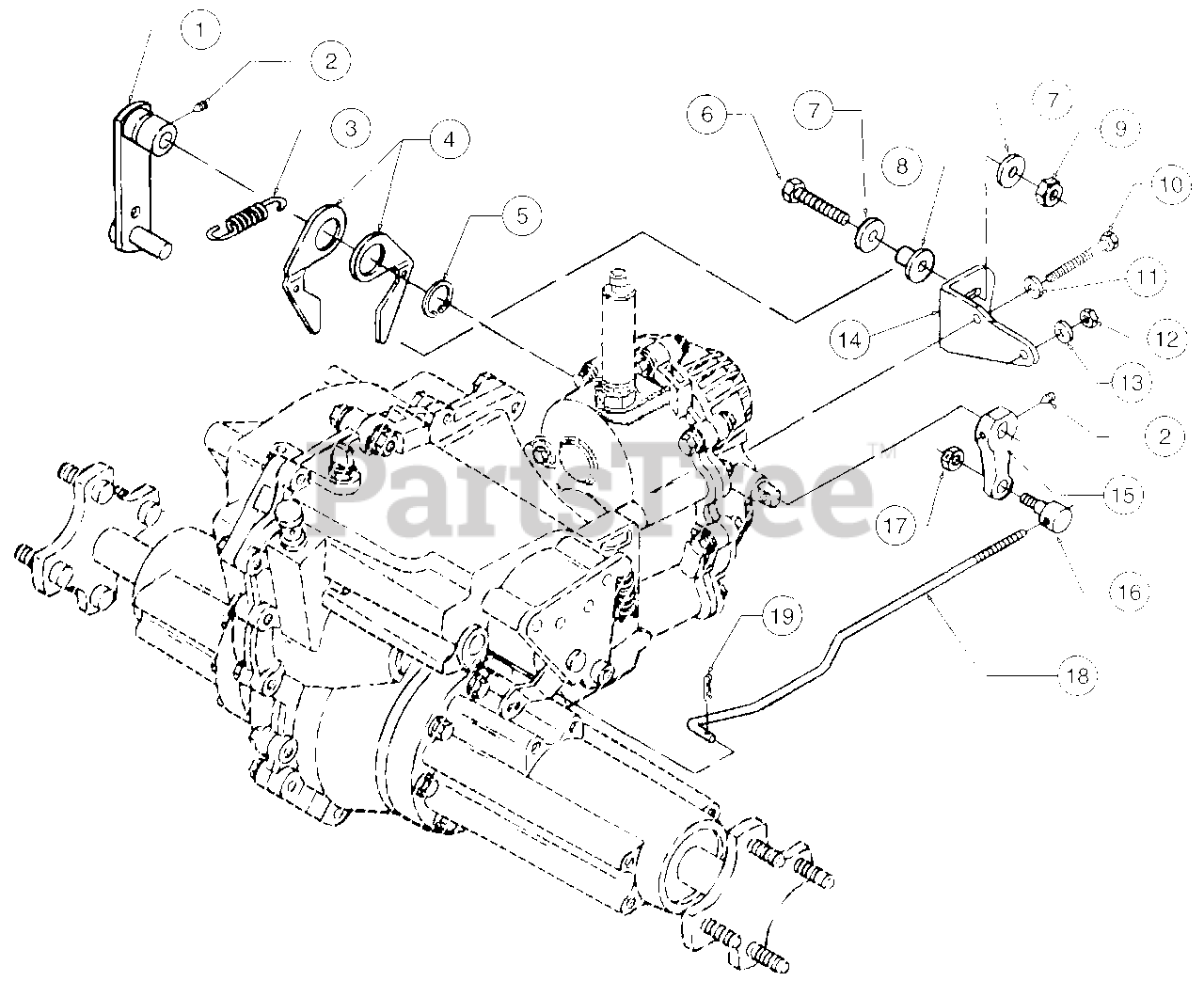

Clutch And Neutral Linkage Parts Diagram

  • Title

1

Cub Cadet 603-0160

Arm Assy, Control

$

$

Not available

2

Cub Cadet 710-3242

Screw w/Patch, Set

$

$

Not available

3

Cub Cadet 732-3125

Spring, Extension, .477 OD x 1.68 Lg

$

$

Not available

4

Cub Cadet 703-2441

Arm, Neutral

$7.49

$

In Stock, only 2 left!

0

5

Cub Cadet 716-0111

Ring, Snap, .875 Shaft

$6.49

$

In Stock, Qty 11

0

6

Cub Cadet 710-0106

Screw, Hex Cap, 1/4-20 x 1.25

$3.99

$

In Stock, only 1 left!

0

7

Cub Cadet 736-0176

Washer, Flat, .25 x .93 x .120

$3.99

$

In Stock, Qty 20+

0

8

Cub Cadet 750-0918

Spacer, Centering

$

$

Not available

9

Cub Cadet 712-0324

Nut, Hex Top Lock, 1/4-20

$3.49

$

In Stock, Qty 20+

0

10

Cub Cadet 710-0190

Screw, Hex Cap, 5/16-18 x 4.0

$7.49

$

Usually ships in 3-6 days

0

11

Cub Cadet 736-0119

Washer, Lock, 5/16
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

12

Cub Cadet 712-0291

Nut, Hex Center Lock, 1/4-20

$4.49

$

In Stock, Qty 9

0

13

Cub Cadet 736-0463

Washer, Flat, .25 x .62 x .052

$4.49

$

In Stock, only 2 left!

0

14

Cub Cadet 703-2439

Bracket, 6-Speed Neutral

$

$

Not available

15

Cub Cadet 718-3015

Arm, Clutch/Brake

$

$

Not available

16

Cub Cadet 711-3384

Ferrule, 5/16-24 Thrd

$

$

Not available

17

Cub Cadet 712-0423

Nut, Hex Center Lock Jam, 5/16-24

$

$

Not available

18

Cub Cadet 747-3224

Rod, Shift Interlock

$

$

Not available

19

Cub Cadet 714-0104

Pin, Internal Cotter

$3.99

$

In Stock, Qty 20+

0
