216112-0110-E1 - Briggs & Stratton Horizontal Engine Air Cleaner, Exhaust System Parts Diagram

Horizontal Engine

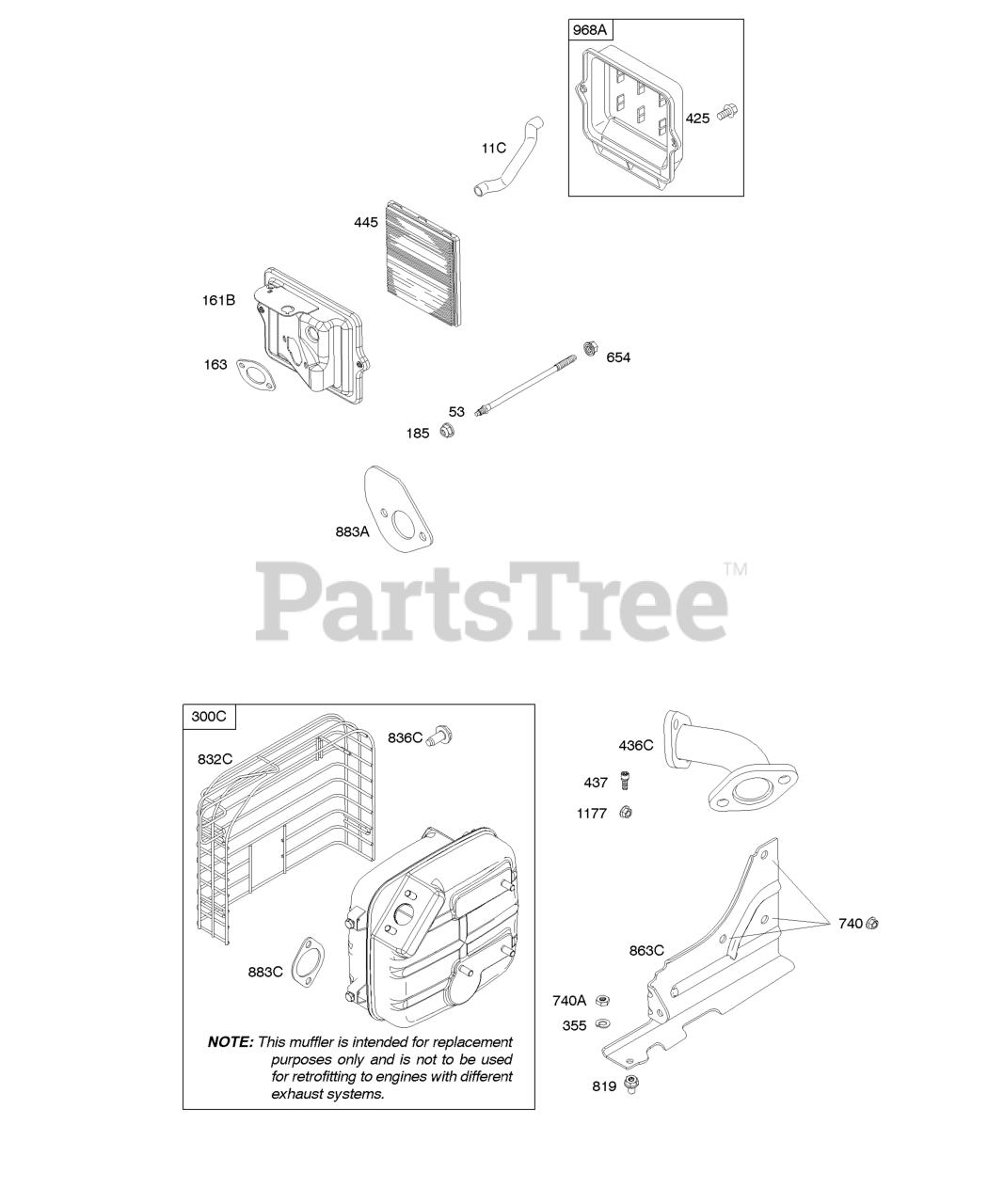

Air Cleaner, Exhaust System Parts Diagram

  • Title

11C

Briggs & Stratton 696796

Tube-Breather

$9.99

$

In Stock, only 1 left!

0

53

Briggs & Stratton 694869

Stud

Note: (Carburetor)

$

$

Not available

161B

Briggs & Stratton 699960

Base-Air Cleaner

Note: (Metal)

$

$

Not available

163

Briggs & Stratton 692277

Gasket-Air Cleaner

$7.49

$

In Stock, Qty 14

0

185

Briggs & Stratton 690958

NUT

Note: (Air Cleaner Base)

$3.49

$

In Stock, Qty 8

0

300C

Briggs & Stratton 793701

Muffler

$103.99

$

Usually ships in 2-12 days

0

355

Briggs & Stratton 691075

WASHER
(Superseded to 5025170SM)

Note: (Muffler Bracket)

$4.49

$

In Stock, only 1 left!

0

425

Briggs & Stratton 694515

Screw

Note: (Air Cleaner Cover)

$6.49

$

In Stock, Qty 5

0

436C

Briggs & Stratton 792374

Manifold-Exhaust

$50.99

$

Usually ships in 2-12 days

0

437

Briggs & Stratton 696705

Screw

Note: (Exhaust Manifold)

$

$

Not available

445

Briggs & Stratton 491588S

FILTER, A/C Cartridge

$7.49

$

In Stock, Qty 20+

0

654

Briggs & Stratton 690958

NUT

Note: (Carburetor)

$3.49

$

In Stock, Qty 8

0

740

Briggs & Stratton 710090

Nut

Note: (Muffler Bracket)

$3.99

$

Usually ships in 2-12 days

0

740A

Briggs & Stratton 793859

Nut

Note: (Muffler Bracket)

$3.49

$

Usually ships in 2-12 days

0

819

Briggs & Stratton 690352

Screw

Note: (Muffler Bracket)

$7.49

$

In Stock, only 1 left!

0

832C

Briggs & Stratton 792380

Guard-Muffler

$91.99

$

Usually ships in 2-12 days

0

836C

Briggs & Stratton 710023

Screw

Note: (Muffler Guard)

$4.49

$

In Stock, Qty 13

0

863C

Briggs & Stratton 793700

Bracket-Muffler

$79.99

$

Usually ships in 2-12 days

0

883A

Briggs & Stratton 697255

Gasket-Exhaust
(Superseded to 794818)

$8.99

$

In Stock, only 2 left!

0

883C

Briggs & Stratton 710250

Gasket-Exhaust

$8.99

$

In Stock, only 4 left!

0

968A

Briggs & Stratton 692321

Cover-Air Cleaner
(Superseded to 791082)

$22.99

$

In Stock, only 1 left!

0

1177

Briggs & Stratton 710090

Nut

Note: (Muffler)

$3.99

$

Usually ships in 2-12 days

0
