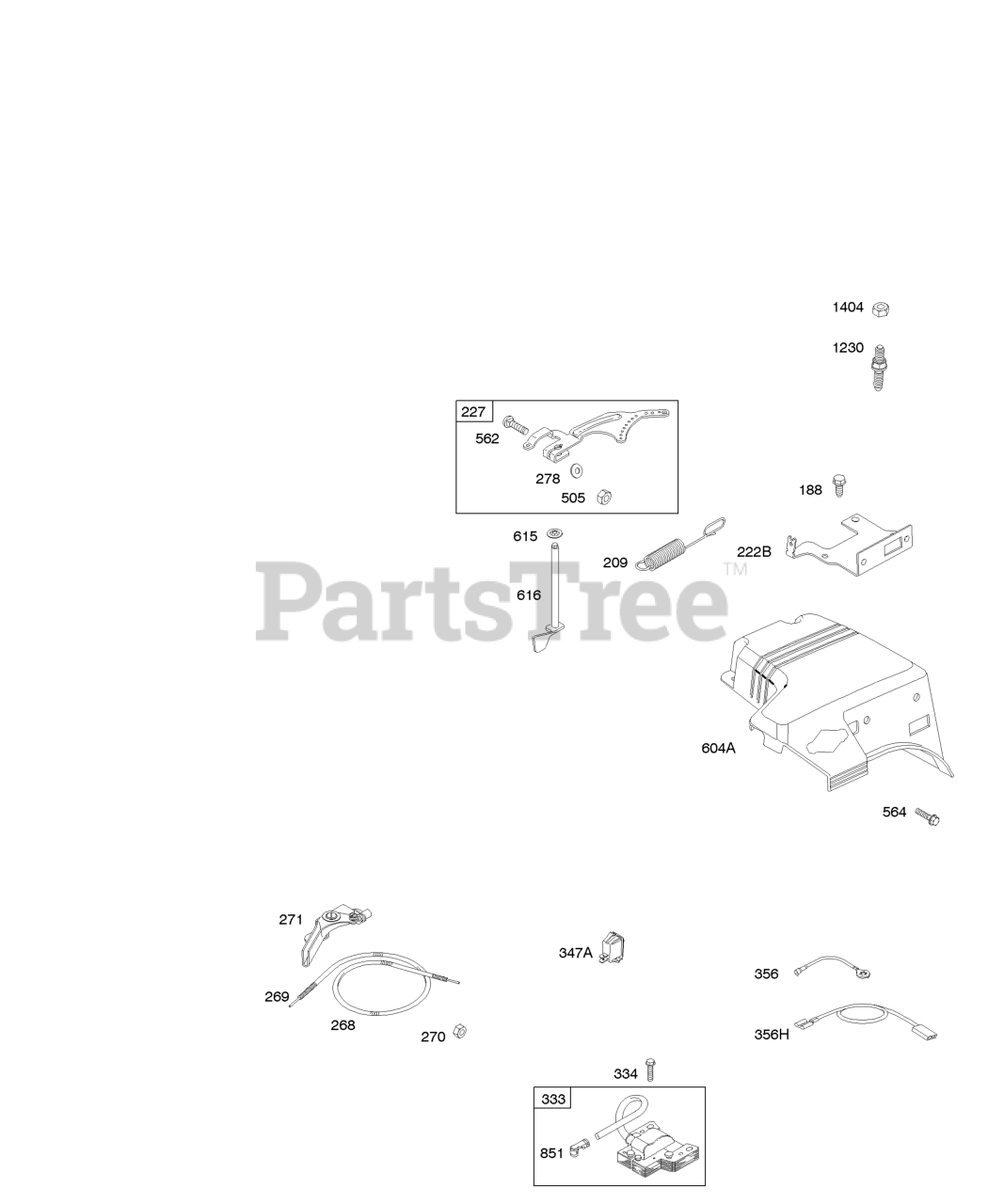

216112-0110-E1 - Briggs & Stratton Horizontal Engine Controls, Governor Spring, Ignition Parts Diagram

Horizontal Engine

Controls, Governor Spring, Ignition Parts Diagram

  • Title
188

Briggs & Stratton 690877

Screw

Note: (Control Bracket)

$3.99

$

In Stock, Qty 5

0

209

Briggs & Stratton 694867

Spring-Governor

$

$

Not available

222B

Briggs & Stratton 791753

Bracket-Control
(Superseded to 794804)

$36.99

$

Usually ships in 2-12 days

0

227

Briggs & Stratton 694864

Lever-Governor Control

$16.99

$

Usually ships in 2-12 days

0

268

Briggs & Stratton 691025

CASING, Control Wire

Note: (Cut To Required Length)

$

$

Not available

269

Briggs & Stratton 691026

WIRE, Control
(Superseded to 26634)

Note: (Cut To Required Length)

$

$

Not available

270

Briggs & Stratton 691027

NUT

Note: (Control Wire Casing)

$13.99

$

In Stock, only 2 left!

0

271

Briggs & Stratton 691028

Lever-Control

$45.99

$

Usually ships in 2-12 days

0

278

Briggs & Stratton 792008

Washer

Note: (Governor Control Lever)

$8.49

$

Usually ships in 2-12 days

0

333

Briggs & Stratton 492341

Armature-Magneto
(Superseded to 591459)

$53.99

$

In Stock, Qty 20+

0

334

Briggs & Stratton 691061

SCREW

Note: (Magneto Armature)

$3.49

$

In Stock, Qty 20+

0

347A

Briggs & Stratton 698338

Switch-Rocker
(Superseded to 795333)

$13.99

$

In Stock, only 1 left!

0

356

Briggs & Stratton 692603

Wire-Stop
(Superseded to 695630)

$7.99

$

Usually ships in 2-12 days

0

356H

$5.49

$

In Stock, only 1 left!

0

505

Briggs & Stratton 691251

NUT

Note: (Governor Control Lever)

$3.49

$

In Stock, Qty 11

0

562

Briggs & Stratton 793216

Bolt

Note: (Governor Control Lever)

$6.49

$

Usually ships in 2-12 days

0

564

Briggs & Stratton 692577

Screw

Note: (Control Cover)

$3.99

$

Usually ships in 2-12 days

0

604A

Briggs & Stratton 791752

Cover-Control

$41.99

$

In Stock, only 1 left!

0

615

Briggs & Stratton 694676

Retainer-Governor Shaft

Note: (Governor Gear)

$4.99

$

In Stock, only 1 left!

0

616

Briggs & Stratton 694675

Crank-Governor
(Superseded to 795758)

$15.99

$

In Stock, only 1 left!

0

851

Briggs & Stratton 692424

Terminal-Spark Plug

$5.99

$

In Stock, only 2 left!

0

1230

Briggs & Stratton 791754

Stud

Note: (Control Bracket)

$4.99

$

Usually ships in 2-12 days

0

1404

Briggs & Stratton 696757

Nut

Note: (Control Cover)

$3.99

$

Usually ships in 2-12 days

0
