21625 - Toro 21" 60V Walk-Behind Mower (SN: 400000000 - 999999999) Handle Assembly Parts Diagram

21" 60V Walk-Behind Mower

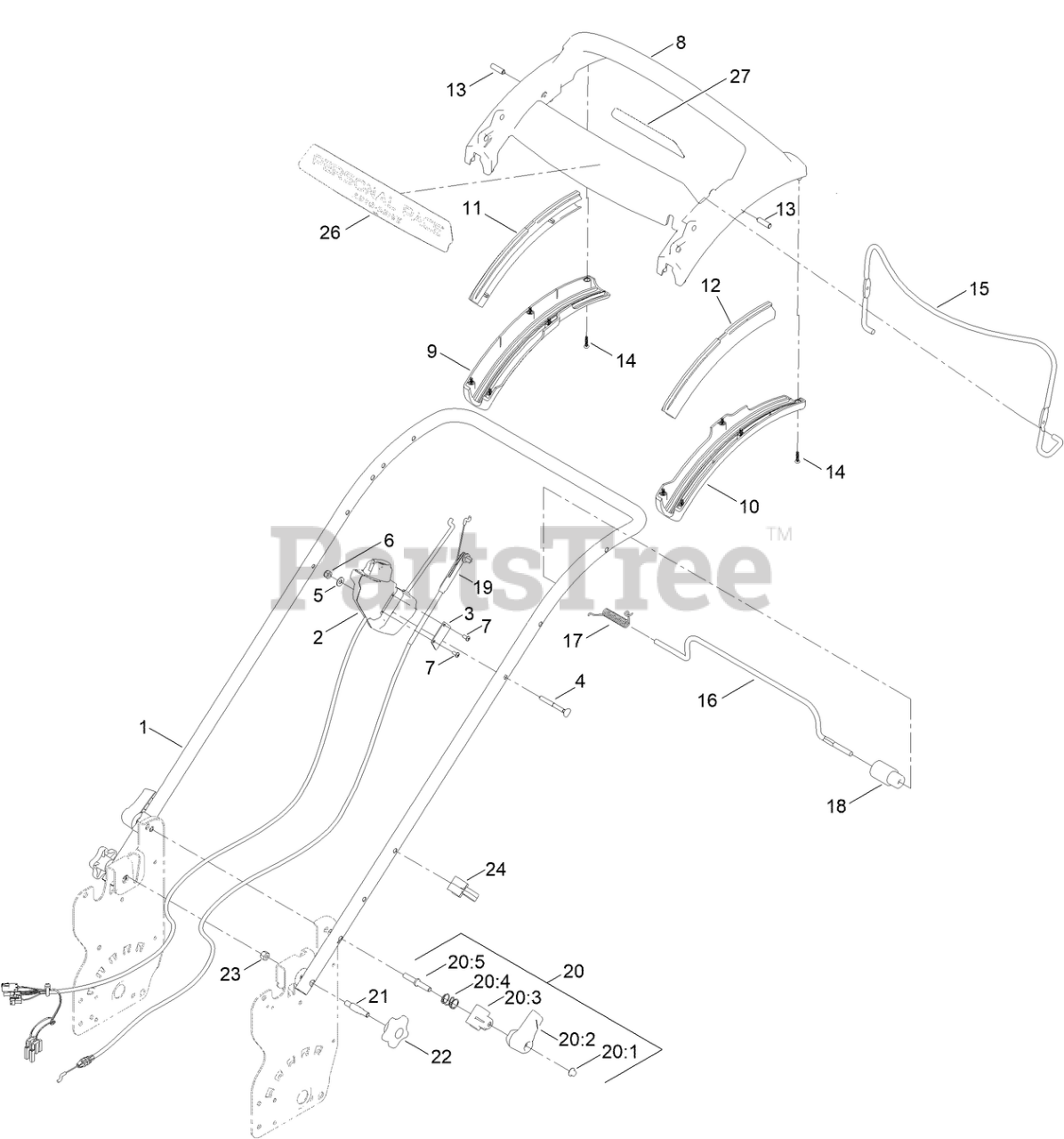

Handle Assembly Parts Diagram

  • Title

1

Toro 144-6516-05

HANDLE-CURVED

$71.99

$

In Stock, only 4 left!

0

2

Toro 161-1122

ASM-SWITCH, EPP

$92.99

$

Usually ships in 3-6 days

0

3

Toro 161-1127-05

TAB-RETENTION, BAIL

$

$

Currently unavailable

4

Toro 92-2270

SCREW-HANDLE

$9.49

$

In Stock, only 2 left!

0

5

Toro 3256-1

WASHER-FLAT

$0.99

$

In Stock, Qty 17

0

6

Toro 3296-73

NUT-LOCK, NI

$5.49

$

In Stock, Qty 20+

0

7

Toro 105-9437

SCREW-PPH

$0.99

$

In Stock, only 2 left!

0

8

Toro 139-6569

HANDLE-PERSONAL PACE, CURVED

$35.99

$

In Stock, Qty 5

0

9

Toro 139-6567

BOTTOM-HANDLE, RH

$4.49

$

In Stock, only 1 left!

0

10

Toro 139-6568

BOTTOM-HANDLE, LH

$4.49

$

In Stock, Qty 11

0

11

Toro 161-1105

GUIDE-CURVED, RH (EPP)

$

$

Currently unavailable

12

Toro 161-1106

GUIDE-CURVED, LH (EPP)

$

$

Currently unavailable

13

Toro 139-6577

PIN-HANDLE, PP

$1.49

$

In Stock, Qty 6

0

14

Toro 94-4496

SCREW-PPH

$1.49

$

In Stock, Qty 17

0

15

Toro 145-5879-03

BAIL-BRAKE

$15.99

$

In Stock, Qty 9

0

16

Toro 139-5464

ROD-CONTROL, TRACTION

$7.99

$

In Stock, only 1 left!

0

17

Toro 140-4194

SPRING-TORSION

$1.99

$

Usually ships in 3-6 days

0

18

Toro 147-4247

LEVER-TRACTION, PM

$

$

Currently unavailable

19

Toro 139-6594

CABLE-BRAKE, PP BS

$18.99

$

In Stock, Qty 20+

0

20

Toro 138-3249

QUICK RELEASE ASM

$12.99

$

In Stock, only 4 left!

0

20:1

Toro 140-4157

NUT-PUSH

$1.99

$

Usually ships in 3-6 days

0

20:2

Toro 138-3248

LEVER-RELEASE
(Superseded to 138-3249)

$12.99

$

In Stock, only 4 left!

0

20:3

Toro 138-3253

ANCHOR-SPRING
(Superseded to 138-3249)

$12.99

$

In Stock, only 4 left!

0

20:4

Toro 115-2858

SPRING-COMPRESSION

$3.99

$

Usually ships in 3-6 days

0

20:5

Toro 140-4158

ROD-RELEASE

$1.49

$

Usually ships in 3-6 days

0

21

Toro 139-6588

BOLT-SHOULDER, HANDLE

$1.99

$

In Stock, Qty 5

0

22

Toro 117-5976

KNOB-HANDLE

$2.99

$

In Stock, Qty 20+

0

23

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

24

Toro 114-7988

GUIDE-CABLE

$2.99

$

In Stock, Qty 20+

0

26

Toro 145-5601

DECAL-HANDLE, PP

$8.49

$

Usually ships in 3-6 days

0

27

Toro 161-1133

DECAL-EPP

$

$

Currently unavailable
