2164 (13A-264G100) - Cub Cadet Garden Tractor Bulkhead, Dash Panel & Engine Controls Parts Diagram

Garden Tractor

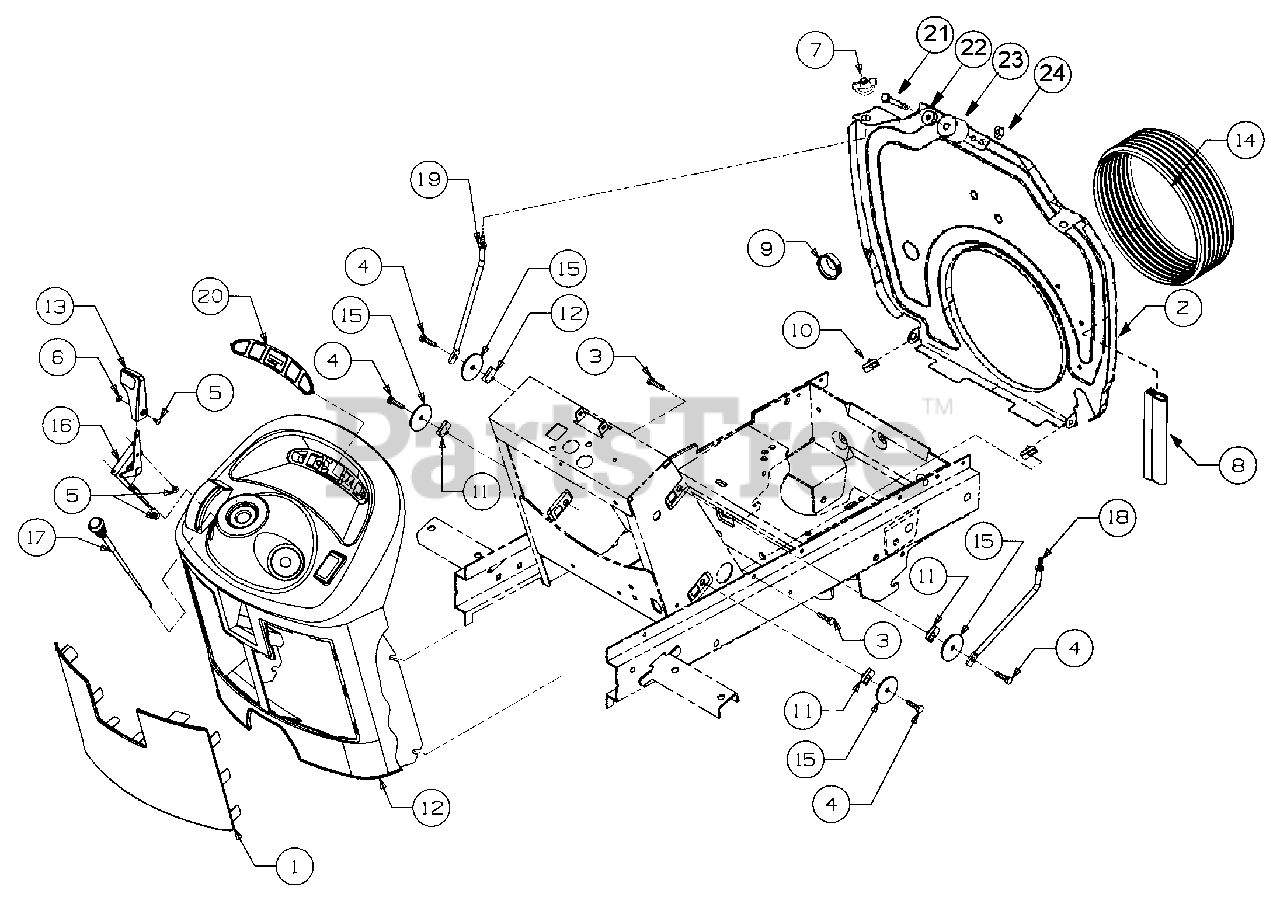

Bulkhead, Dash Panel & Engine Controls Parts Diagram

  • Title

1

Cub Cadet 703-2557

Screen, Intake Dash
(Superseded to 703-2557-0637)

Variations

703-2557-0637

Cub Cadet 703-2557-0637

Screen Intake - POWDER BLACK (0637)

$86.99

$

In Stock, only 2 left!

0

$86.99

$

In Stock, only 2 left!

0

2

Cub Cadet 703-3108

Bulkhead, Lower
(Superseded to 703-3108C-0637)

Variations

703-3108-0637

Cub Cadet 703-3108-0637

USE 703-3108C-0637 BULKHEAD-L - POWDER BLACK (0637)

$

$

Not available

$

$

3

Cub Cadet 710-0751

Screw, Hex Cap, 1/4-20 x .625

$4.49

$

In Stock, Qty 20+

0

4

Cub Cadet 710-0597

Screw, Hex Cap, 1/4-20 x 1.0

$4.49

$

Usually ships in 3-6 days

0

5

Cub Cadet 710-3217

Screw, Cross Rec Truss Hd, #8-32 x

$7.49

$

In Stock, only 2 left!

0

6

Cub Cadet 712-0142

Nut, #8-32

$4.99

$

In Stock, only 3 left!

0

7

Cub Cadet 712-0397

Nut, Wing w/Bell Washer 1/4-20
(Superseded to 712-0397A)

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 720-3024

Seal, Push On Trim

$

$

Not available

9

Cub Cadet 723-3042

Bushing, Snap, 7/8 ID

$4.49

$

In Stock, only 1 left!

0

10

Cub Cadet 726-3048

Nut, U-Type Speed, 1/4-20

$

$

Not available

11

Cub Cadet 726-3054

Nut, U-Clip, 1/4-20

$4.99

$

In Stock, only 2 left!

0

12

Cub Cadet 731-3137A

Panel, Dash

$

$

Not available

Cub Cadet 777-4317

Graphic, Ignition Switch
(Superseded to 777I20306)

$

$

Not available

13

Cub Cadet 731-3161

Knob, Throttle
(Superseded to 931-3161A)

$20.99

$

In Stock, only 2 left!

0

14

Cub Cadet 731-3166

Boot, Intake

$

$

Not available

15

Cub Cadet 736-3128

Washer, Flat, .285 x 1.75 x .10

$11.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 746-3035

Control, Throttle

$

$

Not available

17

Cub Cadet 746-3051

Control, Choke
(Superseded to 946-3051)

$52.99

$

In Stock, only 2 left!

0

18

Cub Cadet 747-3226

Rod, RH Mounting

$

$

Not available

19

Cub Cadet 747-3227

Rod, LH Mounting

$

$

Not available

20

Cub Cadet 777-4267

Label, Dash
(Superseded to 777I20312)

$

$

Not available

21

Cub Cadet 710-0136

Screw, Hex Cap,1/4-20 x 1.75 GR5

$4.49

$

In Stock, Qty 13

0

22

Cub Cadet 736-0342

Washer, Flat, .283 x .75 x .030

$7.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 731-3232

Roller, Hood Latch

$9.49

$

In Stock, only 2 left!

0

24

Cub Cadet 712-0271

Nut, Hex Sems, 1/4-20

$4.99

$

In Stock, Qty 13

0
