2164 (13A-264G100) - Cub Cadet Garden Tractor Electric Starting Motor Roll Pin Retained Starter Drive Parts Diagram

Garden Tractor

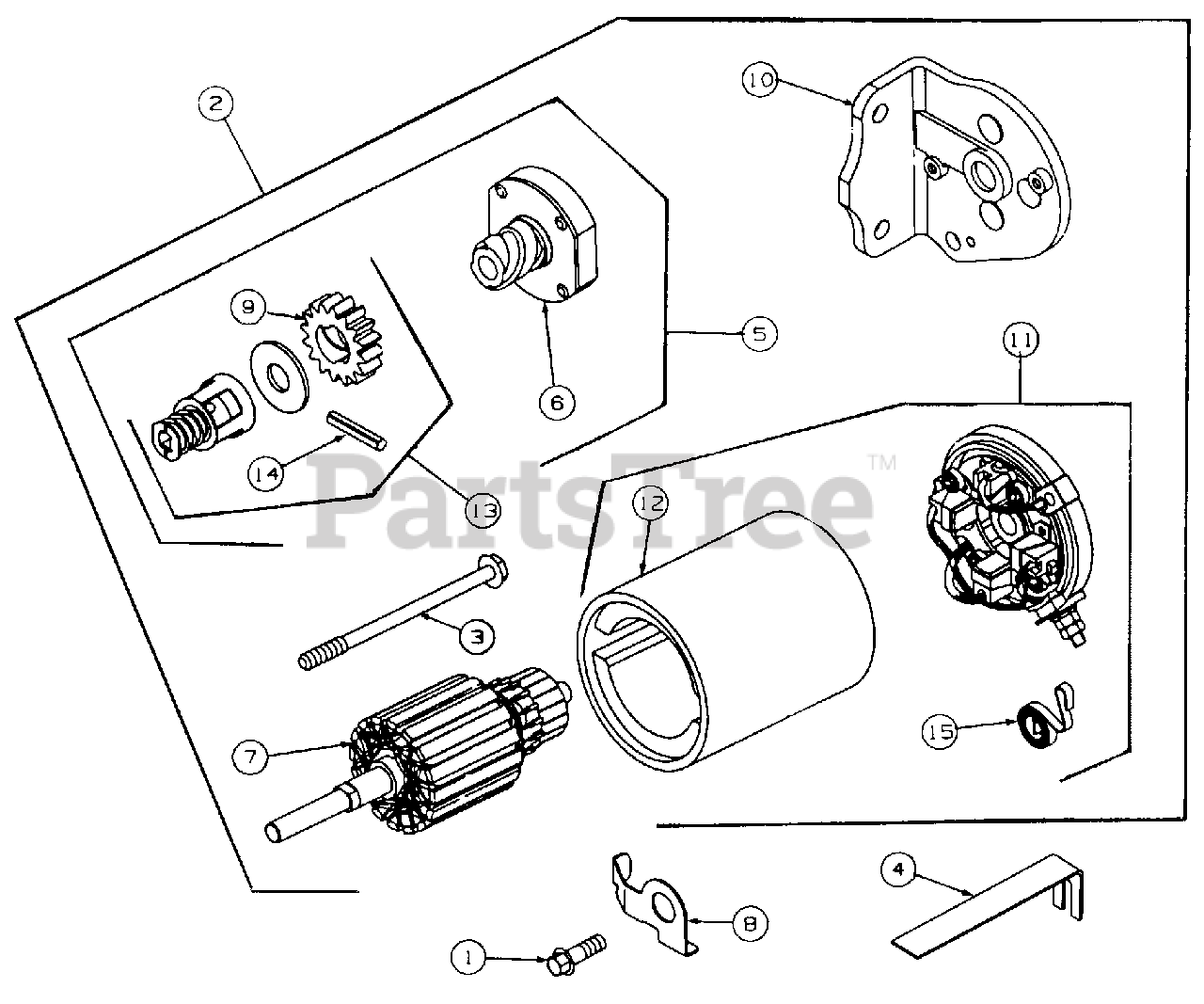

Electric Starting Motor Roll Pin Retained Starter Drive Parts Diagram

  • Title

1

Cub Cadet BS-94627

Screw, Hex

$

$

Not available

2

Cub Cadet BS-494990

Starter Assembly, Motor
(Superseded to BS-795121)

$143.99

$

In Stock, Qty 18

0

3

Cub Cadet BS-94004

Screw, Hex

$

$

Not available

4

Cub Cadet BS-806000

Strap, Starter
(Superseded to BS-691532)

$6.49

$

Usually ships in 2-12 days

0

5

Cub Cadet BS-495878

Starter, Drive Group
(Superseded to BS-696540)

$29.99

$

In Stock, only 1 left!

0

6

Cub Cadet BS-398003

Clutch Assembly
(Superseded to BS-692024)

$21.99

$

In Stock, only 1 left!

0

7

Cub Cadet BS-490309

Armature Assembly

$74.99

$

Usually ships in 2-12 days

0

8

Cub Cadet BS-224723

Clip, Wire

$5.99

$

In Stock, only 1 left!

0

9

Cub Cadet BS-280104

Gear, Starter
(Superseded to BS-695708)

$6.99

$

In Stock, Qty 20+

0

10

Cub Cadet BS-394856

Drive End Cap Assembly

$

$

Not available

11

Cub Cadet BS-494988

Cap Assembly, Commutator End

$57.99

$

Usually ships in 2-12 days

0

12

Cub Cadet BS-494205

Housing Assembly

$73.99

$

In Stock, only 1 left!

0

13

Cub Cadet BS-495877

Kit, Gear
(Superseded to BS-696540)

$29.99

$

In Stock, only 1 left!

0

14

Cub Cadet BS-94288

Pin, Roll
(Superseded to BS-691641)

$4.99

$

In Stock, only 1 left!

0

15

Cub Cadet BS-490316

Spring, Brush

$5.49

$

Usually ships in 2-12 days

0
