2165 - Jonsered Chainsaw (2002-01) CLUTCH OIL PUMP Parts Diagram

Chainsaw

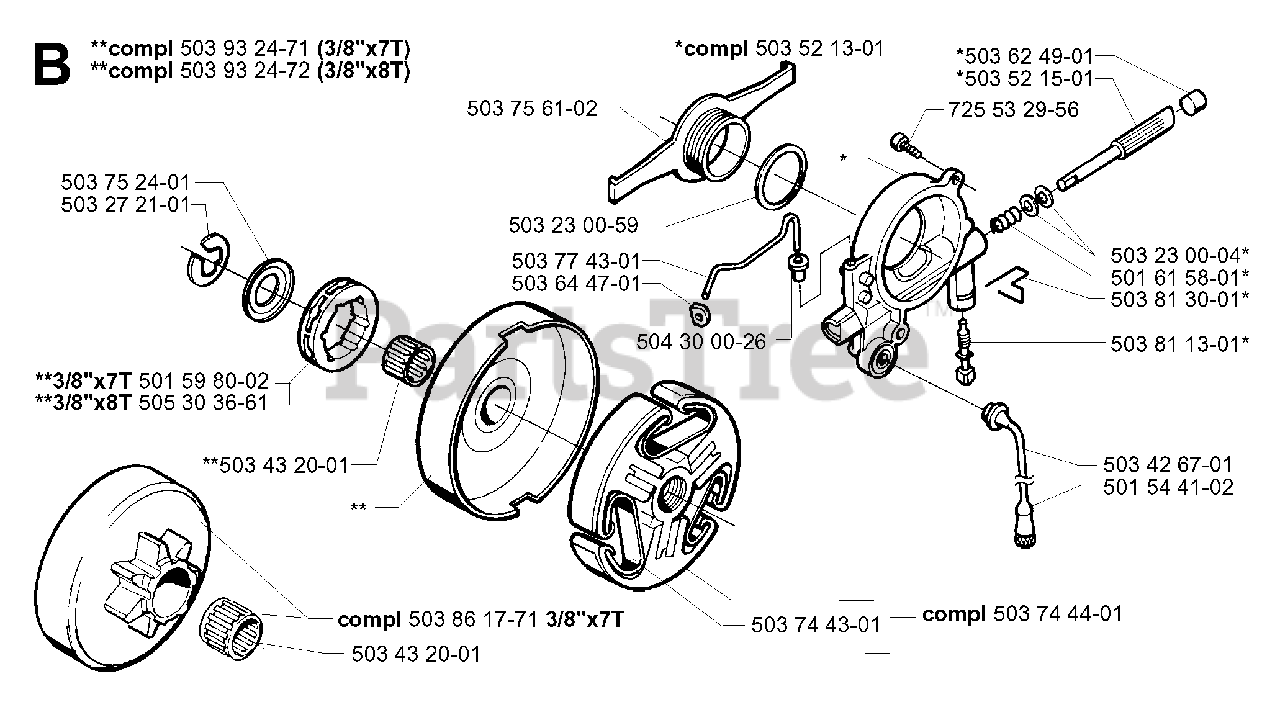

CLUTCH OIL PUMP Parts Diagram

  • Title

5039324-71

Jonsered 503932471

CLUTCH DRUM
(Superseded to 586980601)

Note: 3 /8X7T

$78.99

$

Usually ships in 3-10 days

0

5039324-72

Jonsered 503932472

CLUTCH DRUM
(Superseded to 586980602)

Note: 3 /8X8T

$67.99

$

Usually ships in 3-10 days

0

5037524-01

Jonsered 503752401

WASHER

$6.49

$

In Stock, Qty 20+

0

5032721-01

Jonsered 503272101

RETAINING RING

$3.99

$

In Stock, Qty 20+

0

5015980-02

Jonsered 501598002

68210 RIMSPROCKET
(Superseded to 640200215)

Note: 3 /8X7T

$8.49

$

In Stock, Qty 20+

0

5053036-61

Jonsered 505303661

22273 SPROCKET
(Superseded to 608000112)

Note: 3 /8X8T

$7.99

$

In Stock, only 1 left!

0

5034320-01

Jonsered 503432001

CLUTCH DRUM BEARING

$15.99

$

In Stock, Qty 20+

0

5038617-71

Jonsered 503861771

CLUTCH DRUM
(Superseded to 503861703)

Note: 3 /8X7T

$69.99

$

Usually ships in 3-10 days

0

5034320-01

Jonsered 503432001

CLUTCH DRUM BEARING

$15.99

$

In Stock, Qty 20+

0

5037443-01

Jonsered 503744301

CLUTCH SPRING

$9.49

$

In Stock, Qty 5

0

5043000-26

Jonsered 504300026

SEAL

$6.99

$

In Stock, Qty 7

0

5036447-01

Jonsered 503644701

GROMMET

$10.99

$

Usually ships in 3-10 days

0

5037743-01

Jonsered 503774301

PIPE

$17.99

$

In Stock, only 2 left!

0

5032300-59

Jonsered 503230059

WASHER

$6.99

$

In Stock, only 1 left!

0

5037561-02

Jonsered 503756102

GEAR WHEEL

$17.99

$

Usually ships in 3-10 days

0

5035213-01

Jonsered 503521301

OIL PUMP
(Superseded to 503521303)

$109.99

$

In Stock, Qty 8

0

5037444-01

Jonsered 503744401

CLUTCH
(Superseded to 586798401)

$136.99

$

In Stock, only 1 left!

0

5015441-02

Jonsered 501544102

OIL SCREEN

$17.99

$

In Stock, Qty 5

0

5034267-01

Jonsered 503426701

OIL HOSE

$18.99

$

In Stock, Qty 5

0

5038113-01

Jonsered 503811301

SCREW

$7.49

$

In Stock, only 2 left!

0

5038130-01

Jonsered 503813001

SPRING CLIP

$7.49

$

In Stock, only 2 left!

0

5016158-01

Jonsered 501615801

SPRING

$6.49

$

Usually ships in 3-10 days

0

5032300-04

Jonsered 503230004

WASHER 6.1X9

$7.49

$

Usually ships in 3-10 days

0

7255329-56

Jonsered 725532956

SCREW MC6S 5X16
(Superseded to 725532955)

$6.49

$

In Stock, Qty 20+

0

5035215-01

Jonsered 503521501

PUMP PISTON

$24.99

$

Usually ships in 3-10 days

0

5036249-01

Jonsered 503624901

PLUG

$8.99

$

Usually ships in 3-10 days

0
