216518B (80497) - Snapper 21" Walk-Behind Mower, 6.5hp HANDLES & CONTROLS Parts Diagram

21" Walk-Behind Mower, 6.5hp

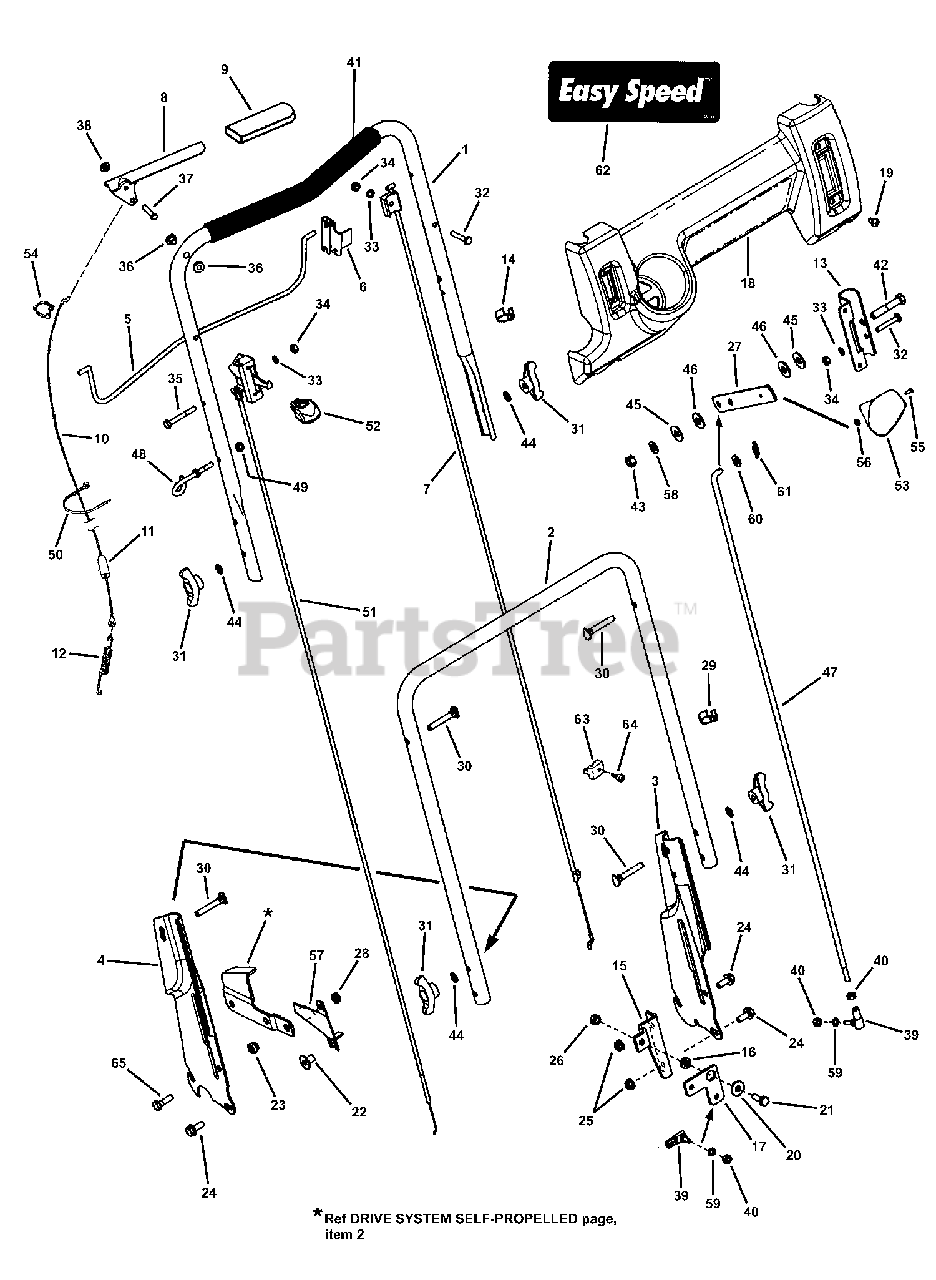

HANDLES & CONTROLS Parts Diagram

  • Title

1

Snapper 7074411

HANDLE, Upper
(Superseded to 7106258AYP)

Note: All

$

$

Not available

2

Snapper 7074156

HANDLE, Middle
(Superseded to 7106232AYP)

Note: All

$

$

Not available

3

Snapper 7033985

HANDLE, Lower LH (Adjustable)
(Superseded to 7033985AYP)

Note: All

$43.99

$

Usually ships in 2-12 days

0

4

Snapper 7033986

HANDLE, Lower RH (Adjustable)
(Superseded to 7033986AYP)

Note: All

$36.99

$

In Stock, only 4 left!

0

5

Snapper 7074418

BAIL, OPC Control (16.6" Wide)
(Superseded to 7074418AYP)

Note: All

$34.99

$

In Stock, only 1 left!

0

6

Snapper 7034872

CLIP, Zone Control
(Superseded to 7034872YP)

Note: All

$5.99

$

In Stock, only 1 left!

0

7

Snapper 7034608

*CABLE, Zone Control (52-63/64" Long)
(Superseded to 7034608YP)

$24.99

$

In Stock, only 1 left!

0

7

Snapper 7078078

CABLE, Zone Control (50-31/64" Long)
(Superseded to 7078078YP)

Note: P217018BVE & RP217018BVE

$31.99

$

In Stock, only 1 left!

0

7

Snapper 7074141

CABLE, Zone Control (56-5/16" Long)
(Superseded to 7074141YP)

Note: P216018KWV & RP216018KWV

$22.99

$

In Stock, only 1 left!

0

8

Snapper 7074473

HANDLE, Clutch
(Superseded to 7074473BMYP)

Note: Self-Propelled Models

$16.99

$

In Stock, Qty 18

0

9

Snapper 7028407

GRIP, International Symbol
(Superseded to 7028407YP)

Note: Self-Propelled Models

$5.49

$

In Stock, Qty 7

0

10

Snapper 7034604

CABLE, Clutch Control (41-1/4" Long)
(Superseded to 7034604YP)

Note: Self-Propelled Models

$21.99

$

In Stock, Qty 20+

0

11

Snapper 7012121

COVER, Vinyl
(Superseded to 7012121YP)

Note: Self-Propelled Models

$1.99

$

Usually ships in 2-12 days

0

12

Snapper 7012122

SPRING, Clutch- 21S
(Superseded to 7012122YP)

Note: Self-Propelled Models

$9.49

$

In Stock, Qty 20+

0

13

Snapper 7074003

BRACKET, Shift
(Superseded to 7074003YP)

Note: All

$6.99

$

Usually ships in 2-12 days

0

14

Snapper 7024641

TIE, Wire, 1.29 long, black
(Superseded to 7024641YP)

Note: Self-Propelled Models

$5.99

$

In Stock, only 1 left!

0

15

Snapper 7073822

BRACKET, Bell Crank
(Superseded to 7073822YP)

Note: Self-Propelled Models

$14.99

$

Usually ships in 2-12 days

0

16

Snapper 7013849

SPACER, .33 x .63 x .156
(Superseded to 703970)

Note: Self-Propelled Models

$4.49

$

In Stock, Qty 10

0

17

Snapper 7073913

BELL CRANK
(Superseded to 7073913YP)

Note: Self-Propelled Models

$24.99

$

Usually ships in 2-12 days

0

18

Snapper 7073826

CONTROL PANEL (w/o Ground Drive Slot)
(Superseded to 7073826YP)

Note: 216518B

$64.99

$

Usually ships in 2-12 days

0

18

Snapper 7074140

**CONTROL PANEL (w/o Electrical Switch Hole)
(Superseded to 7074140YP)

$70.99

$

Usually ships in 2-12 days

0

18

Snapper 7074469

CONTROL PANEL (w/Electrical Switch Hole)
(Superseded to 7074469YP)

Note: P217018BVE & RP217018BVE

$46.99

$

Usually ships in 2-12 days

0

19

Snapper 7091200

SCREW, 1/4-20 x 1/2" Pan Head Self-Tap (Torx)
(Superseded to 7900067YP)

Note: All

$4.49

$

In Stock, Qty 20+

0

20

Snapper 7091130

WASHER, .33 x .88 x .09 Flat
(Superseded to 7091130SM)

Note: Self-Propelled Models

$3.99

$

In Stock, Qty 5

0

21

Snapper 7091904

SCREW, 5/16-18 x 7/8" Hex Head Cap, GR 5
(Superseded to 703408)

Note: Self-Propelled Models

$4.99

$

In Stock, Qty 20+

0

22

Snapper 7090895

TEENUT, 5/16-18
(Superseded to 7090895YP)

Note: Self-Propelled Models

$3.49

$

Usually ships in 2-12 days

0

23

Snapper 7012114

BUSHING, Differential, .328 x .625 x .41
(Superseded to 7012114SM)

Note: Self-Propelled Models

$4.99

$

In Stock, Qty 12

0

24

Snapper 7090595

BOLT, 5/16-18 x 3/4" Hex Flange Lock GR 5
(Superseded to 703354)

Note: All

$5.49

$

In Stock, Qty 12

0

25

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock, GR 5
(Superseded to 703409)

Note: was 7090585 (All)

$5.49

$

In Stock, Qty 20+

0

26

Snapper 7091575

NUT, 5/16-18 Hex Center Lock
(Superseded to 703164)

Note: was 7091067 (S-P Models)

$3.49

$

In Stock, Qty 10

0

27

Snapper 7074113

LEVER, Shift
(Superseded to 7074113YP)

Note: Self-Propelled Models

$9.49

$

Usually ships in 2-12 days

0

28

Snapper 7091606

NUT, 5/16-24 Hex Center Lock GR 5
(Superseded to 703896)

Note: was 7091074 (All)

$3.49

$

In Stock, Qty 8

0

29

Snapper 7023813

CLIP, Wiring Harness
(Superseded to 7023813SM)

Note: All

$3.49

$

In Stock, Qty 10

0

30

Snapper 7091740

SCREW, 5/16-18 x 1-7/8" Curved Head GR 2
(Superseded to 7091740SM)

Note: was 7091189 (All)

$3.49

$

In Stock, Qty 11

0

31

Snapper 7035744

KNOB, 5/16-18 Wing (Black)
(Superseded to 7105085YP)

Note: All

$3.99

$

In Stock, Qty 20+

0

32

Snapper 7079577

SCREW, 1/4-20 x 1-1/2 Hex Head Cap GR 5
(Superseded to 703234)

Note: All

$4.49

$

In Stock, only 3 left!

0

33

Snapper 7090053

WASHER, 1/4" Internal Tooth Lock
(Superseded to 703462)

Note: was (All)

$4.49

$

In Stock, Qty 13

0

34

Snapper 7091576

NUT, 1/4-20 Hex
(Superseded to 703127)

Note: was 7091100 (All)

$3.49

$

In Stock, only 4 left!

0

35

Snapper 7090505

SCREW, 1/4-20 x 2" Hex Head Cap, GR 5
(Superseded to 703163)

$3.49

$

Usually ships in 2-12 days

0

36

Snapper 7014343

BUSHING, .27 x .35 x .4 Flange
(Superseded to 7014343YP)

Note: Self-Propelled Models

$3.99

$

In Stock, Qty 20+

0

37

Snapper 7023792

PIN, 1/4 x 1-1/2"
(Superseded to 704031)

Note: Self-Propelled Models

$3.99

$

In Stock, Qty 10

0

38

Snapper 7091020

PUSH-NUT, 1/4"
(Superseded to 7091020YP)

Note: Self-Propelled Models

$4.49

$

In Stock, Qty 20+

0

39

Snapper 7015753

BALL JOINT, 1/4-28
(Superseded to 7015753YP)

Note: Self-Propelled Models

$10.99

$

In Stock, Qty 6

0

40

Snapper 7090095

NUT, 1/4-28 Hex
(Superseded to 7090095FS)

Note: Self-Propelled Models

$3.49

$

Usually ships in 2-12 days

0

41

Snapper 7022458

FOAM GRIP, 15" long

Note: All

$

$

Currently unavailable

42

Snapper 7091305

SCREW, 3/8-16 x 2" Hex Head Cap, GR 5
(Superseded to 7091305SM)

Note: Self-Propelled Models

$4.49

$

In Stock, Qty 11

0

42

Snapper 7091553

SCREW, 3/8-16 x 1-3/4" Hex Head Cap, GR 5
(Superseded to 704289)

Note: Push Models

$4.99

$

In Stock, Qty 15

0

43

Snapper 7091585

NUT, 3/8-16 Hex Center Lock
(Superseded to 703347)

Note: All

$4.99

$

In Stock, Qty 17

0

44

Snapper 7090391

WASHER, 5/16" Internal Tooth Lock
(Superseded to 703587)

Note: All

$4.49

$

In Stock, Qty 20+

0

45

Snapper 7031961

WASHER, 7/16" Flat
(Superseded to 703964)

Note: Self-Propelled Models

$4.49

$

In Stock, Qty 20+

0

46

Snapper 7028465

WASHER, Nylon
(Superseded to 704004)

Note: Self-Propelled Models

$3.99

$

In Stock, only 1 left!

0

47

Snapper 7074133

ROD, Speed Control (1/4-28 thread)
(Superseded to 7074133YP)

Note: Self-Propelled Models

$27.99

$

In Stock, only 4 left!

0

48

Snapper 7028488

GUIDE, Rope (1/4-20 thread)
(Superseded to 7028488MA)

Note: All

$6.49

$

In Stock, only 1 left!

0

49

Snapper 7076978

NUT, 1/4-28 Hex GR 5 or B
(Superseded to 703232)

Note: All

$4.49

$

In Stock, Qty 20+

0

50

Snapper 7012080

CABLE-TIE, 7"
(Superseded to 7012080SM)

Note: Self-Propelled Models

$4.99

$

Usually ships in 2-12 days

0

51

Snapper 7074460

*THROTTLE CONTROL, .48 x .61
(Superseded to 7074460YP)

Note: Briggs models

$38.99

$

Usually ships in 2-12 days

0

51

Snapper 7074138

*THROTTLE CONTROL, 6.0 KWV
(Superseded to 7074138YP)

Note: Kawasaki models

$54.99

$

In Stock, only 1 left!

0

52

Snapper 7075308

THROTTLE KNOB
(Superseded to 7075308YP)

Note: All

$11.99

$

Usually ships in 2-12 days

0

53

Snapper 7075182

KNOB, Shift
(Superseded to 7075182YP)

Note: Self-Propelled Models

$9.99

$

In Stock, only 1 left!

0

54

Snapper 7026219

CLAMP, 7/8" Double Cable
(Superseded to 7026219YP)

Note: Self-Propelled Models

$4.49

$

In Stock, only 1 left!

0

55

Snapper 7091167

SCREW, #8-32 x 1/2" Cross Recess Filister Head Machine
(Superseded to 7091167YP)

Note: Self-Propelled Models

$3.99

$

Usually ships in 2-12 days

0

56

Snapper 7091018

NUT, #8-32 Hex
(Superseded to 7091018YP)

Note: Self-Propelled Models

$3.99

$

In Stock, Qty 11

0

57

Snapper 7032408

BELT GUIDE, Lower
(Superseded to 7032408YP)

Note: Self-Propelled Models

$26.99

$

Usually ships in 2-12 days

0

58

Snapper 7028568

WASHER, Belleville
(Superseded to 704006)

Note: Self-Propelled Models

$3.99

$

In Stock, only 1 left!

0

59

Snapper 7090053

WASHER, 1/4" Internal Tooth Lock
(Superseded to 703462)

Note: Self-Propelled Models

$4.49

$

In Stock, Qty 13

0

60

Snapper 7090188

WASHER, 3/8" Flat
(Superseded to 703350)

Note: Self-Propelled Models

$4.49

$

In Stock, Qty 20+

0

61

Snapper 7034162

COTTER PIN, 5/16 Self Lock
(Superseded to 704030)

Note: Self-Propelled Models

$4.49

$

In Stock, only 2 left!

0

62

Snapper 7029365

DECAL, Easy Walk
(Superseded to 7029365YP)

Note: All

$6.49

$

Usually ships in 2-12 days

0

63

Snapper 7023153

CLAMP, Casing
(Superseded to 7023153YP)

Note: models with Briggs Engine

$3.99

$

Usually ships in 2-12 days

0

64

Snapper 7023154

SCREW,#10-32 x 5/8" Self-Tap
(Superseded to 7023154YP)

Note: models with Briggs Engine

$3.49

$

Usually ships in 2-12 days

0

65

Snapper 7090238

SCREW, 5/16-24 x 1" Hex Head Cap GR 5
(Superseded to 703301)

Note: All

$3.99

$

In Stock, Qty 6

0
