21658 - Toro Whirlwind II Deluxe Walk-Behind Mower (SN: 008000001 - 008999999) (1978) HANDLE ASSEMBLY MODEL NO. 21658 Parts Diagram

Whirlwind II Deluxe Walk-Behind Mower

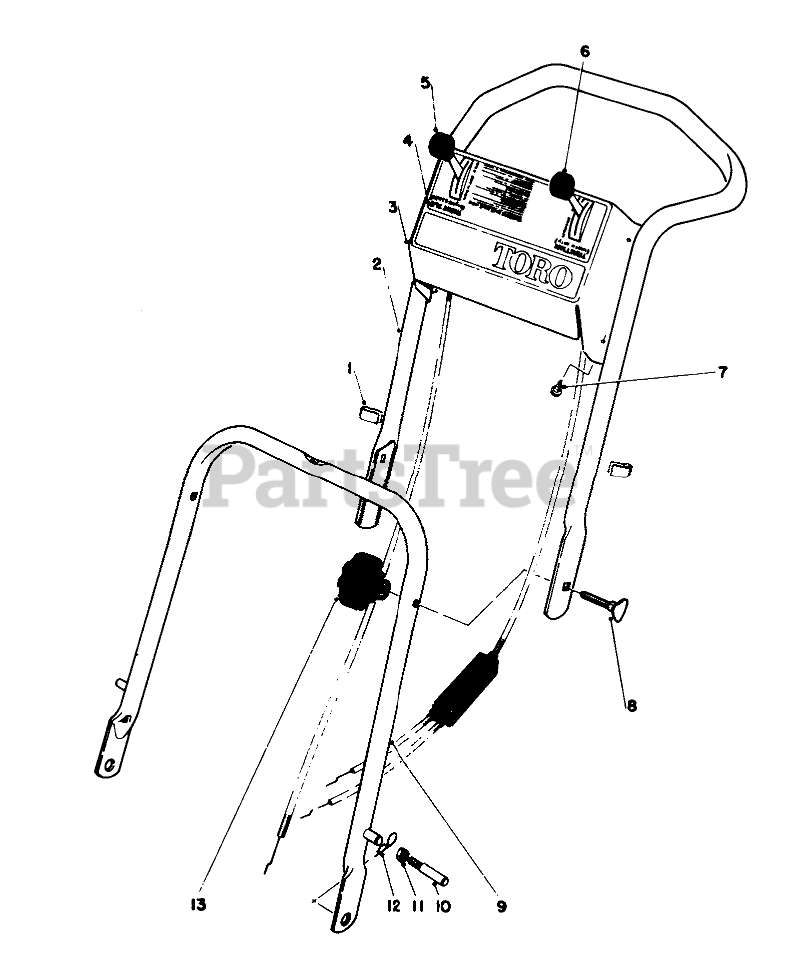

HANDLE ASSEMBLY MODEL NO. 21658 Parts Diagram

  • Title

1

Toro 218-466

CLIP

$

$

Not available

2

Toro 26-0540

UPPER HANDLE

$279.99

$

Usually ships in 3-6 days

0

3

Toro 25-0410

Control Plate

$

$

Not available

4

Toro 26-2210

Decal Control Plate

$

$

Not available

5

Toro 33-2546

Control Throttle
(Superseded to 46-6010)

$60.99

$

Usually ships in 3-6 days

0

6

Toro 33-2560

Traction Control
(Superseded to 46-6050)

$

$

Not available

7

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

8

Toro 17-9420

SCREW-HANDLE

$3.99

$

Usually ships in 3-6 days

0

9

Toro 26-0520

Lower Handle
(Superseded to 42-1480)

$

$

Not available

10

Toro 17-9380

HANDLE PIN

Note: Service Replacement Parts Only

$

$

Not available

11

Toro 32146-8

Nut
(Superseded to 32153-4)

Note: Service Replacement Parts Only

$0.99

$

Usually ships in 3-6 days

0

12

Toro 3290-255

PIN-COTTER, HAIR

$8.99

$

In Stock, only 1 left!

0

13

Toro 194050

Horn

$

$

Currently unavailable

Toro 8-0239

Loose Parts

Note: Not illustrated

$

$

Currently unavailable
