2166 (13A-254G100) - Cub Cadet Garden Tractor Ignition/Electrical Parts Diagram

Garden Tractor

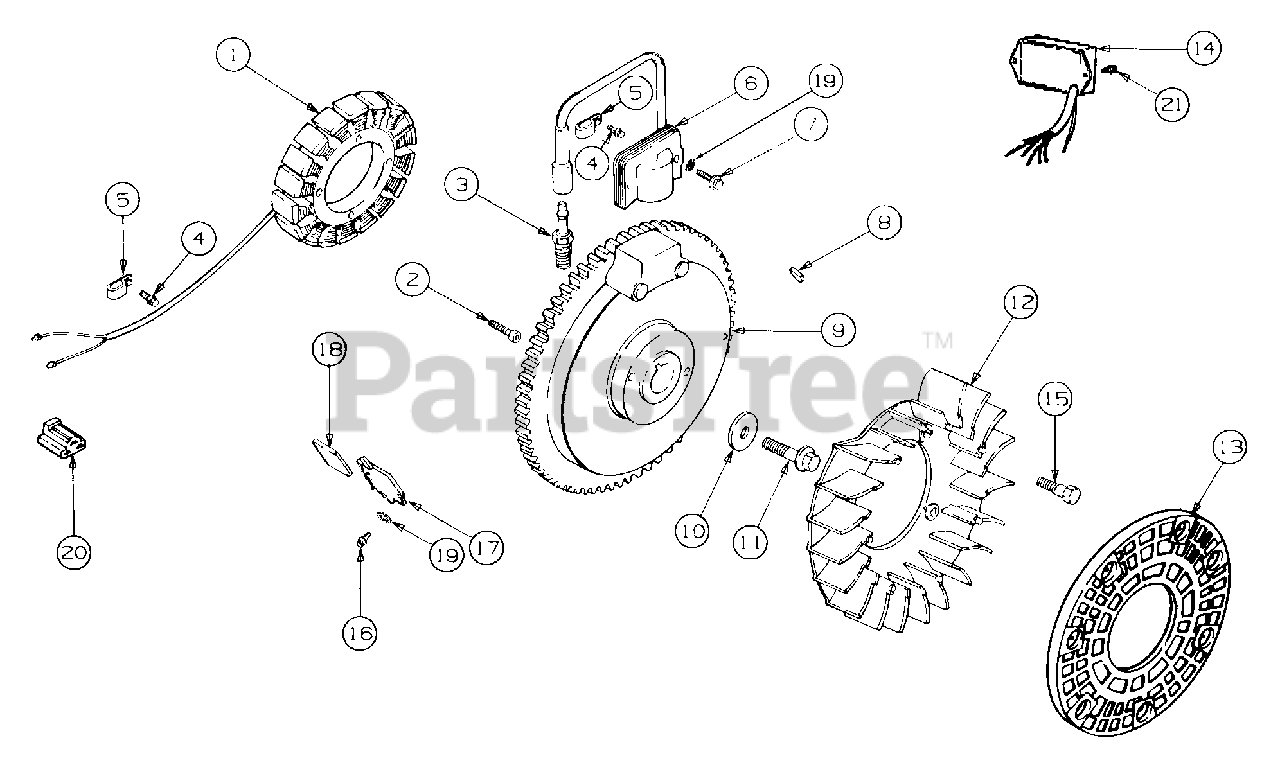

Ignition/Electrical Parts Diagram

  • Title

1

Cub Cadet KH-237878

Kit, Stator

Note: (Includes Ref #4 and KH-25-452-01 Terminal, Qty 2)

$149.99

$

In Stock, Qty 16

0

2

Cub Cadet KH-X-67-51

Screw, Stator Mntg, 10-24 x 3/4
(Superseded to KH-25-086-97-S)

$3.49

$

Usually ships in 2-5 days

0

Cub Cadet KH-M-548025-S

Screw, Stator Mntg, M5 x 0.8 x 25
(Superseded to KH-25-086-402-S)

$2.49

$

In Stock, only 2 left!

0

3

Cub Cadet 759-3336

Spark Plug
(Superseded to RC12YC)

$3.49

$

In Stock, Qty 20+

0

4

Cub Cadet KH-M-0545010

Screw, Harness Clip, M5 x .8 x 10

$

$

Not available

5

Cub Cadet KH-X-728-1

Clip, Cable

$

$

Not available

6

Cub Cadet KH-12-584-14-S

Module, Ignition
(Superseded to KH-12-584-17-S)

$112.99

$

Usually ships in 2-5 days

0

Cub Cadet KH-12-452-02-S

Terminal

$

$

Currently unavailable

7

Cub Cadet KH-12-086-35-S

Screw, Ign Module, M4 x .7 x 4.0

$

$

Not available

8

Cub Cadet KH-X-42-15

Key

$

$

Not available

9

Cub Cadet KH-12-025-46-S

Flywheel Assembly

$

$

Not available

10

Cub Cadet KH-12-468-03

Washer, Flywheel

$

$

Not available

11

Cub Cadet KH-12-086-14

Screw, Flywheel, M10 x 1.5 x 46
(Superseded to KH-25-086-361-S)

$3.49

$

In Stock, only 1 left!

0

12

Cub Cadet KH-12-157-03

Fan
(Superseded to KH-12-157-03-S)

$

$

Not available

13

Cub Cadet KH-12-162-05

Screen, Grass

$

$

Not available

14

Cub Cadet KH-12-584-12-S

Module, Digital Speed Advance
(Superseded to KH-12-707-01-S)

$216.99

$

Usually ships in 2-5 days

0

15

Cub Cadet KH-25-086-47

Bolt, Shoulder M6 x 1 x 16

$

$

Not available

16

Cub Cadet KH-M-0639016

Screw, Rectifier, M6 x 1 x 16
(Superseded to KH-M-639016-S)

$2.49

$

In Stock, only 3 left!

0

Cub Cadet KH-24-086-18

Screw, Philips Hd. 11-16 x 7/8

$

$

Not available

17

Cub Cadet KH-41-403-09

Rectifier-Regulator
(Superseded to KH-25-403-37-S)

$105.99

$

In Stock, Qty 7

0

18

Cub Cadet KH-236602

Connector, Three Contact
(Superseded to KH-25-155-41-S)

$7.99

$

In Stock, Qty 12

0

19

Cub Cadet KH-X-22-11

Washer, Lock, 1/4

$

$

Not available

20

Cub Cadet KH-236473

Connector, Three Contact

$

$

Not available

Cub Cadet KH-236602

Connector, Three Contact
(Superseded to KH-25-155-41-S)

$7.99

$

In Stock, Qty 12

0

21

Cub Cadet KH-M-461013

Screw, Pan Head, M4.2 x 13

$

$

Currently unavailable

Cub Cadet KH-12-518-29

Lead, Black, 6"

$

$

Not available

Cub Cadet KH-24-518-12-S

Lead, Black, 4"

$4.99

$

In Stock, only 1 left!

0

Cub Cadet KH-M-445010

Screw, Hex Flange M4 x.7 x 10

Note: (To attach harness to baffle)

$

$

Not available

Cub Cadet KH-12-176-51-S

Harness, Wire Engine

Note: (Not Shown)

$

$

Not available
