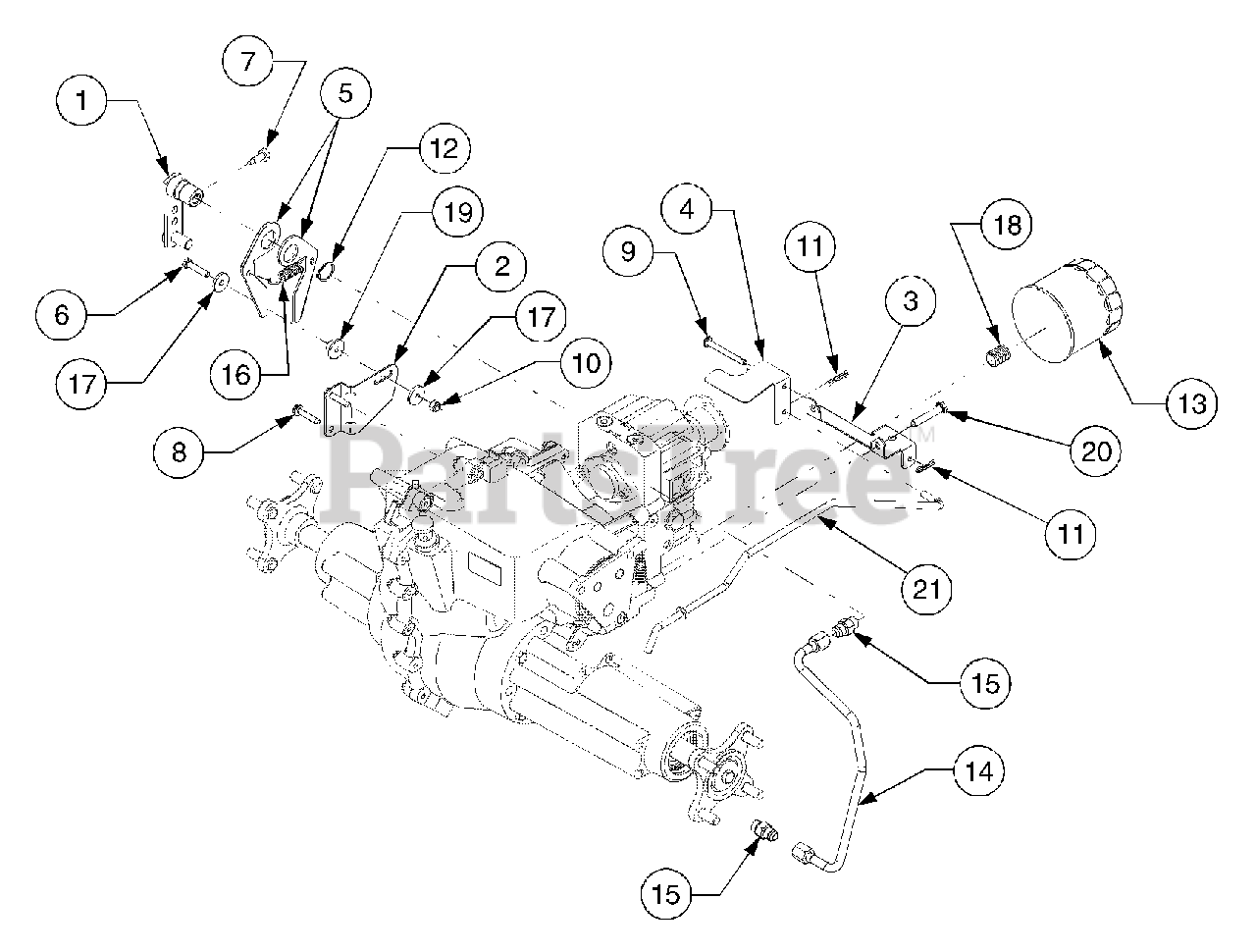

2166 (13A-254G100) - Cub Cadet Garden Tractor Neutral Linkage, Hydraulic Pickup And Return Tubes 618-04110 Trans Parts Diagram

Garden Tractor

Neutral Linkage, Hydraulic Pickup And Return Tubes 618-04110 Trans Parts Diagram

  • Title

1

Cub Cadet 603-0160

Arm Assembly, Control

$

$

Not available

2

Cub Cadet 603-04184

Bracket, Hydro Neutral

$

$

Not available

3

Cub Cadet 603-04202

Bracket, Hydro Dump Mtg,

Variations

Cub Cadet 603-04202-0716

BRACKET, HYDRO DUMP MTG, - CUB YELLOW-99 (0716)

$

$

Not available

$

$

4

Cub Cadet 703-05316

Bracket, Hydro Dump Actuator

$

$

Not available

5

Cub Cadet 703-2441

Arm, Neutral

$7.49

$

In Stock, only 2 left!

0

6

Cub Cadet 710-0106

Screw, Hex Cap, 1/4-20 x 1.25

$3.99

$

In Stock, only 1 left!

0

7

Cub Cadet 710-04171

Screw, Special Hex Cap, 5/16-24 x .625

$4.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 710-0809

Screw, Hex Wash TT-Tap, 1/4-20 x 1.25

$6.49

$

In Stock, Qty 20+

0

9

Cub Cadet 711-04220

Pin, Clevis, .25 x 2.38

$

$

Not available

10

Cub Cadet 712-0324

Nut, Hex Top Lock, 1/4-20

$3.49

$

In Stock, Qty 20+

0

11

Cub Cadet 714-0104

Pin, Internal Cotter

$3.99

$

In Stock, Qty 20+

0

12

Cub Cadet 716-0111

Ring, Snap, .875 Shaft

$6.49

$

In Stock, Qty 11

0

13

Cub Cadet 723-3014

Filter, Oil
(Superseded to 923-3014)

$20.99

$

In Stock, Qty 20+

0

14

Cub Cadet 727-04064

Tube, Hydro Inlet
(Superseded to 927-04064)

$

$

Not available

15

Cub Cadet 727-3002

Connector, w/O-Ring
(Superseded to 927-3002)

$11.99

$

Usually ships in 3-6 days

0

Cub Cadet 721-3001

O-Ring, 3/8 OD Tube

$3.49

$

In Stock, Qty 8

0

16

Cub Cadet 732-3119

Spring, Extension, .5 OD x 1.97
(Superseded to 732-3119A)

$21.99

$

In Stock, only 2 left!

0

17

Cub Cadet 736-0176

Washer, Flat, .25 x .93 x .120 Thk

$3.99

$

In Stock, Qty 20+

0

18

Cub Cadet 737-3022

Nipple, Oil Filter
(Superseded to 937-3022)

$14.99

$

In Stock, only 1 left!

0

19

Cub Cadet 750-0918

Spacer, Centering

$

$

Not available

20

Cub Cadet 710-3180

Screw, Hex Cap, 5/16-18 x 1.75 GR5

$4.99

$

In Stock, Qty 20+

0

21

Cub Cadet 747-04230

Rod, Hydro Dump Valve

$

$

Not available
