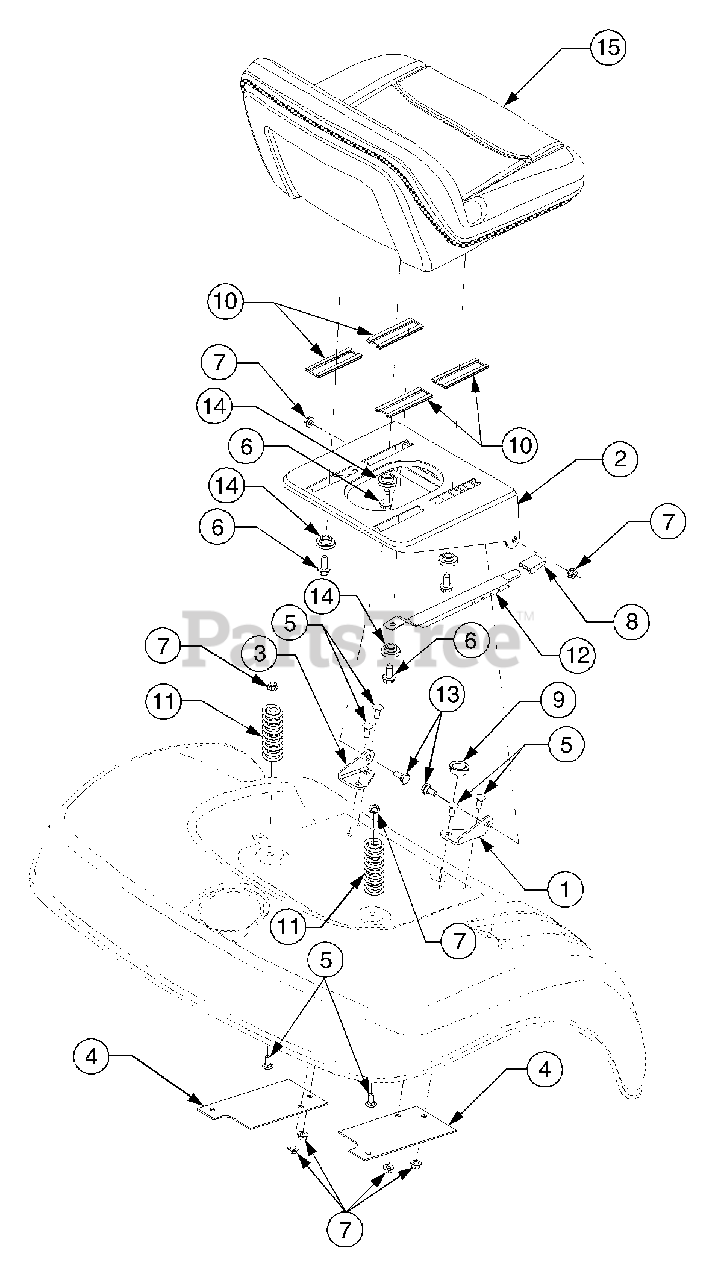

2166 (13A-254G100) - Cub Cadet Garden Tractor Seat And Support Parts Diagram

Garden Tractor

Seat And Support Parts Diagram

  • Title

1

Cub Cadet 703-2394-0716

Bracket, RH Seat Pivot

$

$

Not available

2

Cub Cadet 703-2395B-0716

Seat, Base

$120.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 777I20310

Graphic, Seat Adjuster

$

$

Not available

3

Cub Cadet 703-2477-0716

Bracket, LH Seat Pivot

$

$

Not available

4

Cub Cadet 703-2628-0716

Bracket, Fender Reinforcement
(Superseded to 703-2628-4021)

$

$

Not available

5

Cub Cadet 710-0451

Bolt, Carriage, 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

6

Cub Cadet 710-1260A

Screw, Hx Wash. Hd. Tapp., 5/16-18 x .75

$3.49

$

In Stock, Qty 20+

0

7

Cub Cadet 712-04054

Nut, Hex Flange Lock, 5/16-18

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 720-0426

Knob, Seat Adjuster
(Superseded to 731-13116-1)

$12.99

$

In Stock, only 3 left!

0

9

Cub Cadet 723-3042

Bushing, Snap, 7/8 ID

$3.99

$

In Stock, only 1 left!

0

10

Cub Cadet 731-3154

Slide, Seat

$

$

Not available

11

Cub Cadet 732-3080A

Spring, Comp, 1.9 OD x 2.4

$12.99

$

In Stock, Qty 20+

0

12

Cub Cadet 732-3098

Spring, Index

$

$

Not available

13

Cub Cadet 938-0140

Bolt, Shoulder
(Superseded to 738-0140)

$

$

Not available

14

Cub Cadet 738-0372B

Spacer, Shoulder

$8.99

$

In Stock, Qty 20+

0

15

Cub Cadet 757-3003

Seat, Mid Back
(Superseded to 759-04299)

$

$

Not available

Cub Cadet 777D06883

Graphic, Seat Back

Note: Not shown

$16.99

$

In Stock, only 2 left!

0

Cub Cadet 777D01782

Graphic, Made in USA

Note: Not shown

$

$

Not available
