21665x8C - Scotts 21" Walk-Behind Mower (1996) Mower Housing Assembly Parts Diagram

21" Walk-Behind Mower

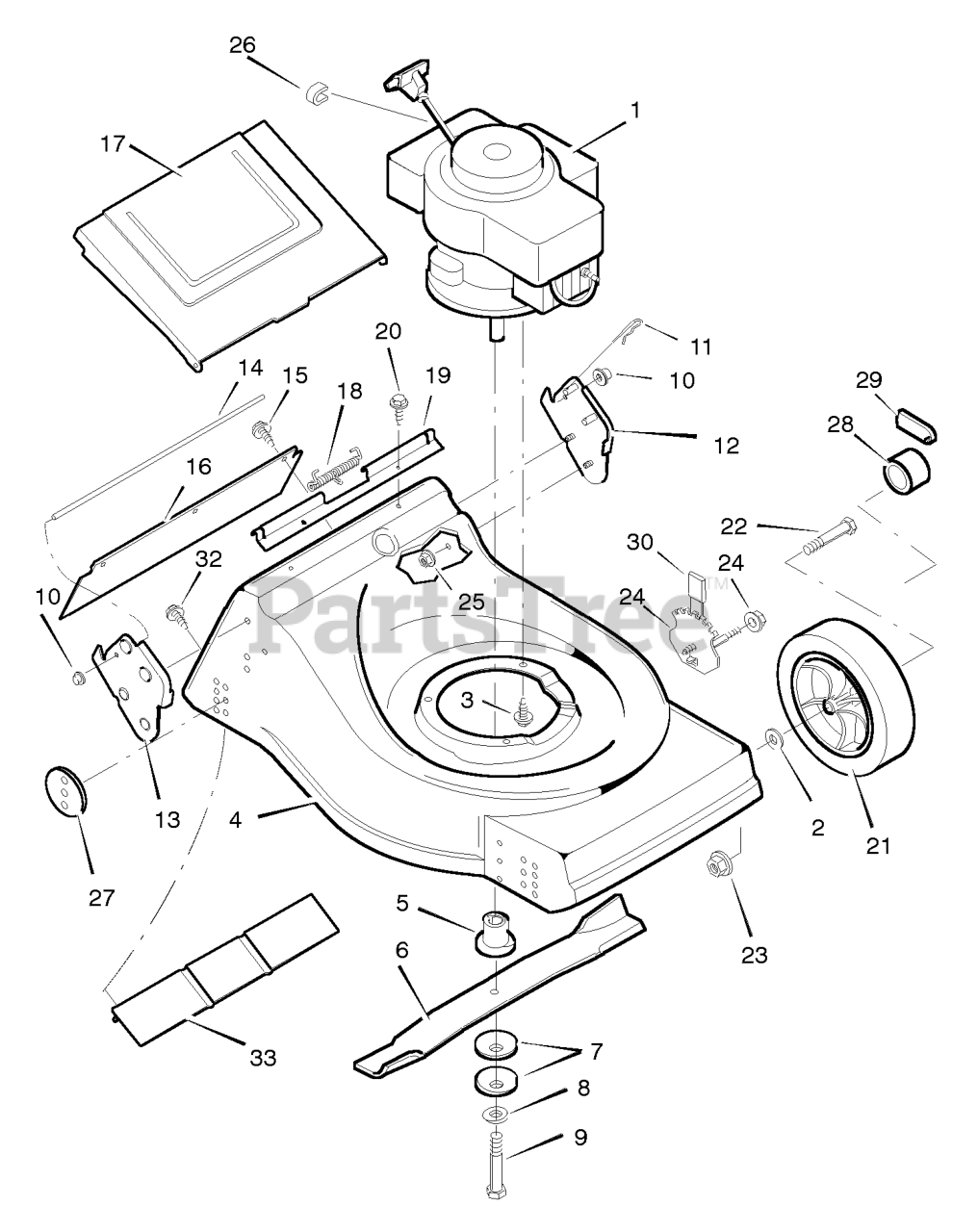

Mower Housing Assembly Parts Diagram

  • Title

1

Engine *

$

$

Not available

2

Murray 010851 Z

Washer

$

$

Currently unavailable

3

Murray 0025X6MA

Bolt, Engine

$5.49

$

Usually ships in 2-12 days

0

4

Murray 070125

Housing

$

$

Not available

5

Murray 071056MA

Adapter, Blade

$10.99

$

Usually ships in 2-12 days

0

6

Murray 043836E701MA

Blade

$24.99

$

Usually ships in 2-12 days

0

7

Murray 17X137MA

Washer, Belleville

$5.49

$

Usually ships in 2-12 days

0

8

Murray 17X124MA

Washer

$4.49

$

Usually ships in 2-12 days

0

9

Murray 01X142MA

Bolt, Hex

$8.49

$

In Stock, Qty 7

0

10

Murray 028X42MA

Push- On Cap

$3.99

$

Usually ships in 2-12 days

0

11

Murray 031X10MA

Pin, Hair

$3.49

$

Usually ships in 2-12 days

0

12

Murray 71097E701

Bracket, Left Handle

$

$

Currently unavailable

13

Murray 71096E701

Bracket, Right Handle

$

$

Currently unavailable

14

Murray 215X14 Z

Rod, Door Pivot

$

$

Currently unavailable

15

Murray 26X245MA

Screw

$4.49

$

In Stock, Qty 6

0

16

Murray 043640

Deflector, Rear

Note: (Model with Height Adjusters)

$

$

Not available

--

Murray 042678

Deflector, Rear

Note: (Model without Height Adjusters)

$

$

Currently unavailable

17

Murray 071409

Door, Rear

$66.99

$

Usually ships in 2-12 days

0

18

Murray 166X33MA

Spring, Torsion

$6.99

$

In Stock, only 1 left!

0

19

Murray 071410MA

Spacer, Door

$7.99

$

Usually ships in 2-12 days

0

20

Murray 26X259MA

Screw

$4.49

$

Usually ships in 2-12 days

0

21

Wheel and Tire *

$

$

Not available

22

Murray 009X10MA

Bolt, Axle

$

$

Not available

23

Murray 015X68MA

Nut, Flange
(Superseded to 703333)

$4.99

$

In Stock, Qty 20+

0

24

Murray 401025MA

Adjuster, Height

$72.99

$

Usually ships in 2-12 days

0

25

Murray 015X79MA

Nut, Flange
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

26

Murray 042189MA

Stop, Rope

$3.99

$

Usually ships in 2-12 days

0

27

Murray 043784MA

Spacer

$1.99

$

Usually ships in 2-12 days

0

28

Murray 020107MA

Hub Cap

Note: (Optional)

$4.49

$

Usually ships in 2-12 days

0

29

Murray 043847MA

Hub Cap

Note: Optional (For 8x2 in. Ball Bearing Wheel)

$4.49

$

Usually ships in 2-12 days

0

--

Murray 043615MA

Hub Cap

Note: Optional (For 8x2 in. Plastic Wheel)

$4.49

$

Usually ships in 2-12 days

0

30

Murray 043394MA

Grip

$

$

Not available

32

Murray 26X214MA

Screw

$4.49

$

Usually ships in 2-12 days

0

33

Murray 43623E701

Baffle, Rear

$27.99

$

Usually ships in 2-12 days

0

--

Murray F-96416

Book, Instruction

$

$

Currently unavailable
