21691 - Toro 53cm Super Recycler Walk-Behind Mower (SN: 409000000 - 999999999) Handle Assembly Parts Diagram

53cm Super Recycler Walk-Behind Mower

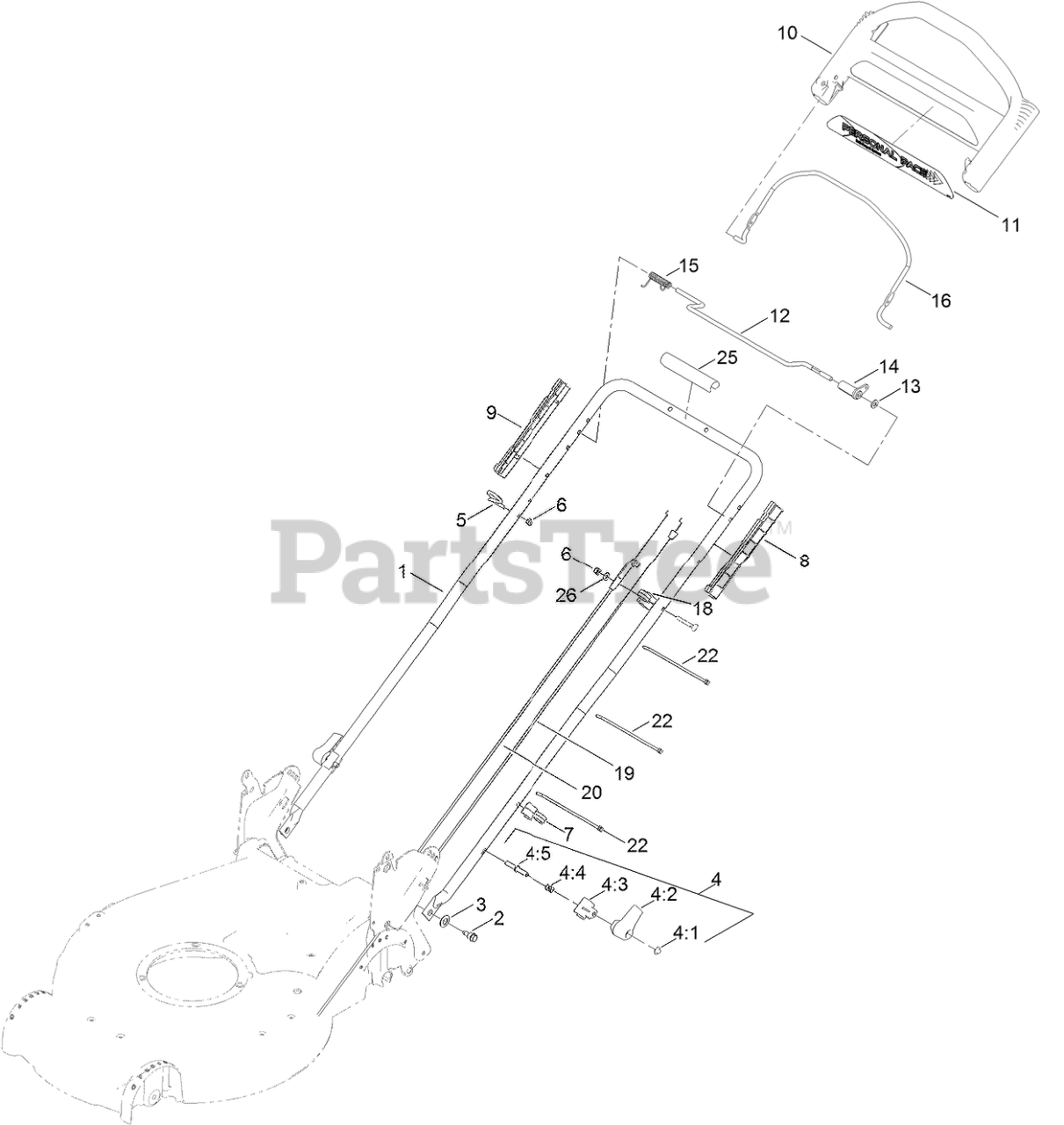

Handle Assembly Parts Diagram

  • Title

1

Toro 132-4460-05

HANDLE

$80.99

$

Usually ships in 3-6 days

0

2

Toro 115-1958

BOLT-SHOULDER

$5.49

$

In Stock, Qty 8

0

3

Toro 112-9972

WASHER-SPRING, CONICAL

$7.99

$

In Stock, Qty 9

0

4

Toro 138-3249

QUICK RELEASE ASM

$10.99

$

In Stock, only 2 left!

0

4:1

Toro 32112-11

NUT-PUSH

$1.49

$

In Stock, Qty 16

0

4:2

Toro 138-3248

LEVER-RELEASE
(Superseded to 138-3249)

$10.99

$

In Stock, only 2 left!

0

4:3

Toro 138-3253

ANCHOR-SPRING
(Superseded to 138-3249)

$10.99

$

In Stock, only 2 left!

0

4:4

Toro 115-2858

SPRING-COMPRESSION

$3.49

$

In Stock, only 4 left!

0

4:5

Toro 138-3243

ROD-RELEASE

$2.49

$

Usually ships in 3-6 days

0

5

Toro 86-9671

GUIDE-ROPE

$4.49

$

In Stock, Qty 18

0

6

Toro 137-3094

NUT-HEX

$1.49

$

In Stock, Qty 20+

0

7

Toro 114-7988

GUIDE-CABLE

$2.99

$

In Stock, Qty 20+

0

8

Toro 105-6842

GUIDE-LH

$8.99

$

In Stock, only 1 left!

0

9

Toro 105-6841

GUIDE-RH

$8.99

$

In Stock, Qty 8

0

10

Toro 104-8678

HANDLE-CONTROL

$81.99

$

In Stock, only 2 left!

0

11

Toro 120-3911

DECAL-HANDLE

$13.99

$

Usually ships in 3-6 days

0

12

Toro 136-7150

BAR-CONTROL, TRACTION

$16.99

$

In Stock, Qty 7

0

13

Toro 120-9683

WASHER-PLAIN

$2.99

$

Usually ships in 3-6 days

0

14

Toro 99-1589

LEVER-TRACTION

$7.49

$

In Stock, Qty 15

0

15

Toro 136-7166

SPRING-TORSION

$2.99

$

In Stock, Qty 20+

0

16

Toro 131-0880-03

BAIL-BRAKE

$15.99

$

In Stock, Qty 20+

0

18

Toro 136-5864

ANCHOR-CABLE

$2.99

$

In Stock, Qty 16

0

19

Toro 117-9389

CABLE-TRACTION

$37.99

$

In Stock, Qty 11

0

20

Toro 117-5900

CABLE-BRAKE

$41.99

$

Usually ships in 3-6 days

0

22

Toro 614249

TIE-CABLE

$1.49

$

In Stock, Qty 20+

0

25

Toro 131-4551

HANDLE-COVER

$1.49

$

Usually ships in 3-6 days

0

26

Toro 139-1699

WASHER-FLAT

$1.49

$

Usually ships in 3-6 days

0
