21693 - Toro 53cm Super Recycler Walk-Behind Mower (SN: 400000000 - 410999999) Deck Assembly Parts Diagram

53cm Super Recycler Walk-Behind Mower

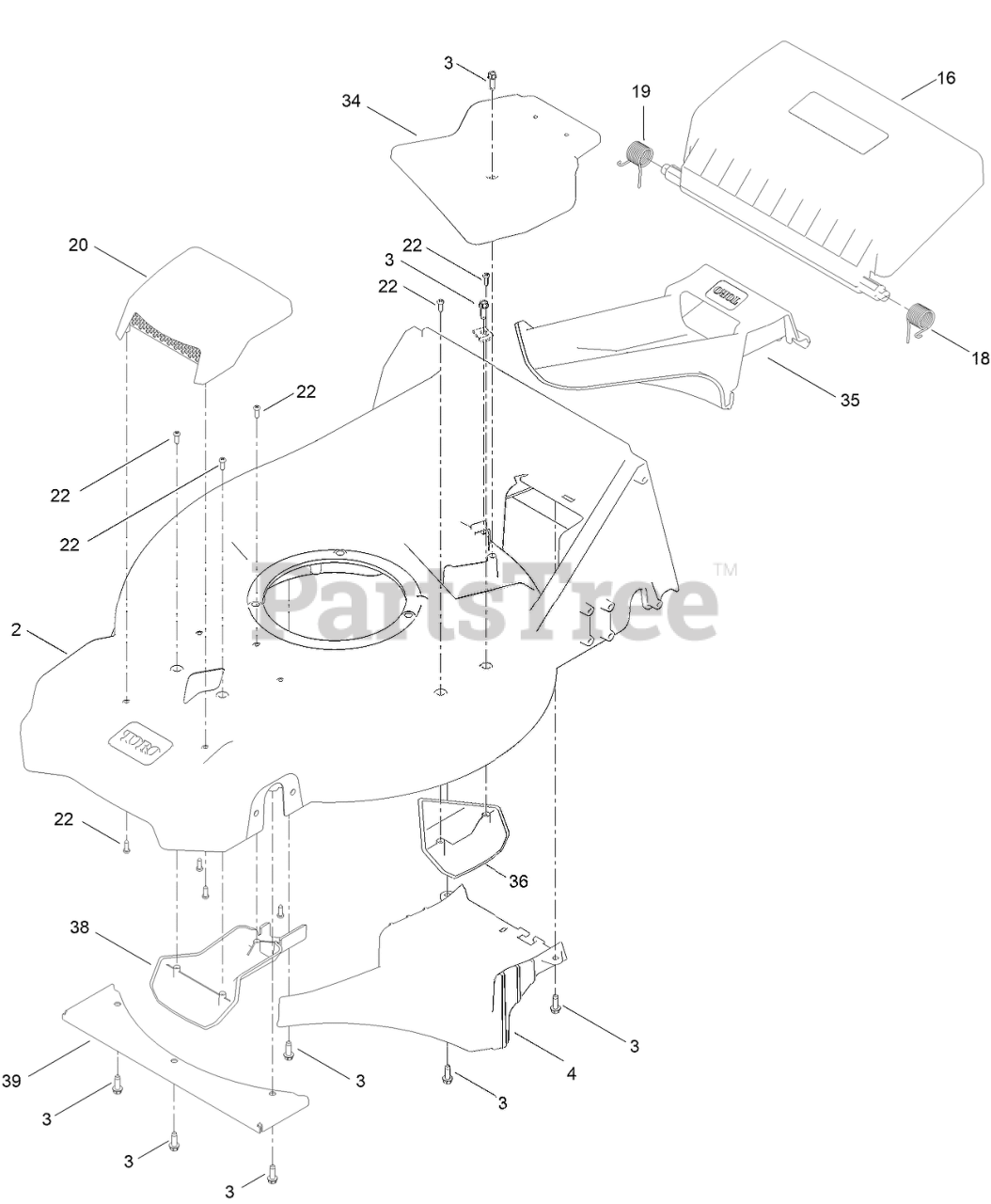

Deck Assembly Parts Diagram

  • Title

2

Toro 144-6460-01

DECK-CAST, 21"

$283.99

$

Usually ships in 3-6 days

0

3

Toro 49-2040

SCREW-HWHTF

$2.49

$

In Stock, Qty 20+

0

4

Toro 144-0233

RAMP-DISCHARGE

$17.99

$

In Stock, Qty 5

0

16

Toro 139-5476

ASM-REAR DOOR, IN MOLD

$21.99

$

In Stock, Qty 8

0

18

Toro 139-5478

SPRING-TORSION, LH

$1.99

$

In Stock, Qty 11

0

19

Toro 139-5479

SPRING-TORSION, RH

$1.99

$

In Stock, Qty 11

0

20

Toro 144-6531

ASM-COVER, TOP INTAKE

$11.99

$

Usually ships in 3-6 days

0

22

Toro 139-1703

SCREW-PLASTIC, PPH

$1.49

$

Usually ships in 3-6 days

0

34

Toro 144-0234

COVER-BELT, TOP

$11.99

$

Usually ships in 3-6 days

0

35

Toro 144-0236

PLUG-MULCH

$17.99

$

In Stock, only 2 left!

0

36

Toro 144-0237

KICKER-HOUSING

$5.49

$

In Stock, only 1 left!

0

37

Toro 139-1703

SCREW-PLASTIC, PPH

Note: Not illustrated

$1.49

$

Usually ships in 3-6 days

0

38

Toro 144-6464

COVER-INTAKE, BOTTOM

$5.99

$

Usually ships in 3-6 days

0

39

Toro 144-0235-03

PLATE-COVER, CE

$18.99

$

Usually ships in 3-6 days

0

40

Toro 145-5606

DECAL-COVER, INTAKE (CE)

Note: Not illustrated

$5.49

$

Usually ships in 3-6 days

0
