21695 - Toro 53cm Flex-Force Power System eSuper Recycler Walk-Behind Mower (SN: 400000000 - 999999999) Front Wheel and Height-of-Cut Assembly Parts Diagram

53cm Flex-Force Power System eSuper Recycler Walk-Behind Mower

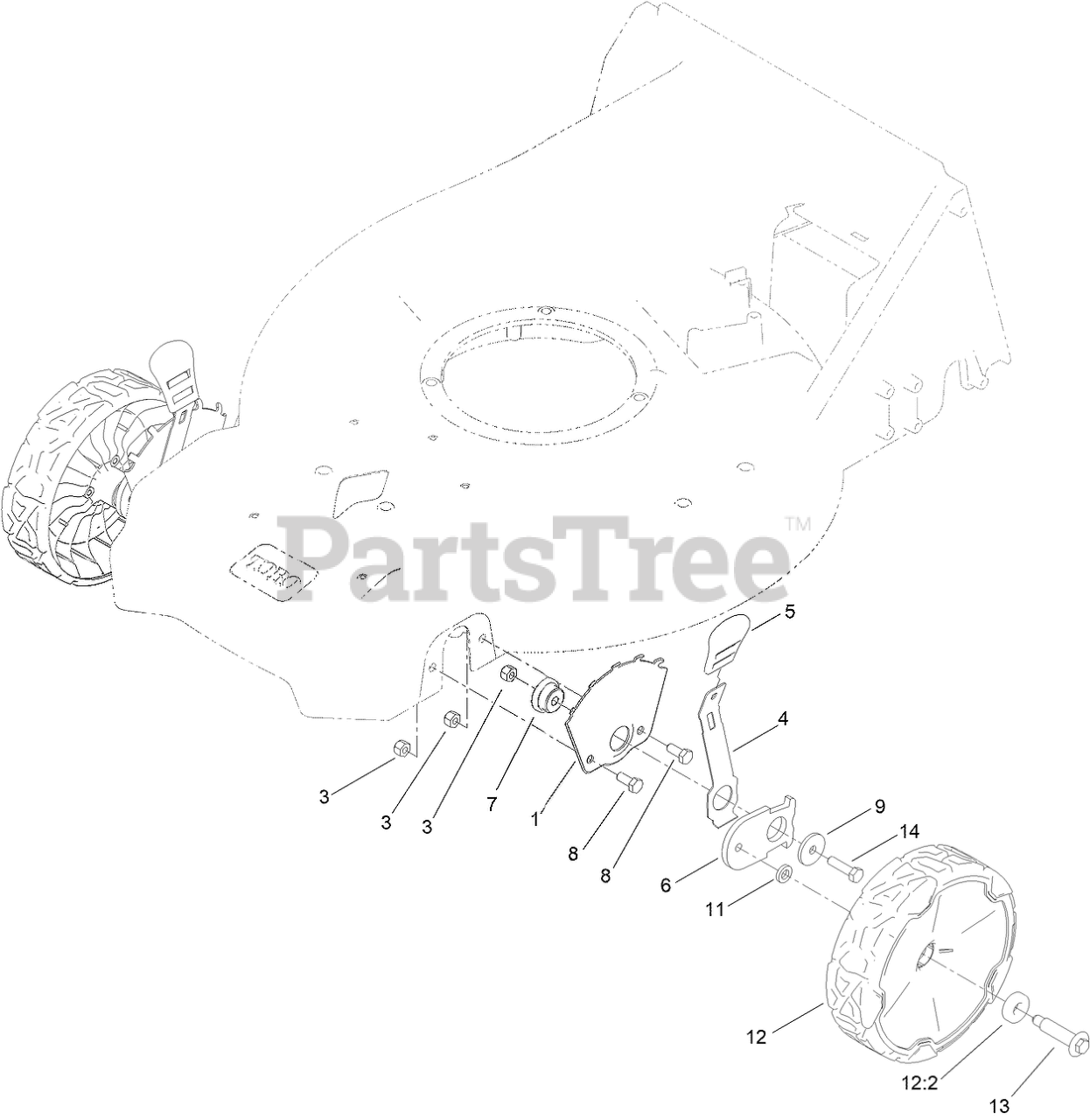

Front Wheel and Height-of-Cut Assembly Parts Diagram

  • Title

1

Toro 115-1956-05

PLATE-HOC,FRONT FSVQ WEDNESDAY

$9.99

$

Usually ships in 3-6 days

0

3

Toro 119-4038

NUT-HEX

$2.99

$

In Stock, Qty 5

0

4

Toro 105-1809

ARM-SPRING

$11.99

$

In Stock, Qty 8

0

5

Toro 110-0549

KNOB-HOC

$1.49

$

In Stock, Qty 20+

0

6

Toro 137-9128

ARM-PIVOT, FRONT

$6.99

$

In Stock, Qty 20+

0

7

Toro 105-1818

BUSHING-MOUNT, HOC

$4.99

$

In Stock, Qty 8

0

8

Toro 137-3052

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

9

Toro 139-1704

WASHER-FLAT

$1.49

$

Usually ships in 3-6 days

0

11

Toro 139-5449

WASHER-WHEEL BOLT

$0.99

$

In Stock, Qty 9

0

12

Toro 144-6469

ASM-WHEEL, 8" (BEARINGS)

$28.99

$

In Stock, only 3 left!

0

12:2

Toro 52-2450

BEARING-WHEEL

$17.99

$

In Stock, Qty 20+

0

13

Toro 145-3899

WHEEL BOLT

$1.99

$

In Stock, Qty 20+

0

14

Toro 120-9696

SCREW-HH

$

$

Currently unavailable
