217 A (190-217A-100) - Cub Cadet 32 Cubic Feet Collection System Collection System Parts Diagram

32 Cubic Feet Collection System

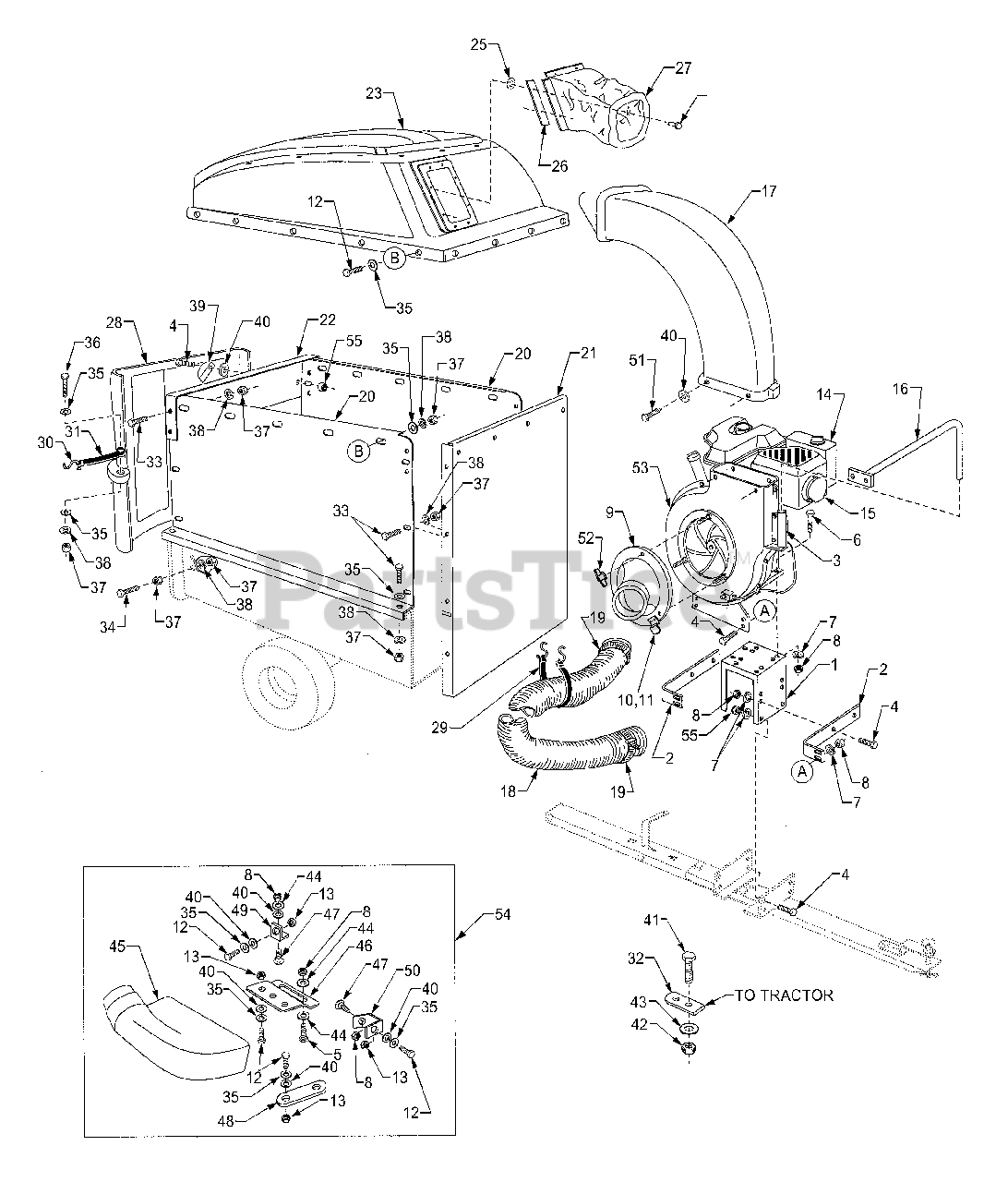

Collection System Parts Diagram

  • Title

1

Cub Cadet AF-24080

Engine Base

$

$

Not available

2

Cub Cadet AF-24078

Brace,Housing

$

$

Not available

3

Cub Cadet AF-63226

Hose Hanger Bracket Ass'y.

$

$

Not available

4

Cub Cadet 710-3008

Bolt,Hex 5/16-18 x 3/4"

$3.99

$

In Stock, Qty 20+

0

5

Cub Cadet 710-0376

Bolt,Hex 5/16-18 x 1"

$3.99

$

In Stock, Qty 17

0

6

Cub Cadet 710-0442

Bolt,Hex 5/16-18 x 1-1/2"
(Superseded to 710-0805A)

$3.99

$

In Stock, Qty 8

0

7

Cub Cadet 736-0119

Lockwasher,5/16"Spring Type
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 712-0158

Nut,Hex Lock 5/16-18
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 19

0

9

Cub Cadet AF-63375

Assembly,Hose Adapter
(Superseded to AF-43791)

Note: (Includes items 10 and 11)

$131.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 781-0635

Bracket,Switch (Actuator)

$8.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 728-3001

Rivet,Pop 5/32"

$

$

Currently unavailable

12

Cub Cadet 710-0812

Bolt,Hex 1/4-20 x 3/4"

$

$

Not available

13

Cub Cadet 712-0291

Nut,Hex Lock 1/4-20 Thd.

$4.49

$

In Stock, Qty 9

0

14

Engine, B&S 5 HP 110412-0158-E1

$

$

Not available

15

Cub Cadet AF-222261

Deflector,Muffler

$

$

Not available

16

Cub Cadet AF-63227

Hose Hanger Rod Ass'y.
(Superseded to AF-49974)

$

$

Not available

17

Cub Cadet AF-46420

Elbow

$257.99

$

In Stock, only 1 left!

0

18

Cub Cadet AF-43792

Hose (6"x 84")
(Superseded to AF-41882)

$177.99

$

Usually ships in 3-6 days

0

19

Cub Cadet AF-43793

Hose Clamp 6"

$16.99

$

Usually ships in 3-6 days

0

20

Cub Cadet AF-24678

Side Panel Cart Extension

Variations

Cub Cadet AF-24678-0498

EXTENSION-CART SID - OLD CUB YELLOW (0498)

$

$

Not available

$

$

21

Cub Cadet AF-24679

Front Panel Cart Extension

Variations

Cub Cadet AF-24679-0498

FRONT CART EXTENSION - OLD CUB YELLOW (0498)

$

$

Not available

$

$

22

Cub Cadet AF-23836

Cross Brace

$

$

Not available

23

Cub Cadet AF-63217

Hard Top Assembly
(Superseded to AF-64244)

Note: (Includes Ref. Nos. 24,25,26,27)

$

$

Not available

?24

Cub Cadet AF-43882

Rivet,3/16"

$4.49

$

Usually ships in 3-6 days

0

25

Cub Cadet 736-0400

Washer,Flat 3/16"

$4.99

$

In Stock, Qty 16

0

26

Cub Cadet AF-23842

Boot Mounting Strap

$

$

Not available

27

Cub Cadet AF-46480

Hard top Boot

$

$

Not available

28

Cub Cadet AF-44790

Poly Rear Door

$243.99

$

Usually ships in 3-6 days

0

29

Cub Cadet AF-43790

Strap,Tarp 25"

$

$

Not available

30

Cub Cadet AF-44849

"S"Hook

$11.99

$

Usually ships in 3-6 days

0

31

Cub Cadet AF-44850

Strap,Tarp (Less Hooks)

$

$

Not available

32

Cub Cadet AF-23540

Hitch Plate

$

$

Not available

33

Cub Cadet 710-0751

Bolt,Hex 1/4-20 x 5/8"

$3.99

$

In Stock, Qty 20+

0

34

Cub Cadet 710-0855

Bolt,Hex 1/4-20 x 1"
(Superseded to 710-0788)

$6.99

$

In Stock, only 4 left!

0

35

Cub Cadet 736-0173

Washer,1/4"STD

$3.99

$

In Stock, Qty 10

0

36

Cub Cadet 710-0106

Bolt,Hex 1/4-20 x 1-1/4"

$3.99

$

In Stock, only 1 left!

0

37

Cub Cadet 712-0287

Nut,Hex 1/4-20
(Superseded to 912-0287)

$4.49

$

In Stock, only 2 left!

0

38

Cub Cadet 736-0329

Lockwasher,Spring 1/4"
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 13

0

39

Cub Cadet AF-23789

Door Latch

$

$

Not available

40

Cub Cadet AF-1543-69

Washer,Nylon 21/64"

$3.99

$

Usually ships in 3-6 days

0

41

Cub Cadet 710-3032

Bolt,Hex 1/2-13 x 1-1/4"

$6.49

$

Usually ships in 3-6 days

0

42

Cub Cadet 712-0384

Nut,Hex Lock 1/2-13
(Superseded to 912-0384)

$6.49

$

In Stock, only 3 left!

0

43

Cub Cadet AF-43352

Washer,Flat 7/16"

$

$

Not available

44

Cub Cadet AF-43081

Washer,5/16"STD
(Superseded to 936-0159)

$

$

Not available

45

~N/A

Adapter,Deck

Note: Order Ref. No. 54

$

$

Not available

46

Cub Cadet AF-23560

Bracket,Deck Adapter

$

$

Not available

47

Cub Cadet 710-0451

Bolt,Carr.5/16"x 3/4"

$3.99

$

In Stock, Qty 20+

0

48

Cub Cadet AF-23825

Mounting Strap

$3.99

$

Usually ships in 3-6 days

0

49

Cub Cadet AF-23826

Angle Bracket

$

$

Not available

50

Cub Cadet AF-23827

Mounting Bracket

$

$

Not available

51

Cub Cadet AF-43749

Screw,Self Tap 5/16-18 x 3/4"

$

$

Not available

52

Cub Cadet 712-0421

Knob

$6.49

$

In Stock, Qty 20+

0

53

Impeller Housing Assembly

Note: Refer to "Impeller Housing Assembly" illustration and parts list

$

$

Not available

54

Cub Cadet AF-62468

Deck Adapter Kit

$323.99

$

Usually ships in 3-6 days

0

55

Cub Cadet 712-0429

Nut,Nylock 5/16-18

$3.99

$

In Stock, Qty 20+

0
