217 A (190-217A-100) - Cub Cadet 32 Cubic Feet Collection System Impeller Housing Assembly Parts Diagram

32 Cubic Feet Collection System

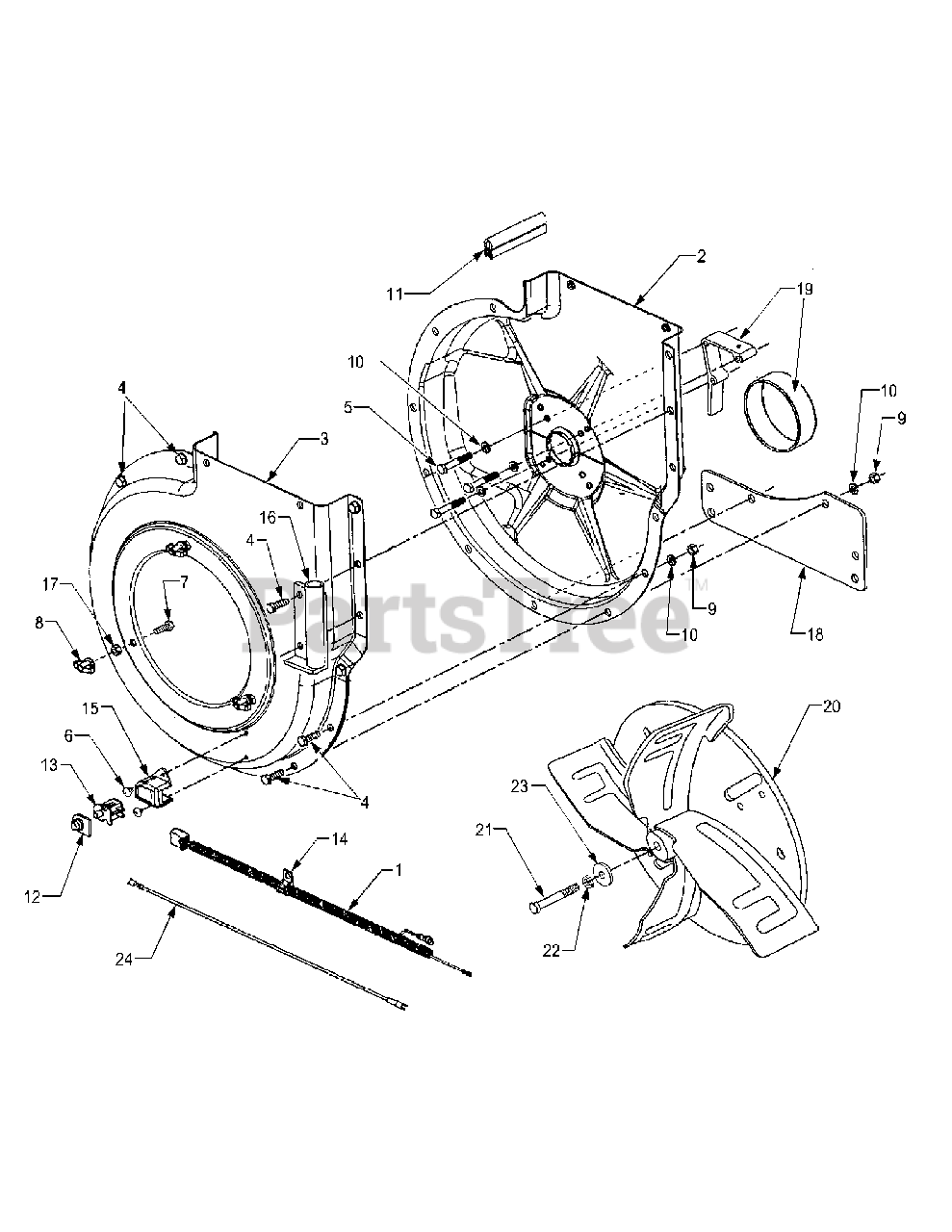

Impeller Housing Assembly Parts Diagram

  • Title

1

Cub Cadet 929-0241A

Harness,Wire

$57.99

$

Usually ships in 3-6 days

0

2

Cub Cadet AF-24634

Housing Ass'y.Inner

$89.99

$

Usually ships in 3-6 days

0

3

Cub Cadet AF-24633

Housing Ass'y.Outer

$105.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 710-3008

Bolt,Hex 5/16-18 x 3/4"

$3.99

$

In Stock, Qty 20+

0

5

Cub Cadet 710-0772

Bolt,Hex 5/16-24 x 2"

$4.49

$

Usually ships in 3-6 days

0

6

Cub Cadet 710-1268

Screw,Self Tap #10-16 x 3/8"

$3.99

$

In Stock, only 2 left!

0

7

Cub Cadet 710-0376

Bolt,Hex 5/16-18 x 1"

$3.99

$

In Stock, Qty 17

0

8

Cub Cadet 712-0421

Knob

$6.49

$

In Stock, Qty 20+

0

9

Cub Cadet 912-0158

Nut,Hex Lock 5/16-18

$3.49

$

In Stock, Qty 19

0

10

Cub Cadet 936-0119

Washer,Lock 5/16"Spring Type

$4.49

$

In Stock, Qty 20+

0

11

Cub Cadet 723-0438

Seal,Rubber

$9.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 925-1700

Cover,Switch

$11.99

$

In Stock, only 2 left!

0

13

Cub Cadet 925-3166

Snap Mount Switch

$15.99

$

In Stock, Qty 20+

0

14

Cub Cadet 726-0272

Clamp

$6.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 931-1613

Cover,Switch

$9.99

$

In Stock, only 2 left!

0

16

Cub Cadet AF-63226

Hose Hanger Bracket.Ass'y

$

$

Not available

17

Cub Cadet 712-3046

Nut,Hex Jam 5/16-18 Thd

$6.49

$

Usually ships in 3-6 days

0

18

Cub Cadet AF-24606

Spacer,Housing

$

$

Not available

19

Cub Cadet 719-0330A

Adapter,Mounting

Note: "L" Shape

$

$

Not available

19

Cub Cadet 719-0330B

Adapter,Mounting

Note: Full Circle

$

$

Not available

20

Cub Cadet AF-63924

Impeller Assembly
(Superseded to AF-66886)

$225.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 710-1273

Bolt,Hex 3/8-24 x 2-3/4"

$7.49

$

Usually ships in 3-6 days

0

22

Cub Cadet 936-0169

Lockwasher,3/8"
(Superseded to 736-0169)

$3.49

$

In Stock, Qty 20+

0

23

Cub Cadet 736-0247

Flat Washer,13/32"x 1-1/4"

$8.99

$

In Stock, Qty 20+

0

24

Cub Cadet 629-0923

Harness Adapter

$18.99

$

Usually ships in 3-6 days

0
