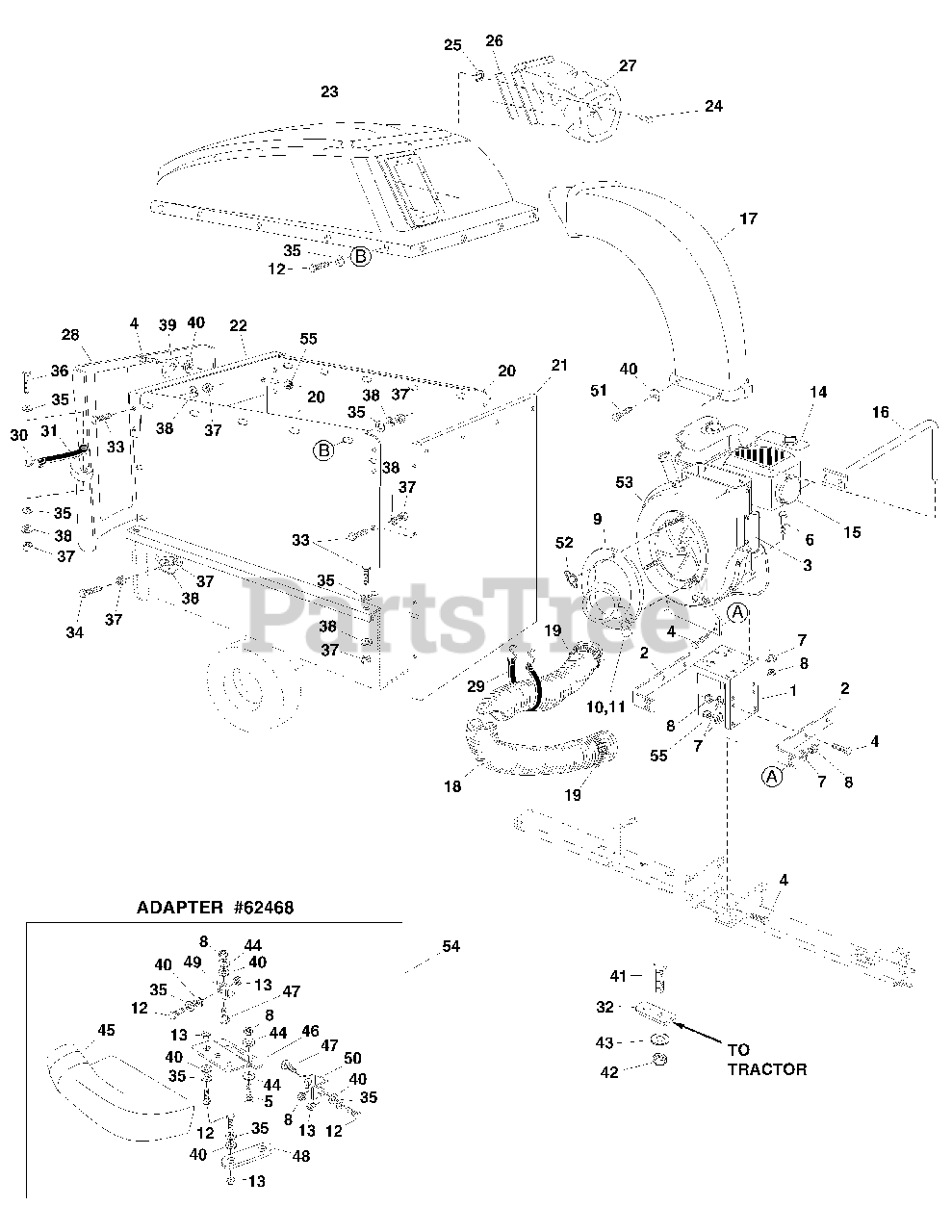

217 B (190-217B-100) - Cub Cadet 32 Cubic Feet Collection System General Assembly Parts Diagram

32 Cubic Feet Collection System

General Assembly Parts Diagram

  • Title

1

Cub Cadet AF-24080

Engine Base

$

$

Not available

2

Cub Cadet AF-24078

Brace, Housing

$

$

Not available

3

Cub Cadet AF-63226

Hose Hanger Bracket Ass'y.

$

$

Not available

4

Cub Cadet AF-43182

Bolt, Hex 5/16-18 x 3/4"

$1.49

$

Usually ships in 3-6 days

0

5

Cub Cadet AF-43063

Bolt, Hex 5/16-18 x 1"
(Superseded to 710-0376)

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet AF-43085

Bolt, Hex 5/16-18 x 1-1/2"
(Superseded to 710-0805A)

$4.99

$

In Stock, Qty 7

0

7

Cub Cadet AF-43086

Lockwasher, 5/16" Spring Type

$

$

Currently unavailable

8

Cub Cadet AF-43064

Nut, Hex Lock 5/16-18
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 14

0

9

Cub Cadet AF-63375

Assembly, Hose Adapter (Nozzle) (Includes items 10 and 11))
(Superseded to AF-43791)

$150.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 781-0635

Bracket, Switch (Actuator)

$9.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 728-3001

Rivet, Pop 5/32"

$

$

Currently unavailable

12

Cub Cadet AF-43012

Bolt, Hex 1/4-20 x 3/4"
(Superseded to 710-3015)

$4.49

$

In Stock, Qty 20+

0

13

Cub Cadet AF-43013

Nut, Hex Lock 1/4-20 Thd.
(Superseded to 912-0291)

$

$

Not available

14

Engine, B & S 5 HP 110412-0158-E1

$

$

Not available

15

Cub Cadet AF-222261

Deflector, Muffler

$

$

Not available

16

Cub Cadet AF-63227

Hose Hanger Rod Ass'y.
(Superseded to AF-49974)

$

$

Not available

17

Cub Cadet AF-46420

Elbow

$292.99

$

In Stock, only 1 left!

0

18

Cub Cadet AF-43792

Hose (6" x 84")
(Superseded to AF-41882)

$202.99

$

Usually ships in 3-6 days

0

19

Cub Cadet AF-43793

Hose Clamp 6"

$16.99

$

Usually ships in 3-6 days

0

20

Cub Cadet AF-24678

Side Panel Cart Extension

Variations

AF-24678-0498

Cub Cadet AF-24678-0498

EXTENSION-CART SID - OLD CUB YELLOW (0498)

$

$

Not available

$

$

21

Cub Cadet AF-24679

Front Panel Cart Extension

Variations

AF-24679-0498

Cub Cadet AF-24679-0498

FRONT CART EXTENSION - OLD CUB YELLOW (0498)

$

$

Not available

$

$

22

Cub Cadet AF-23836

Cross Brace

$

$

Not available

23

Cub Cadet AF-64244

Hard Top Assembly (Includes 24,25,26,27)

$

$

Not available

24

Cub Cadet AF-43882

Rivet, 3/16"

$4.49

$

Usually ships in 3-6 days

0

25

Cub Cadet AF-43910

Washer, Flat 3/16"
(Superseded to 936-0400)

$

$

Not available

26

Cub Cadet AF-24798

Boot Mounting Strap

$

$

Not available

27

Cub Cadet AF-48133

Hard top Boot

$51.99

$

Usually ships in 3-6 days

0

28

Cub Cadet AF-44790

Poly Rear Door

$262.99

$

Usually ships in 3-6 days

0

29

Cub Cadet AF-43790

Strap, Tarp 25"

$

$

Not available

30

Cub Cadet AF-44849

S Hook, #32

$11.99

$

Usually ships in 3-6 days

0

31

Cub Cadet AF-44850

Strap, Tarp (Less Hooks)

$

$

Not available

32

Cub Cadet AF-23540

Hitch Plate

$

$

Not available

33

Cub Cadet AF-43866

Bolt, Hex 1/4-20 x 5/8"

$

$

Not available

34

Cub Cadet AF-43661

Bolt, Hex 1/4-20 x 1"
(Superseded to 710-0597)

$4.49

$

Usually ships in 3-6 days

0

35

Cub Cadet AF-43088

Washer, 1/4" STD

$3.99

$

Usually ships in 3-6 days

0

36

Cub Cadet AF-1509-90

Bolt, Hex 1/4-20 x 1-1/4"
(Superseded to 710-0106)

$4.49

$

In Stock, Qty 12

0

37

Cub Cadet AF-43178

Nut, Hex 1/4-20

$

$

Currently unavailable

38

Cub Cadet AF-43177

Lockwasher, Spring 1/4"

$

$

Currently unavailable

39

Cub Cadet AF-23789

Door Latch

$

$

Not available

40

Cub Cadet AF-1543-69

Washer, Nylon 21/64"

$4.49

$

Usually ships in 3-6 days

0

41

Cub Cadet AF-43351

Bolt, Hex 1/2-13 x 1-1/4"

$

$

Currently unavailable

42

Cub Cadet AF-43262

Nut, Hex Lock 1/2-13
(Superseded to 912-0384)

$7.49

$

In Stock, only 3 left!

0

43

Cub Cadet AF-43352

Washer, Flat 7/16"

$

$

Not available

44

Cub Cadet AF-43081

Washer, 5/16" STD
(Superseded to 936-0159)

$

$

Not available

45

Cub Cadet AF-43830

Adapter, Deck

$87.99

$

Usually ships in 3-6 days

0

46

Cub Cadet AF-23560

Bracket, Deck Adapter

$

$

Not available

47

Cub Cadet AF-43080

Bolt, Carr. 5/16" x 3/4"
(Superseded to 710-0451)

$4.49

$

In Stock, Qty 20+

0

48

Cub Cadet AF-23825

Mounting Strap

$3.99

$

Usually ships in 3-6 days

0

49

Cub Cadet AF-23826

Angle Bracket

$

$

Not available

50

Cub Cadet AF-23827

Mounting Bracket

$

$

Not available

51

Cub Cadet AF-47630

Screw, Self Tap 5/16-18 x 3/4"

$

$

Currently unavailable

52

Cub Cadet 712-0421

Knob

$7.49

$

In Stock, only 3 left!

0

53

Impeller Housing Assembly

$

$

Not available

54

Cub Cadet AF-62468

Deck Adapter Kit

$368.99

$

Usually ships in 3-6 days

0

55

Cub Cadet AF-47810

Nut, Nylock 5/16-18
(Superseded to 912-0429)

$4.49

$

In Stock, Qty 20+

0
