217 D (190-217D-100) - Cub Cadet 32 Cubic Feet Collection System att Impeller Housing Parts Diagram

32 Cubic Feet Collection System

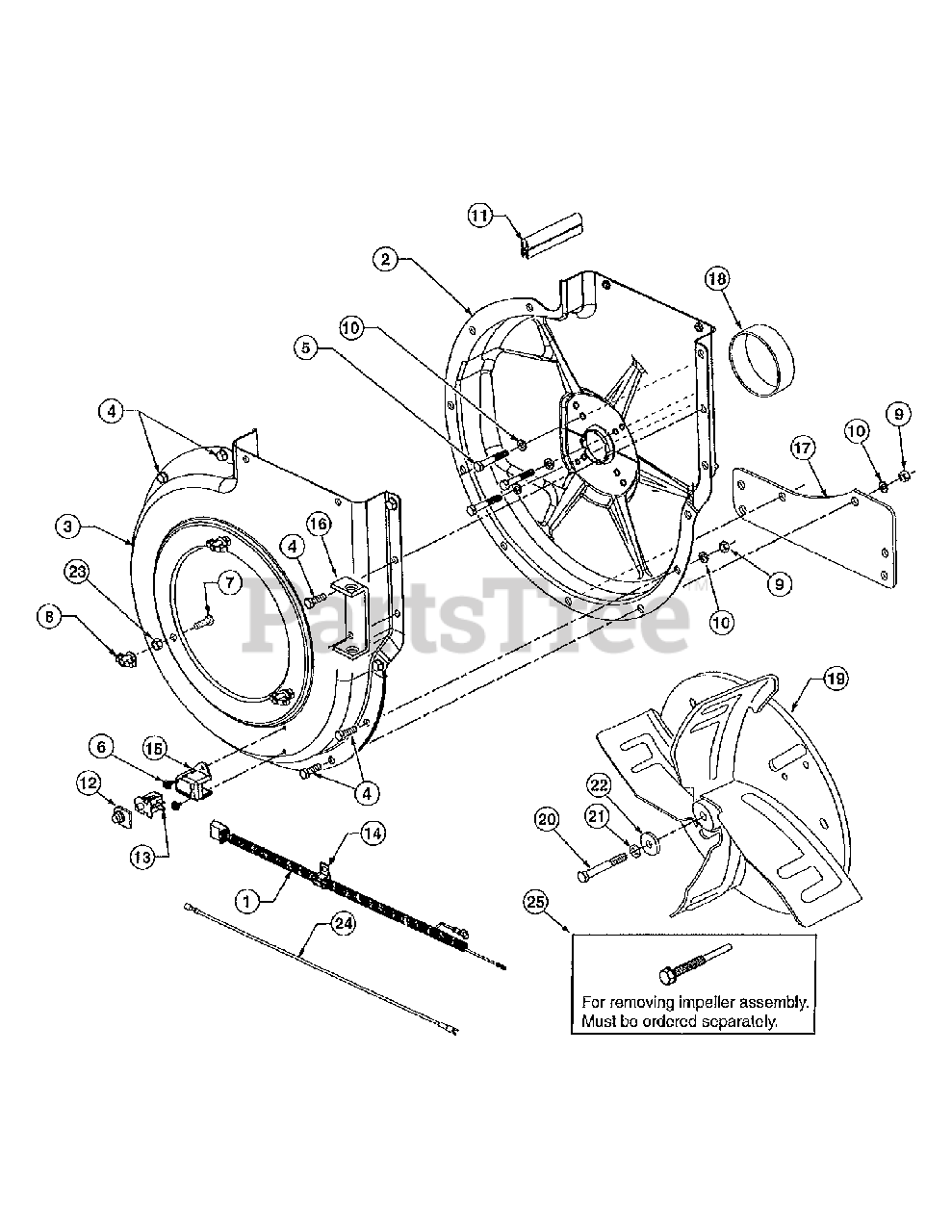

Impeller Housing Parts Diagram

  • Title

1

Cub Cadet 929-0241A

Harness, Wire

$65.99

$

Usually ships in 3-6 days

0

2

Cub Cadet AF-24634

Housing Ass'y. Inner

$89.99

$

Usually ships in 3-6 days

0

3

Cub Cadet AF-24633

Housing Ass'y. Outer

$119.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 710-3008

Bolt, Hex 5/16-18 x 3/4"

$4.49

$

In Stock, Qty 20+

0

5

Cub Cadet 710-0772

Bolt, Hex 5/16-24 x 2"

$4.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 710-1268

Screw, SelfTap #10-16 x3/8"

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet 710-0376

Bolt, Hex 5/16-18 x 1"

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 712-0421

Knob

$7.49

$

In Stock, only 3 left!

0

9

Cub Cadet 712-0158

Nut, Nylock Jam 5/16-18
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 14

0

10

Cub Cadet 736-0119

Lock Washer, 5/16"
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

11

Cub Cadet 723-0438

Seal, Rubber

$10.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 925-1700

Cover, Switch

$12.99

$

In Stock, only 2 left!

0

13

Cub Cadet 925-3166

Snap Mount Switch

$17.99

$

In Stock, Qty 20+

0

14

Cub Cadet 726-0272

Clamp

$7.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 931-1613

Cover, Switch

$11.99

$

In Stock, only 2 left!

0

16

Cub Cadet AF-24958

Hose Hanger Bracket

$

$

Not available

17

Cub Cadet AF-24606

Spacer, Housing

$

$

Not available

18

Cub Cadet 719-0330B

Adapter, Mounting

$

$

Not available

19

Cub Cadet AF-66886

Impeller Assembly

$257.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 710-1273

Bolt, Hex 3/8-24 x 2-3/4"

$8.49

$

Usually ships in 3-6 days

0

21

Cub Cadet 936-0169

Lockwasher, 3/8"
(Superseded to 736-0169)

$3.99

$

In Stock, Qty 20+

0

22

Cub Cadet 736-0247

Flat Washer, 13/32" x 1-1/4"

$10.99

$

In Stock, Qty 20+

0

23

Cub Cadet 712-3046

Nut, 5/16-18

$7.49

$

Usually ships in 3-6 days

0

24

Cub Cadet 629-0923

Harness Adapter

$21.99

$

Usually ships in 3-6 days

0

25

Cub Cadet n/a

Impeller Service Tool

$

$

Currently unavailable
