217 E (190-217E-100) - Cub Cadet 32 Cubic Feet Collection System General Assembly Parts Diagram

32 Cubic Feet Collection System

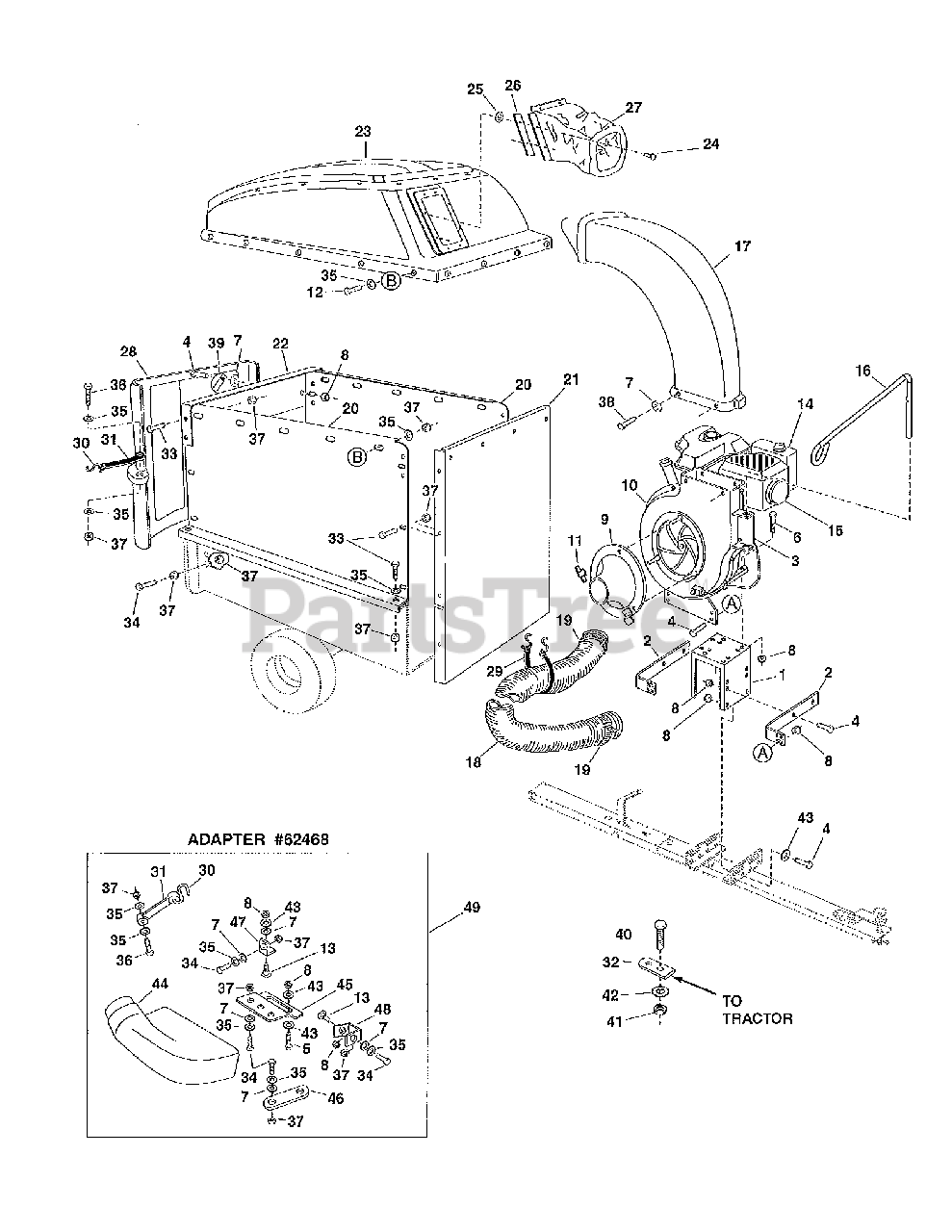

General Assembly Parts Diagram

  • Title

1

Cub Cadet AF-24080

Engine Base

$

$

Not available

2

Cub Cadet AF-24078

Brace, Housing

$

$

Not available

3

Cub Cadet AF-63226

Hose Hanger Bracket Ass'y.

$

$

Not available

4

Cub Cadet 710-3008

Bolt, Hex 5/16-18 x 3/4"

$4.49

$

In Stock, Qty 20+

0

5

Cub Cadet 710-0376

Bolt, Hex5/16-18 x 1-1/4"

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 710-0805

Bolt, Hex5/16-18 x 1-1/2"
(Superseded to 710-0805A)

$4.99

$

In Stock, Qty 20+

0

7

Cub Cadet AF-1543-69

Washer, Nylon 21/64"

$4.49

$

Usually ships in 3-6 days

0

8

Cub Cadet 912-0429

Nut, Hex Nylock 5/16-18
(Superseded to 712-0429)

$4.49

$

In Stock, Qty 20+

0

9

Cub Cadet AF-43791

Hose Adapter

$150.99

$

Usually ships in 3-6 days

0

10

Impeller Housing Assembly

Note: Refer to "Impeller Housing " page

$

$

Not available

11

Cub Cadet 712-0421

Knob (See Item #8, Page 22)

$7.49

$

Usually ships in 3-6 days

0

12

Cub Cadet 710-3015

Bolt, Hex 1/4-20 x 3/4"

$4.49

$

In Stock, Qty 20+

0

13

Cub Cadet 710-0451

Bolt, Carr. 5/16" x 3/4"

$4.49

$

In Stock, Qty 20+

0

14

Cub Cadet n/a

Engine (49 State)

$

$

Currently unavailable

14

Cub Cadet n/a

Engine (California)

$

$

Currently unavailable

15

Cub Cadet AF-222261

Deflector, Muffler

$

$

Not available

16

Cub Cadet AF-49974

Hose Hanger Rod

$

$

Not available

17

Cub Cadet AF-46420

Elbow

$292.99

$

In Stock, only 1 left!

0

18

Cub Cadet AF-41882

Hose (6" x 84")

$202.99

$

Usually ships in 3-6 days

0

19

Cub Cadet AF-43793

Hose Clamp 6"

$16.99

$

Usually ships in 3-6 days

0

20

Cub Cadet AF-24678

Side Panel Cart Extension

Variations

AF-24678-0498

Cub Cadet AF-24678-0498

EXTENSION-CART SID - OLD CUB YELLOW (0498)

$

$

Not available

$

$

21

Cub Cadet AF-24679

Front Panel Cart Extension

Variations

AF-24679-0498

Cub Cadet AF-24679-0498

FRONT CART EXTENSION - OLD CUB YELLOW (0498)

$

$

Not available

$

$

22

Cub Cadet AF-23836

Cross Brace

$

$

Not available

23

Cub Cadet AF-64244

Hard Top Assembly

Note: (Includes 24,25,26,27)

$

$

Not available

24

Cub Cadet AF-43882

Rivet, 3/16"

$4.49

$

Usually ships in 3-6 days

0

25

Cub Cadet 936-0400

Washer, Flat 3/16"
(Superseded to 736-0400)

$

$

Not available

26

Cub Cadet AF-24798

Boot Mounting Strap

$

$

Not available

27

Cub Cadet AF-48133

Hard top Boot

$51.99

$

In Stock, only 1 left!

0

28

Cub Cadet AF-44790

Poly Rear Door

$262.99

$

Usually ships in 3-6 days

0

29

Cub Cadet AF-43790

Strap, Tarp 25" "S"

$

$

Not available

30

Cub Cadet AF-44849

Hook, #32

$11.99

$

Usually ships in 3-6 days

0

31

Cub Cadet AF-44850

Strap, Tarp (Less Hooks)

$

$

Not available

32

Cub Cadet AF-23540

Hitch Plate

$

$

Not available

33

Cub Cadet AF-43866

Bolt, Hex 1/4-20 x 5/8"

$

$

Not available

34

Cub Cadet AF-43661

Bolt, Hex 1/4-20 x 1"
(Superseded to 710-0597)

$4.49

$

In Stock, Qty 11

0

35

Cub Cadet AF-43088

Washer, 1/4" STD

$3.99

$

Usually ships in 3-6 days

0

36

Cub Cadet 710-0106

Bolt, Hex 1/4-20 x 1-1/4"

$4.49

$

In Stock, Qty 12

0

37

Cub Cadet 712-0324

Nut, Hex Nylock 1/4-20

$3.99

$

In Stock, only 2 left!

0

38

Cub Cadet AF-43749

Screw, SelfTap 5/16-18 x 3/4"

$

$

Not available

39

Cub Cadet AF-23789

Door Latch

$

$

Not available

40

Cub Cadet 710-3032

Bolt, Hex 1/2-13 x 1-1/4"

$6.99

$

Usually ships in 3-6 days

0

41

Cub Cadet 712-3083

Nut, Hex Nylock 1/2-13

$4.99

$

In Stock, Qty 20+

0

42

Cub Cadet AF-43352

Washer, Flat 7/16"

$

$

Not available

43

Cub Cadet 936-0159

Washer, 5/16" STD
(Superseded to 736-0159)

$

$

Not available

44

Cub Cadet AF-43830

Adapter, Deck

$87.99

$

Usually ships in 3-6 days

0

45

Cub Cadet AF-23560

Bracket, Deck Adapter

$

$

Not available

46

Cub Cadet AF-23825

Mounting Strap

$3.99

$

Usually ships in 3-6 days

0

47

Cub Cadet AF-23826

Angle Bracket

$

$

Not available

48

Cub Cadet AF-23827

Mounting Bracket

$

$

Not available

49

Cub Cadet AF-62468

Deck Adapter Kit

Note: See Owner's manual

$368.99

$

Usually ships in 3-6 days

0
