21711 - Toro Guardian Walk-Behind Mower (SN: 004000001 - 004999999) (1974) HANDLE ASSEMBLY MODEL NO. 21610 Parts Diagram

Guardian Walk-Behind Mower

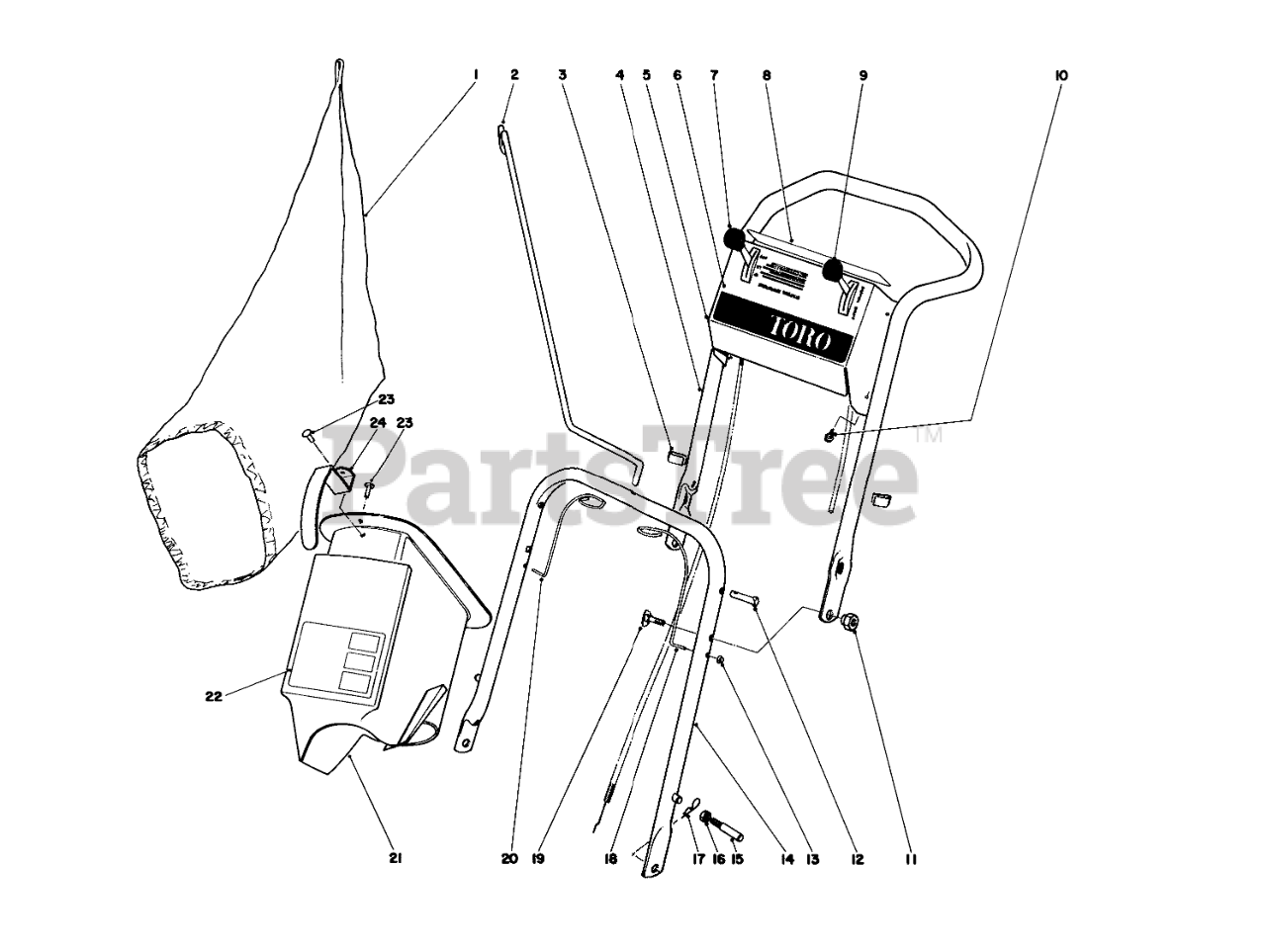

HANDLE ASSEMBLY MODEL NO. 21610 Parts Diagram

  • Title

1

Toro 6-0929

BAG REPLACMNT44-0540
(Superseded to 44-0540)

$85.99

$

In Stock, only 2 left!

0

2

Toro 22-6110

Bag Rod
(Superseded to 19-4210)

$

$

Not available

3

Toro 218-466

CLIP

$

$

Not available

4

Toro 17-4390

Upper Handle
(Superseded to 17-4400)

$199.99

$

Usually ships in 3-6 days

0

5

Toro 17-4520

Control Plate

$

$

Not available

6

Toro 20-2690

Decal Control Plate

$

$

Currently unavailable

7

Toro 20-4600

Control Throttle
(Superseded to 46-6010)

$60.99

$

Usually ships in 3-6 days

0

8

Toro 17-4800

Decal, Safety

$

$

Currently unavailable

9

Toro 20-4880

Traction Control
(Superseded to 46-6040)

$

$

Not available

10

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

11

Toro 17-7010

Pivot Nut

$

$

Not available

12

Toro 17-4680

Latch Pin

$

$

Not available

13

Toro 3290-299

CLIP

$

$

Not available

14

Toro 17-7490

Lower Handle

$

$

Currently unavailable

15

Toro 17-9380

HANDLE PIN

Note: Service Replacement Parts Only.

$

$

Not available

16

Toro 32146-8

Nut
(Superseded to 32153-4)

Note: Service Replacement Parts Only.

$0.99

$

Usually ships in 3-6 days

0

17

Toro 3290-255

PIN-COTTER, HAIR

$8.99

$

In Stock, only 1 left!

0

18

Toro 17-4660

Latch Spring L.H.

$

$

Currently unavailable

19

Toro 6-6330

HANDLE SCREW

$

$

Not available

20

Toro 17-4670

Latch Spring R.H.

$

$

Not available

21

Toro 6-1089

Grass Chute (Incl. Ref. #22-24)

$

$

Not available

22

Toro 22-4870

Decal Instructions

$

$

Currently unavailable

23

Toro 3290-368

Rivet

$

$

Currently unavailable

24

Toro 20-4650

HANDLE-GRASS CHUTE

$

$

Not available

Toro 20-2480

Loose Parts Bag

Note: Not illustrated

$

$

Currently unavailable
