21711 - Toro Guardian Walk-Behind Mower (SN: 004000001 - 004999999) (1974) Handle Assembly Model No. 21711 Parts Diagram

Guardian Walk-Behind Mower

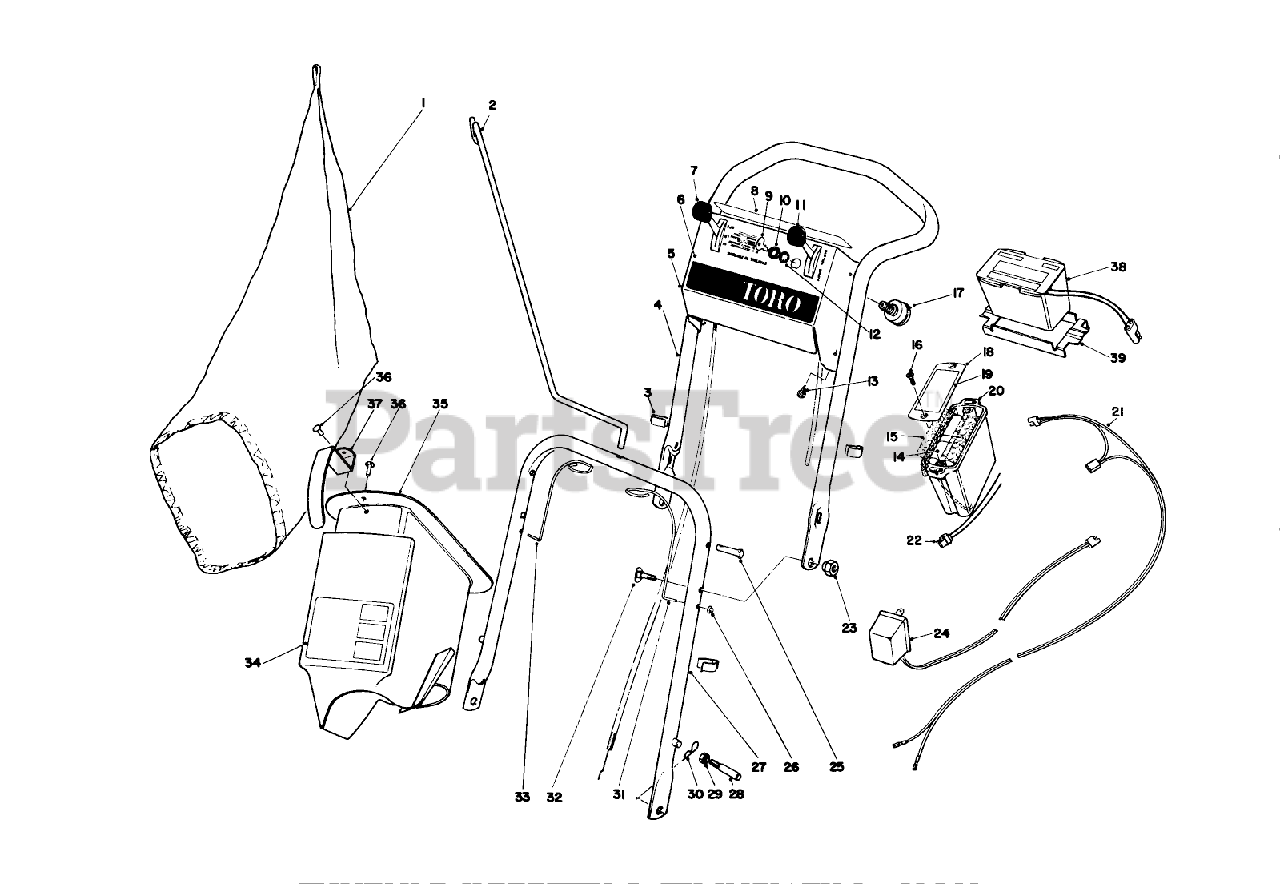

Handle Assembly Model No. 21711 Parts Diagram

  • Title

1

Toro 6-0929

See Supercession: 44-0540
(Superseded to 44-0540)

$108.99

$

In Stock, only 1 left!

0

2

Toro 22-6110

See Supercession: 19-4210
(Superseded to 19-4210)

$

$

Not available

3

Toro 218-465

BOWDEN CLIP

$

$

Not available

4

Toro 17-4390

See Supercession: 17-4400
(Superseded to 17-4400)

$262.99

$

Usually ships in 3-6 days

0

5

Toro 21-5160

DISCONTINUED

$

$

Not available

6

Toro 20-6800

Decal-Control Plate

$

$

Currently unavailable

7

Toro 20-4600

See Supercession: 46-6010
(Superseded to 46-6010)

$

$

Not available

8

Toro 17-4800

Decal, Safety

$

$

Currently unavailable

9

Toro 218-412

See Supercession: 62-7770
(Superseded to 62-7770)

$5.49

$

In Stock, Qty 14

0

10

Toro 218-461

NUT-HH

$3.99

$

In Stock, Qty 9

0

11

Toro 20-4880

See Supercession: 46-6040
(Superseded to 46-6040)

$

$

Not available

12

Toro 3254-5

WASHER-LOCK

$1.49

$

In Stock, Qty 8

0

13

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 5

0

14

Toro 11-7260

DISCONTINUED

Note: Note: Check your unit before ordering Battery 14 or 38 as to which battery is used on unit.

$

$

Not available

15

Toro 6-8320

DISCONTINUED

$

$

Not available

16

Toro 32104-93

DISCONTINUED

$

$

Not available

17

Toro 21-5190

STARTER SWITCH

$

$

Not available

18

Toro 6-8230

DISCONTINUED

$

$

Not available

19

Toro 8-5600

Decal

$

$

Currently unavailable

20

Toro 6-9750

DISCONTINUED

$

$

Not available

21

Toro 21-5500

Wiring Harness

$

$

Currently unavailable

22

Toro 11-3790

DISCONTINUED
(Superseded to 49-8141)

$

$

Not available

23

Toro 17-7010

DISCONTINUED

$

$

Not available

24

Toro 6-9780

See Supercession: 131-0848
(Superseded to 131-0848)

$74.99

$

Usually ships in 3-6 days

0

25

Toro 17-4680

DISCONTINUED PER DAVE

$

$

Not available

26

Toro 3290-299

DISCONTINUED

$

$

Not available

27

Toro 17-7490

Lower Handle

$

$

Currently unavailable

28

Toro 17-9380

HANDLE PIN

Note: Service Replacement Parts Only.

$

$

Not available

29

Toro 32146-8

See Supercession: 32153-4
(Superseded to 32153-4)

Note: Service Replacement Parts Only.

$0.99

$

Usually ships in 3-6 days

0

30

Toro 3290-255

PIN-COTTER, HAIR

$9.49

$

In Stock, only 1 left!

0

31

Toro 17-4660

Latch Spring L.H.

$

$

Currently unavailable

32

Toro 6-6330

DISCONTINUED

$

$

Not available

33

Toro 17-4670

DISCONTINUED PER DAVE

$

$

Not available

34

Toro 22-4870

Decal Instructions

$

$

Currently unavailable

35

Toro 6-1089

DISCONTINUED

$

$

Not available

36

Toro 3290-368

Rivet

$

$

Currently unavailable

37

Toro 20-4650

DISCONTINUED

$

$

Not available

38

Toro 18-8810

DISCONTINUED XREF

Note: Note: Check your unit before ordering Battery 14 or 38 as to which battery is used on unit.

$

$

Not available

39

Toro 20-0170

Adapter

$

$

Currently unavailable

Toro 20-6760

Loose Parts Bag

Note: Not illustrated

$

$

Currently unavailable

Toro 5-3556

Starter Rope

Note: Not illustrated

$

$

Currently unavailable
