21711 - Toro Guardian Walk-Behind Mower (SN: 005000001 - 005999999) (1975) HANDLE ASSEMBLY MODEL NO. 21610 Parts Diagram

Guardian Walk-Behind Mower

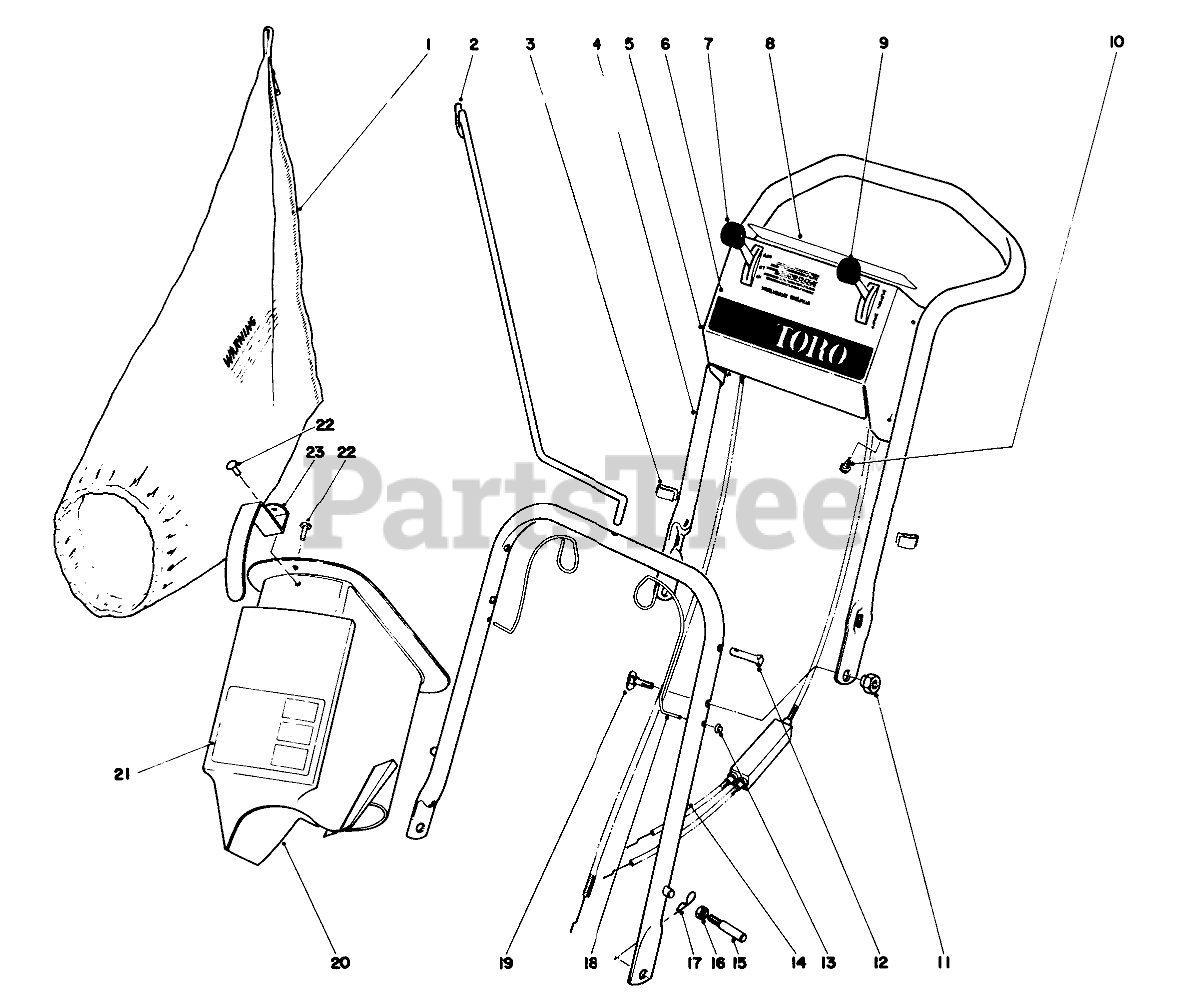

HANDLE ASSEMBLY MODEL NO. 21610 Parts Diagram

  • Title

1

Toro 6-4929

Grass Bag

$

$

Currently unavailable

2

Toro 20-4590

Bag Rod
(Superseded to 47-5830)

$45.99

$

Usually ships in 3-6 days

0

3

Toro 218-466

CLIP

$

$

Not available

4

Toro 17-4400

UPPER HANDLE

$199.99

$

Usually ships in 3-6 days

0

5

Toro 25-0410

Control Plate

$

$

Not available

6

Toro 20-2690

Decal Control Plate

$

$

Currently unavailable

7

Toro 20-4600

Control Throttle
(Superseded to 46-6010)

$60.99

$

Usually ships in 3-6 days

0

8

Toro 22-8140

Decal Safety Instructions

$

$

Currently unavailable

9

Toro 25-1040

Control Traction
(Superseded to 46-6050)

$

$

Not available

10

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

11

Toro 17-7010

Pivot Nut

$

$

Not available

12

Toro 174680

Pin Latch

$

$

Currently unavailable

13

Toro 3290-299

CLIP

$

$

Not available

14

Toro 17-7490

Lower Handle

$

$

Currently unavailable

15

Toro 17-9380

HANDLE PIN

Note: Service Replacement Parts Only

$

$

Not available

16

Toro 32146-8

Nut
(Superseded to 32153-4)

Note: Service Replacement Parts Only

$0.99

$

Usually ships in 3-6 days

0

17

Toro 3290-255

PIN-COTTER, HAIR

$8.99

$

In Stock, only 1 left!

0

18

Toro 23-9110

Spring Latch

$

$

Currently unavailable

19

Toro 6-6330

HANDLE SCREW

$

$

Not available

20

Toro 6-1089

Grass Chute (Incl. Ref. #21-23)

$

$

Not available

21

Toro 22-4870

Decal Instructions

$

$

Currently unavailable

22

Toro 3295-26

RIVET 3/16 X 7/16

$6.99

$

Usually ships in 3-6 days

0

23

Toro 204650

Handle Chute

$

$

Currently unavailable

Toro 20-2480

Loose Parts Bag

Note: Not illustrated

$

$

Currently unavailable
