21738 - Toro Whirlwind Walk-Behind Mower (SN: 008000001 - 008999999) (1978) Handle Assembly Model No. 21738 Parts Diagram

Whirlwind Walk-Behind Mower

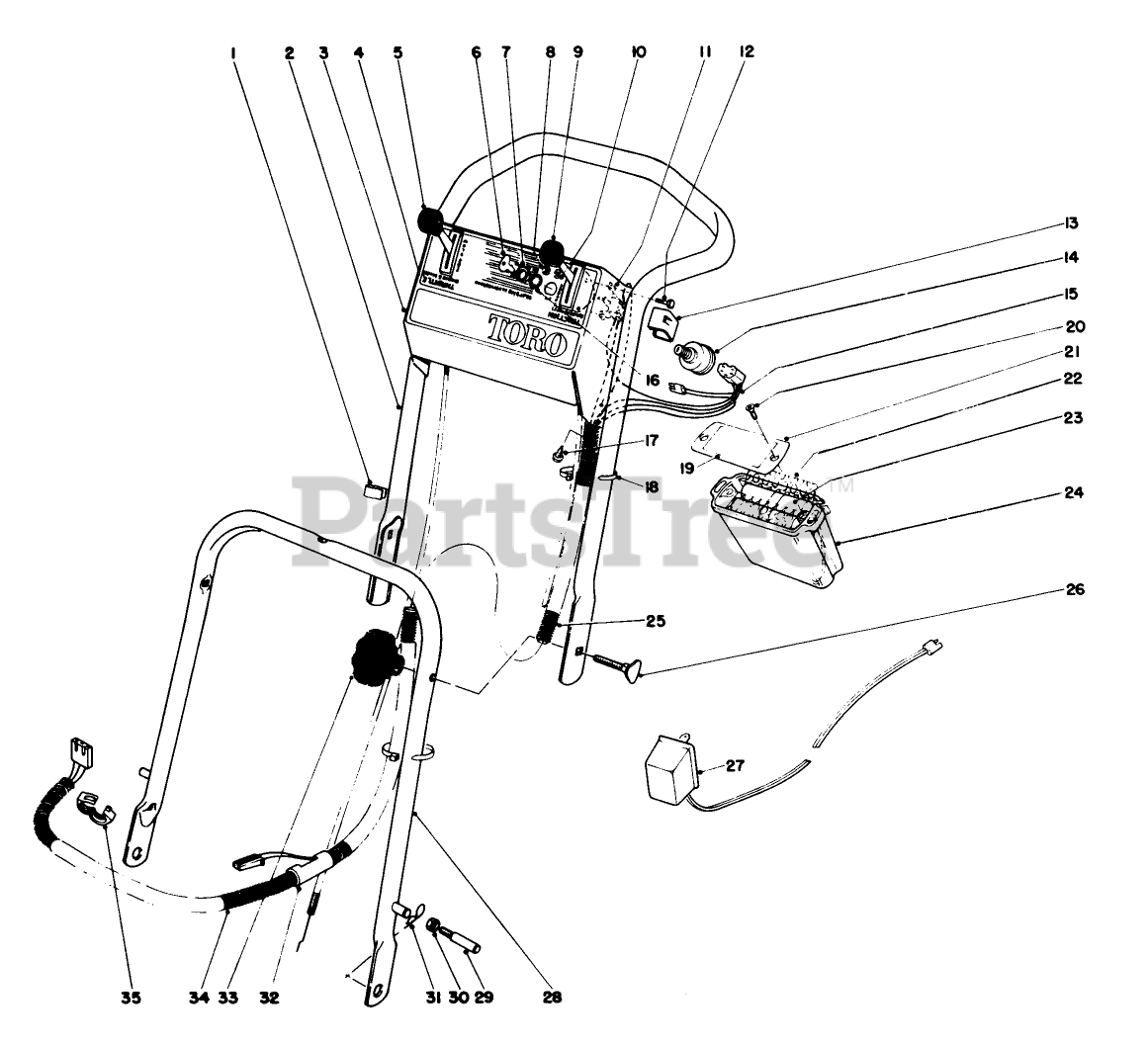

Handle Assembly Model No. 21738 Parts Diagram

  • Title

1

Toro 218-466

DISCONTINUED

$

$

Not available

2

Toro 26-0540

UPPER HANDLE

$369.99

$

Usually ships in 3-6 days

0

3

Toro 21-5160

DISCONTINUED

$

$

Not available

4

Toro 26-2220

DISCONTINUED

$

$

Not available

5

Toro 33-2546

See Supercession: 46-6010
(Superseded to 46-6010)

$

$

Not available

6

Toro 218-412

See Supercession: 62-7770
(Superseded to 62-7770)

$5.49

$

In Stock, Qty 14

0

7

Toro 218-461

NUT-HH

$3.99

$

In Stock, Qty 9

0

8

Toro 3296-9

NUT-HEX

$0.99

$

In Stock, Qty 10

0

9

Toro 33-2556

See Supercession: 46-6050
(Superseded to 46-6050)

$

$

Not available

10

Toro 3256-21

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

11

Toro 24-9760

CONTROL SWITCH

$130.99

$

Usually ships in 3-6 days

0

12

Toro 3290-124

DISC PREC HUSKY

$

$

Not available

13

Toro 25-1590

DISCONTINUED

$

$

Not available

14

Toro 23-0660

SWITCH-STARTER

$25.99

$

In Stock, only 4 left!

0

15

Toro 25-0090

DISCONTINUED

$

$

Not available

16

Toro 3254-5

WASHER-LOCK

$1.49

$

In Stock, Qty 8

0

17

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 5

0

18

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 9

0

19

Toro 25-4020

DISCONTINUED

$

$

Not available

20

Toro 32104-93

DISCONTINUED

$

$

Not available

21

Toro 6-8230

DISCONTINUED

$

$

Not available

22

Toro 6-8320

DISCONTINUED

$

$

Not available

23

Toro 24-7750

DISCONTINUED PRC4

$

$

Not available

24

Toro 6-9750

DISCONTINUED

$

$

Not available

25

Toro 25-5650

DISCONTINUED

$

$

Not available

26

Toro 17-9420

SCREW-HANDLE

$3.99

$

Usually ships in 3-6 days

0

27

Toro 6-9780

See Supercession: 131-0848
(Superseded to 131-0848)

$74.99

$

Usually ships in 3-6 days

0

28

Toro 26-0520

See Supercession: 42-1480
(Superseded to 42-1480)

$

$

Not available

29

Toro 17-9380

HANDLE PIN

Note: Service Replacement Parts

$

$

Not available

30

Toro 32146-8

See Supercession: 32153-4
(Superseded to 32153-4)

Note: Service Replacement Parts

$0.99

$

Usually ships in 3-6 days

0

31

Toro 3290-255

PIN-COTTER, HAIR

$9.49

$

In Stock, only 1 left!

0

32

Toro 2412-49

DISCONTINUED

$

$

Not available

33

Toro 19-4050

KNOB

$18.99

$

In Stock, only 2 left!

0

34

Toro 25-5660

DISCONTINUED

$

$

Not available

35

Toro 2412-48

RING FITTING

$

$

Not available

Toro 33-2930

DISCONTINUED

Note: Not illustrated

$

$

Not available

Toro 8-0269

Loose Parts

Note: Not illustrated

$

$

Currently unavailable

Toro 11-3790

DISCONTINUED
(Superseded to 49-8141)

Note: Not illustrated

$

$

Not available
