21738 - Toro Whirlwind Walk-Behind Mower (SN: 009000001 - 009999999) (1979) HOUSING ASSEMBLY Parts Diagram

Whirlwind Walk-Behind Mower

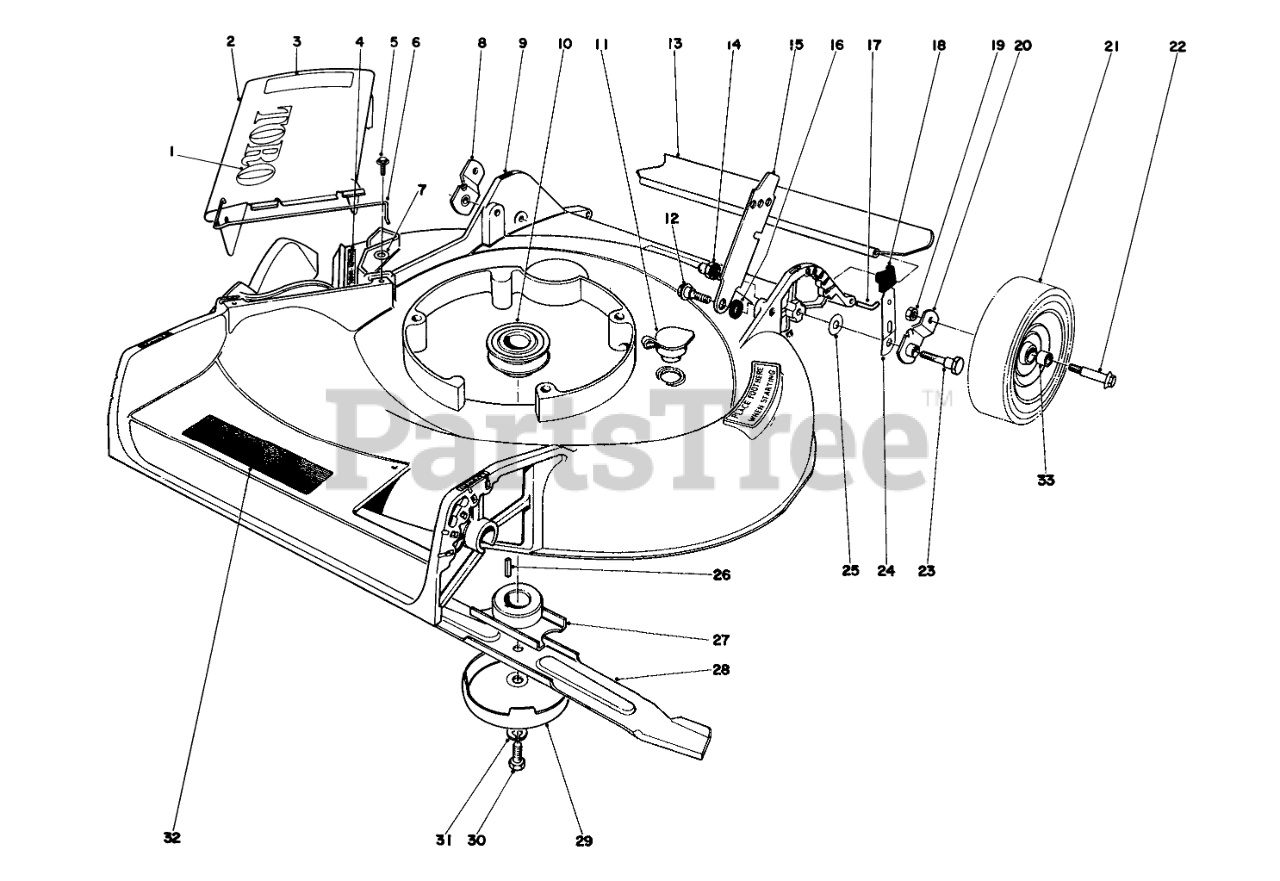

HOUSING ASSEMBLY Parts Diagram

  • Title

1

Toro 20-4690

TORO LOGO DECAL

$7.99

$

Usually ships in 3-6 days

0

2

Toro 20-2800

Deflector Cover Assembly (Incl. Ref. #1, 3 & 6)
(Superseded to 13-4049)

$

$

Not available

3

Toro 20-4330

Caution Decal

$

$

Not available

4

Toro 22-7350

Decal

$

$

Not available

5

Toro 12-3270

SCREW

$3.49

$

In Stock, only 2 left!

0

6

Toro 20-2640

SPRING HINGE

$

$

Not available

7

Toro 3256-1

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

8

Toro 20-2130

Pivot Arm
(Superseded to 98-1527)

$

$

Not available

9

Toro 8-0649

Housing

$

$

Not available

10

Toro 21-5580

DRIVER PULLEY

$

$

Not available

11

Toro 6-4500

WASHOUT PLUG

$

$

Not available

12

Toro 5-2490

SCREW-SHOULDER

$9.49

$

Usually ships in 3-6 days

0

13

Toro 22-4950

REAR SAFETY SHIELD 21

$

$

Not available

14

Toro 12-2080

HANDLE PIVOT NUT

$22.99

$

Usually ships in 3-6 days

0

15

Toro 5-2446

Latch
(Superseded to 43-1550)

$

$

Not available

16

Toro 3-3287

SPACER

$5.49

$

In Stock, only 4 left!

0

17

Toro 33-3201

SHIELD ROD

$

$

Not available

18

Toro 25-7740

KNOB-ARM

$4.99

$

In Stock, Qty 12

0

19

Toro 32146-6

Nut
(Superseded to 3296-6)

$1.99

$

In Stock, Qty 20+

0

20

Toro 20-2140

Pivot Arm
(Superseded to 98-1511)

$34.99

$

Usually ships in 3-6 days

0

21

Toro 27-6200

WHEEL TIRE ASM 8 IN

$

$

Not available

22

Toro 27-6230

BOLT-WHEEL

$8.49

$

In Stock, only 3 left!

0

23

Toro 3-0655

5/16-18 PIVOT SCREW

$15.99

$

In Stock, only 1 left!

0

24

Toro 25-8000

SPRING ARM ASM

$69.99

$

Usually ships in 3-6 days

0

25

Toro 5-4460

WASHER-PIVOT

$7.99

$

In Stock, Qty 20+

0

26

Toro 27-6300

KEY-SQUARE

$6.49

$

In Stock, only 1 left!

0

27

Toro 20-2750

Blade Retailer
(Superseded to 49-7890)

$64.99

$

Usually ships in 3-6 days

0

28

Toro 20-2720

Blade
(Superseded to 20-2720-03)

$36.99

$

In Stock, only 4 left!

0

29

Toro 8-4240

AntiScalp Cup
(Superseded to 80-2770)

$15.99

$

In Stock, only 2 left!

0

30

Toro 3-5246

SPECIAL SCREW

$

$

Not available

31

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, Qty 5

0

32

Toro 38-2530

Decal-Deck
(Superseded to 40-2210)

$

$

Not available

33

Toro 27-6250

BUSHING

$2.99

$

In Stock, Qty 20+

0

Toro 8-0269

Loose Parts

Note: Not illustrated

$

$

Currently unavailable

Toro 25-9150

REPLACEMNT SERIAL PLT

Note: Not illustrated

$17.99

$

Usually ships in 3-6 days

0
