21753 (S53VST) - Toro 53cm Recycler Walk-Behind Mower with SmartStow (SN: 414900000 - 999999999) Housing Assembly Parts Diagram

53cm Recycler Walk-Behind Mower with SmartStow

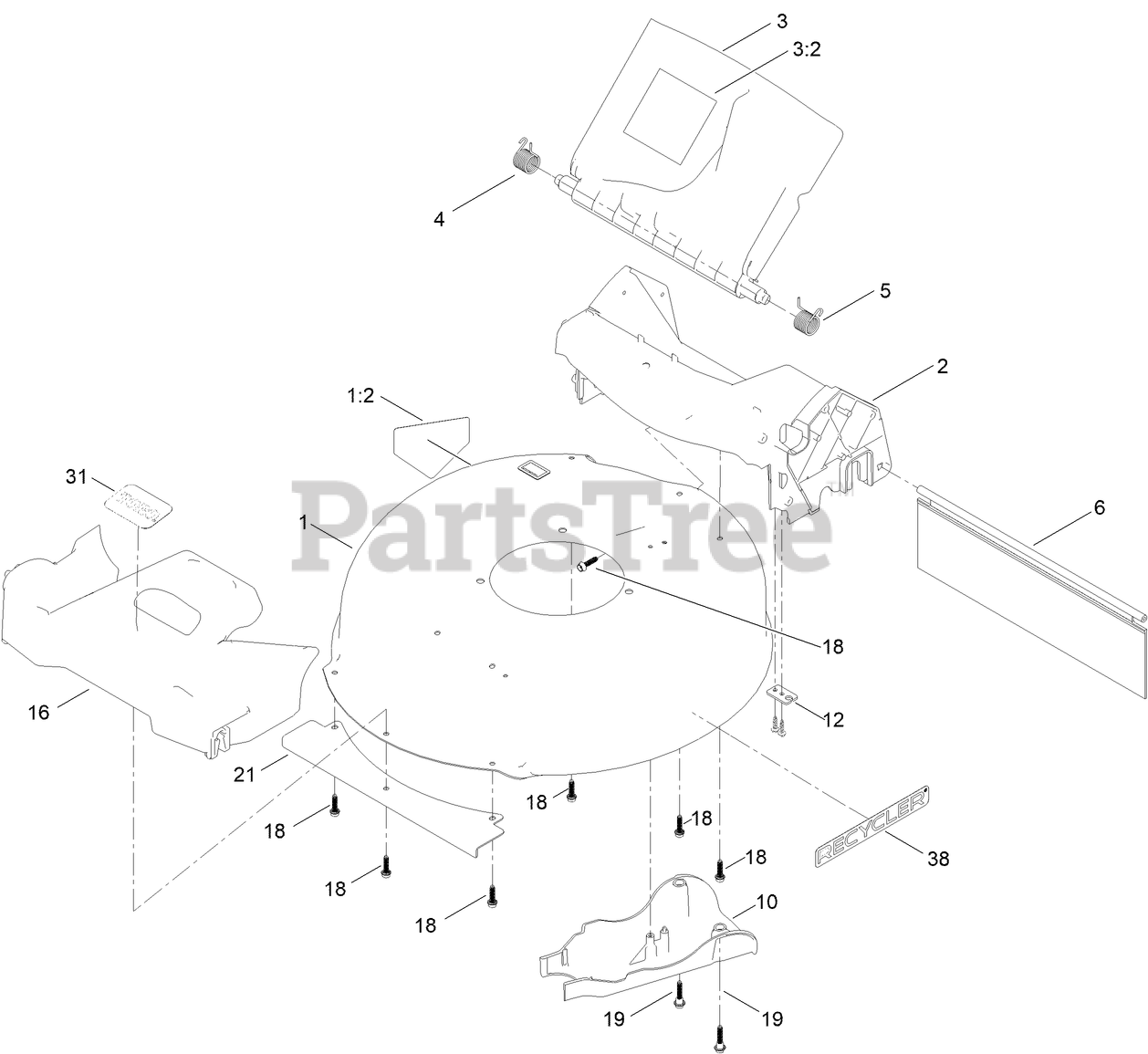

Housing Assembly Parts Diagram

  • Title

1

Toro 145-5525-01

HOUSING-DECK

$178.99

$

Usually ships in 0 days

0

1:2

Toro 112-8760

DECAL-DANGER

$12.99

$

In Stock, only 3 left!

0

2

Toro 145-5506

CHUTE-SP/AWD, 21 IN

$28.99

$

Usually ships in 3-6 days

0

3

Toro 145-5511

DEFLECTOR-REAR ASM

$26.99

$

Usually ships in 3-6 days

0

3:2

Toro 117-4143

DECAL-WARNING

$6.49

$

Usually ships in 3-6 days

0

4

Toro 147-0465

SPRING-TORSION

$2.99

$

Usually ships in 3-6 days

0

5

Toro 147-0466

SPRING-TORSION

$2.99

$

Usually ships in 3-6 days

0

6

Toro 147-0443

SHIELD-TRAILING

$15.99

$

In Stock, Qty 11

0

10

Toro 127-0723

COVER-BELT

$12.99

$

In Stock, Qty 5

0

12

Toro 127-0730

BRACKET-CABLE

$1.49

$

In Stock, Qty 8

0

16

Toro 145-5518

BUMPER

$27.99

$

In Stock, Qty 6

0

18

Toro 130-6658

SCREW-FLANGE, PLASTIC

$1.49

$

In Stock, Qty 16

0

19

Toro 131-0837

SCREW-SHOULDER, HHF

$1.99

$

In Stock, Qty 20+

0

21

Toro 131-0820-03

SHIELD-FRONT

$

$

Currently unavailable

31

Toro 145-0854

DECAL-TORO, SILVER

$4.49

$

Usually ships in 0 days

0

38

Toro 140-4184

DECAL

$3.99

$

Usually ships in 3-6 days

0
