2176 (13A-274G100) - Cub Cadet Garden Tractor Fuel System Parts Diagram

Garden Tractor

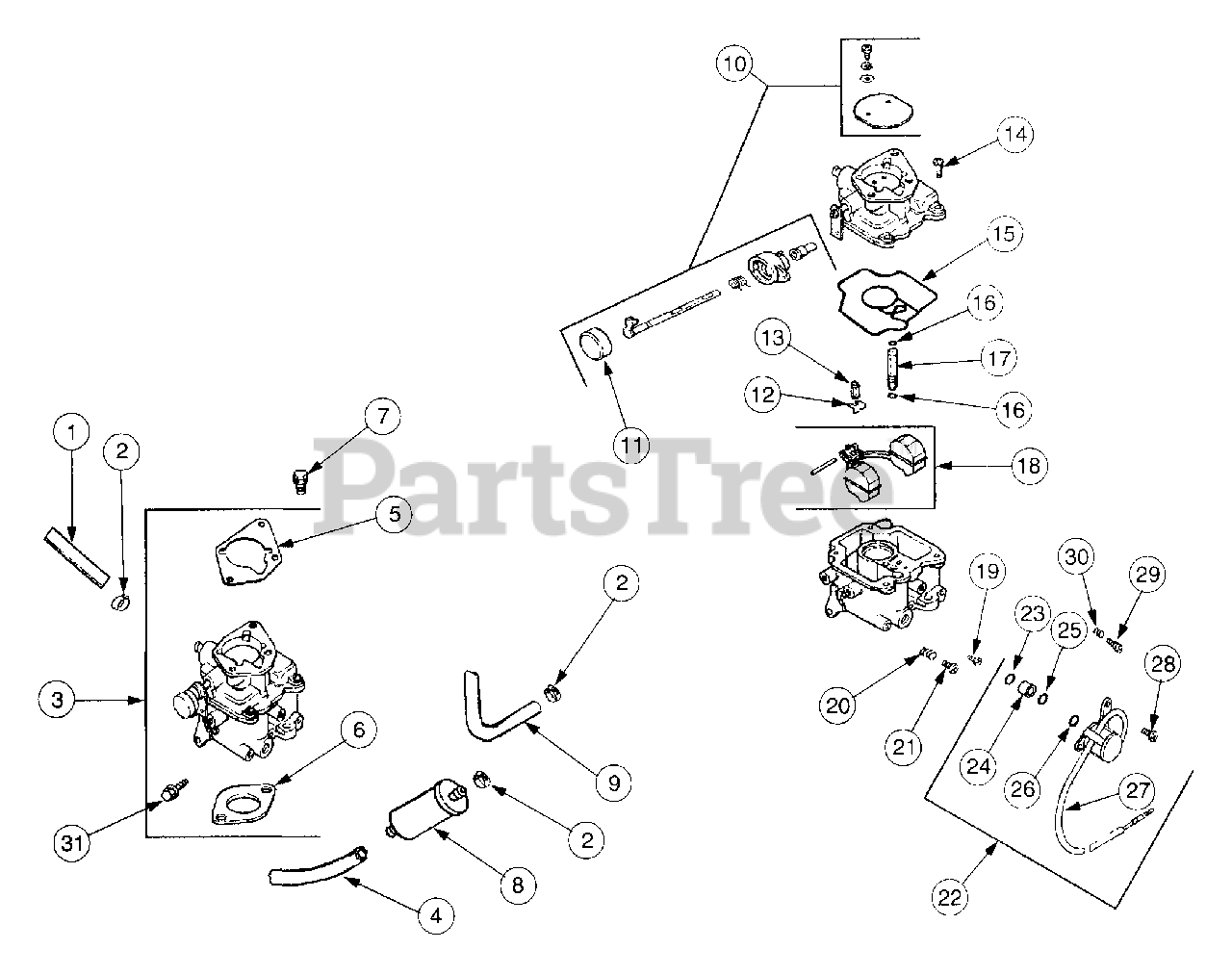

Fuel System Parts Diagram

  • Title

1

Cub Cadet KH-52-353-20

Line, Fuel 10"
(Superseded to 751-10349-16)

$33.99

$

In Stock, Qty 7

0

2

Cub Cadet KH-X-426-9

Clamp, Hose
(Superseded to KH-25-237-31-S)

$5.49

$

In Stock, only 3 left!

0

3

Cub Cadet KH-24-853-35

Kit, Carb
(Superseded to KH-24-853-319-S)

Note: (Incl. Ref #4,5,6, 11-31)

$335.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 723-3066-14

Insulation, Fuel Line
(Superseded to 723-3066-24)

$17.99

$

In Stock, only 2 left!

0

5

Cub Cadet KH-24-041-06

Gasket, Air Cleaner Base

$2.99

$

In Stock, Qty 20+

0

6

Cub Cadet KH-24-041-17

Gasket, Carburetor

$

$

Not available

7

Cub Cadet KH-M-0651030

Screw, Hex Flange

$

$

Not available

8

Cub Cadet KH-24-050-02

Filter, Fuel
(Superseded to 2405013S1C)

$18.99

$

In Stock, Qty 20+

0

9

Cub Cadet KH-24-353-12

Line, Fuel 11"

$

$

Not available

10

Cub Cadet KH-24-757-07

Kit, Choke Repair

Note: (Incl. Ref #12)

$

$

Not available

11

Cub Cadet KH-24-173-02

Cap, Choke Lever

$

$

Not available

12

Cub Cadet KH-24-154-01

Clip, Inlet Needle Valve

$

$

Not available

13

Cub Cadet KH-24-462-01

Valve, Inlet Needle

$

$

Not available

14

Cub Cadet KH-24-086-09

Screw, Carburetor Body

$

$

Not available

15

Cub Cadet KH-24-041-09

Gasket, Carburetor

$

$

Not available

16

Cub Cadet KH-24-153-02

O-Ring, Slow Jet

$

$

Not available

17

Cub Cadet KH-24-337-01

Jet, Slow

$

$

Not available

18

Cub Cadet KH-24-757-02

Kit, Float Repair
(Superseded to KH-24-757-02-S)

$154.99

$

Usually ships in 2-5 days

0

19

Cub Cadet KH-24-337-02

Jet, Main

$

$

Not available

20

Cub Cadet KH-24-089-10

Spring, Idle Adjust Screw

$

$

Not available

21

Cub Cadet KH-24-086-10

Screw, Idle Adjusting

$

$

Not available

22

Cub Cadet KH-24-757-01

Kit, Solenoid

Note: (Incl. Ref #24-29)

$

$

Not available

23

Cub Cadet KH-24-153-06

O-Ring

$

$

Not available

24

Cub Cadet KH-24-521-01

Seat, Solenoid

$

$

Not available

25

Cub Cadet KH-24-153-05

O-Ring

$

$

Not available

26

Cub Cadet KH-24-153-04

O-Ring

$

$

Not available

27

Cub Cadet KH-24-435-01

Solenoid
(Superseded to KH-24-435-01-S)

$250.99

$

In Stock, only 1 left!

0

28

Cub Cadet KH-24-086-07

Screw, Solenoid

$

$

Not available

29

Cub Cadet KH-24-368-01

Needle, Idle

$

$

Not available

30

Cub Cadet KH-24-089-11

Spring, Idle Needle

$

$

Not available

31

Cub Cadet KH-24-086-05

Screw, Throttle Stop
(Superseded to KH-24-086-05-S)

$5.99

$

Usually ships in 3-6 days

0

Cub Cadet KH-24-757-03

Kit, Carburetor Repair
(Superseded to KH-24-757-03-S)

$129.99

$

Usually ships in 2-5 days

0
