2176 (13A-274G100) - Cub Cadet Garden Tractor Implement Lift Hanger Parts Diagram

Garden Tractor

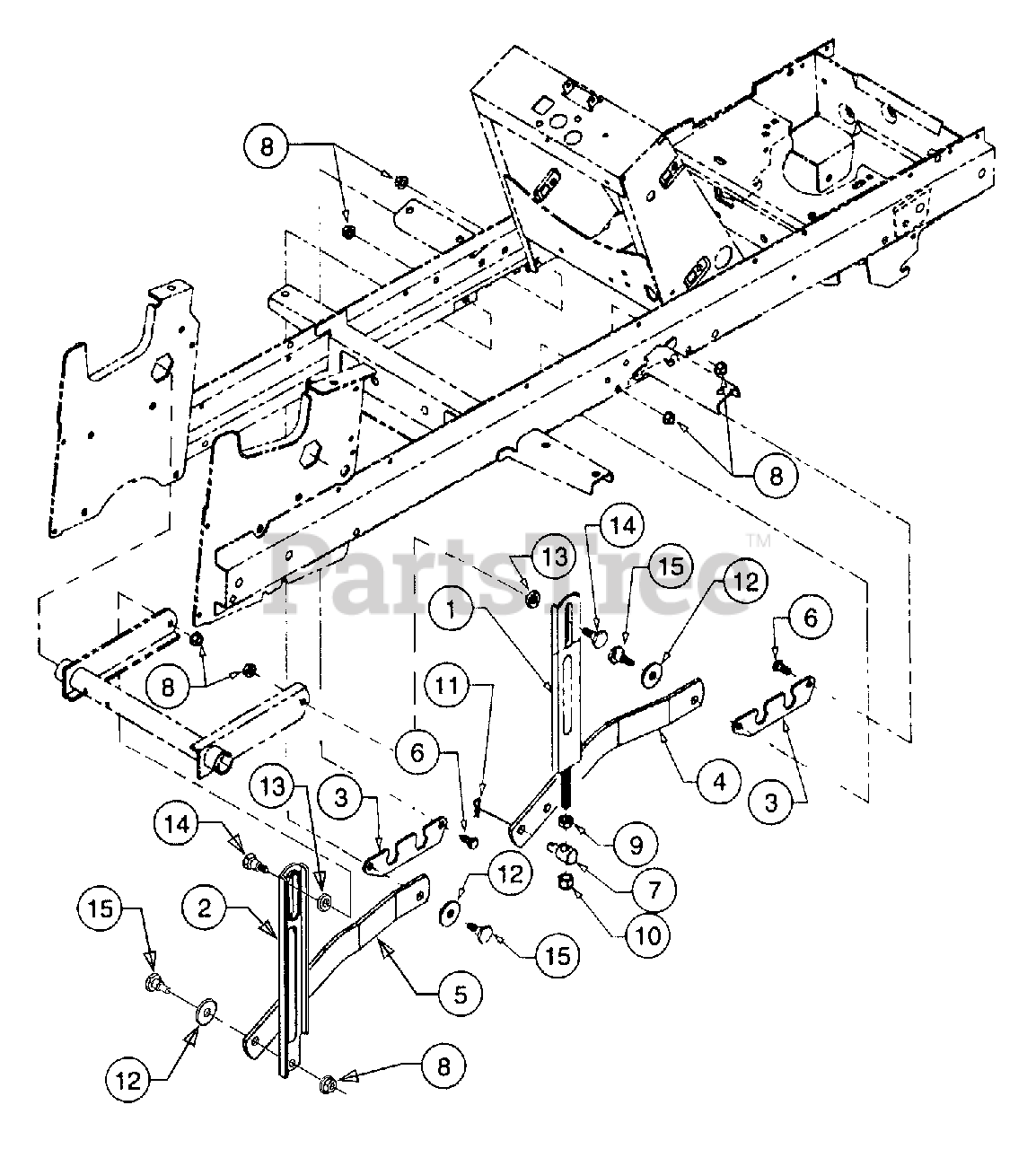

Implement Lift Hanger Parts Diagram

  • Title

1

Cub Cadet 603-0058

Bracket, RH Hanger
(Superseded to 603-0058-0716)

Variations

603-0058-0716

Cub Cadet 603-0058-0716

BRACKET ASSY - CUB YELLOW-99 (0716)

$75.99

$

Usually ships in 3-6 days

0

$75.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 703-2234

Bracket, LH Hanger

Variations

703-2234-4021

Cub Cadet 703-2234-4021

BRACKET ASSY - CUB YELLOW 2 (4021)

$

$

Not available

$

$

3

Cub Cadet 703-2804

Plate, Bearing Mounting

$17.99

$

In Stock, only 4 left!

0

4

Cub Cadet 703-2832

Link, RH Lift

Variations

703-2832-0637

Cub Cadet 703-2832-0637

Lift Link, RH - POWDER BLACK (0637)

$

$

Not available

703-2832-0716

Cub Cadet 703-2832-0716

LINK-LIFT R/H - CUB YELLOW-99 (0716)

$

$

Not available

$

$

5

Cub Cadet 703-2833

Link, LH Lift

Variations

703-2833-0637

Cub Cadet 703-2833-0637

LINK-LIFT L/H - POWDER BLACK (0637)

$

$

Not available

703-2833-0716

Cub Cadet 703-2833-0716

LINK-LIFT L/H - CUB YELLOW-99 (0716)

$

$

Not available

$

$

6

Cub Cadet 710-3000

Screw, Hex Cap, 3/8-16 x .75 GR5
(Superseded to 710-0216)

$4.49

$

In Stock, Qty 6

0

7

Cub Cadet 711-3319

Ferrule, Adjustment
(Superseded to 911-3319)

$28.99

$

In Stock, only 1 left!

0

8

Cub Cadet 712-0431

Nut, Hex Flange Lock, 3/8-16
(Superseded to 912-0431)

$5.49

$

In Stock, Qty 20+

0

9

Cub Cadet 712-3048

Nut, Hex Jam, 1/2-13 GR5

$4.99

$

In Stock, Qty 20+

0

10

Cub Cadet 712-3083

Nut, Hex Insert Lock, 1/2-13

$4.99

$

In Stock, Qty 20+

0

11

Cub Cadet 714-0145

Pin, Internal Cotter

$5.49

$

In Stock, Qty 20+

0

12

Cub Cadet 736-0326

Washer, Flat, .5 x 1.5 x .15

$4.99

$

In Stock, Qty 7

0

13

Cub Cadet 736-3069

Washer, Flat, .531 x .875 x .15

$3.99

$

In Stock, only 1 left!

0

14

Cub Cadet 738-0430

Bolt, Shoulder

$12.99

$

In Stock, only 2 left!

0

15

Cub Cadet 738-0507B

Bolt, Shoulder

$4.99

$

In Stock, Qty 9

0
