21761 - Toro 55cm Recycler Walk-Behind Mower with SmartStow (SN: 400000000 - 408999999) Rear Wheel and Height-of-Cut Assembly Parts Diagram

55cm Recycler Walk-Behind Mower with SmartStow

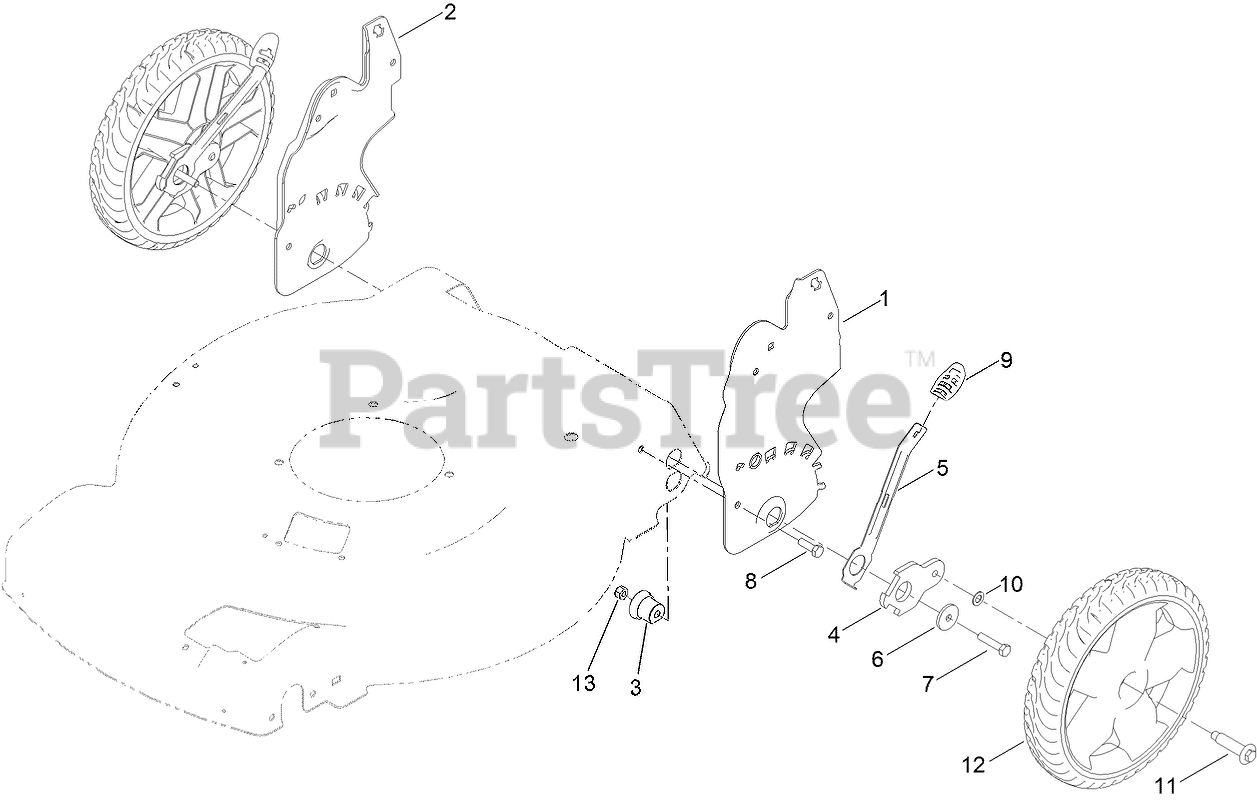

Rear Wheel and Height-of-Cut Assembly Parts Diagram

  • Title

1

Toro 132-4490-03

PLATE-HOC, LH

$21.99

$

Usually ships in 3-6 days

0

2

Toro 132-4491-03

PLATE-HOC, RH

$21.99

$

Usually ships in 3-6 days

0

3

Toro 131-0895

BUSHING-MOUNT, HOC

$3.99

$

In Stock, Qty 11

0

4

Toro 137-9129

ARM-PIVOT, REAR

$13.99

$

In Stock, only 2 left!

0

5

Toro 115-2899

ARM-SPRING, REAR

$13.99

$

In Stock, Qty 12

0

6

Toro 139-1704

WASHER-FLAT

$1.49

$

Usually ships in 3-6 days

0

7

Toro 120-2779

SCREW-HH

$

$

Currently unavailable

8

Toro 139-1716

SCREW-HH

$1.49

$

In Stock, only 4 left!

0

9

Toro 105-3042

KNOB-LEVER, HOC

$4.99

$

In Stock, Qty 18

0

10

Toro 40-1940

WASHER

$2.99

$

In Stock, Qty 12

0

11

Toro 614650

BOLT-SHOULDER

$4.99

$

In Stock, Qty 20+

0

12

Toro 137-4837

11IN WHEEL ASM

$30.99

$

In Stock, only 3 left!

0

13

Toro 119-4038

NUT-HEX

$3.49

$

In Stock, Qty 20+

0
