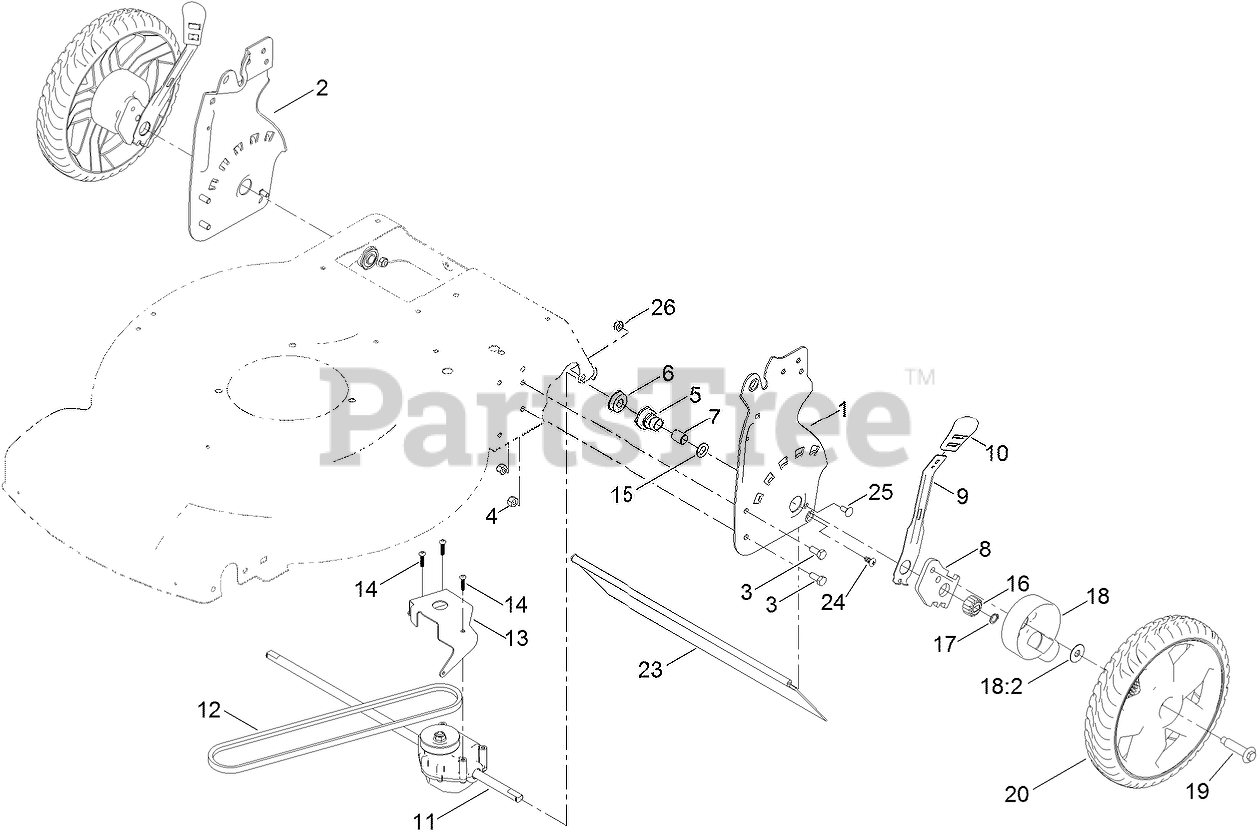

21765 - Toro 55cm Recycler Walk-Behind Mower with SmartStow (SN: 400000000 - 409999999) Rear Wheel and Height-of-Cut Assembly Parts Diagram

55cm Recycler Walk-Behind Mower with SmartStow

Rear Wheel and Height-of-Cut Assembly Parts Diagram

  • Title

1

Toro 136-5887-03

PLATE-HOC, RWD (LH)

$24.99

$

Usually ships in 3-6 days

0

2

Toro 136-5888-03

PLATE-HOC, RWD (RH)

$24.99

$

Usually ships in 3-6 days

0

3

Toro 137-3052

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

4

Toro 119-4038

NUT-HEX

$2.99

$

In Stock, Qty 5

0

5

Toro 108-9779

RETAINER-BUSHING, HOC

$13.99

$

In Stock, Qty 20+

0

6

Toro 104-8699

BEARING-BALL

$4.49

$

In Stock, Qty 20+

0

7

Toro 108-9782

BUSHING-SLEEVE

$5.49

$

In Stock, Qty 20+

0

8

Toro 136-9090

ARM-PIVOT, REAR

$12.99

$

In Stock, Qty 18

0

9

Toro 132-4486

ARM-SPRING

$14.99

$

Usually ships in 3-6 days

0

10

Toro 110-0549

KNOB-HOC

$1.49

$

In Stock, Qty 20+

0

11

Toro 137-4825

TRANSMISSION-RWD (6:1)

$113.99

$

In Stock, only 1 left!

0

12

Toro 91-2258

BELT-V

$22.99

$

In Stock, Qty 20+

0

13

Toro 132-4481-01

BRACKET-TRANSMISSION

$14.99

$

Usually ships in 3-6 days

0

14

Toro 120-9676

SCREW-PLASTITE

$

$

Currently unavailable

15

Toro 110-7191

WASHER-THRUST

$2.99

$

In Stock, Qty 20+

0

16

Toro 131-5399

GEAR-PINION, 15T

$5.49

$

In Stock, Qty 20+

0

17

Toro 32151-61

RING-RETAINING

$2.99

$

In Stock, Qty 20+

0

18

Toro 136-9059

GEAR COVER ASM

$5.99

$

In Stock, Qty 20+

0

18:2

Toro 614426

WASHER-STEPPED

$3.49

$

In Stock, Qty 20+

0

19

Toro 614650

BOLT-SHOULDER

$4.49

$

In Stock, Qty 20+

0

20

Toro 137-4843

WHEEL GEAR ASM, 11IN

$47.99

$

In Stock, Qty 6

0

23

Toro 139-6604

SHIELD-TRAILING

$16.99

$

In Stock, Qty 20+

0

24

Toro 139-1692

SCREW-THD

$0.99

$

Usually ships in 3-6 days

0

25

Toro 100-1445

BOLT-CARR

$1.49

$

Usually ships in 3-6 days

0

26

Toro 139-1724

NUT-LOCK

$0.99

$

Usually ships in 3-6 days

0
