21765 - Toro 55cm Recycler Walk-Behind Mower with SmartStow (SN: 410000000 - 999999999) Handle Assembly Parts Diagram

55cm Recycler Walk-Behind Mower with SmartStow

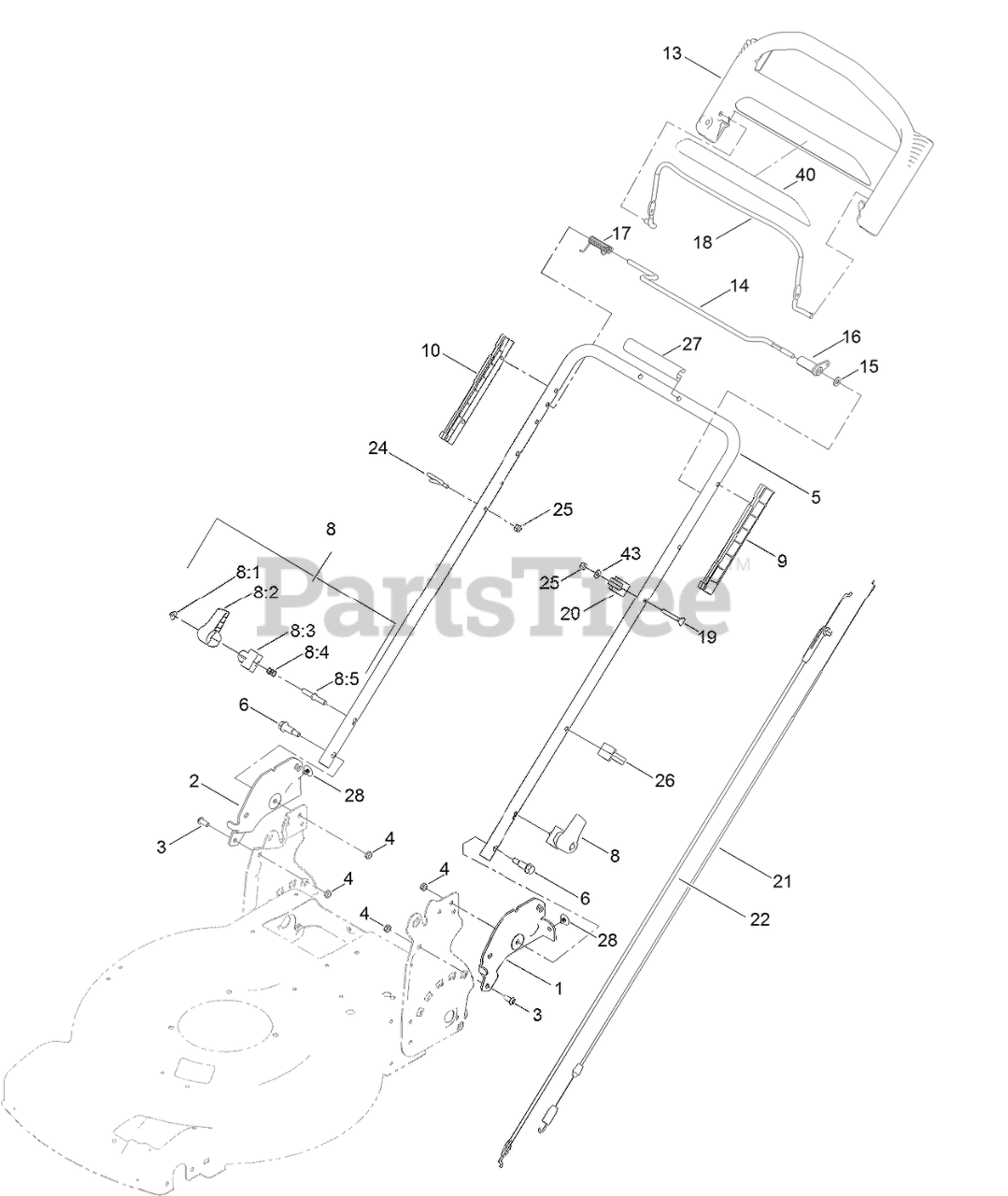

Handle Assembly Parts Diagram

  • Title

1

Toro 137-9109-03

PLATE-HANDLE, LH

$13.99

$

Usually ships in 3-6 days

0

2

Toro 137-9110-03

PLATE-HANDLE, RH

$13.99

$

Usually ships in 3-6 days

0

3

Toro 3274-55

SCREW-HSBH

$5.49

$

In Stock, Qty 8

0

4

Toro 137-3089

NUT-HEX

$1.49

$

Usually ships in 3-6 days

0

5

Toro 132-4471-05

HANDLE

$60.99

$

In Stock, only 2 left!

0

6

Toro 130-2344

BOLT-SHOULDER
(Superseded to 140-3759)

$1.49

$

Usually ships in 3-6 days

0

8

Toro 138-3249

QUICK RELEASE ASM

$10.99

$

In Stock, only 2 left!

0

8:1

Toro 32112-11

NUT-PUSH

$1.49

$

In Stock, Qty 16

0

8:2

Toro 138-3248

LEVER-RELEASE
(Superseded to 138-3249)

$10.99

$

In Stock, only 2 left!

0

8:3

Toro 138-3253

ANCHOR-SPRING
(Superseded to 138-3249)

$10.99

$

In Stock, only 2 left!

0

8:4

Toro 115-2858

SPRING-COMPRESSION

$3.49

$

In Stock, only 4 left!

0

8:5

Toro 138-3243

ROD-RELEASE

$2.49

$

Usually ships in 3-6 days

0

9

Toro 105-6842

GUIDE-LH

$8.99

$

In Stock, only 1 left!

0

10

Toro 105-6841

GUIDE-RH

$8.99

$

In Stock, Qty 8

0

13

Toro 104-8678

HANDLE-CONTROL

$81.99

$

In Stock, only 2 left!

0

14

Toro 136-7150

BAR-CONTROL, TRACTION

$16.99

$

In Stock, Qty 7

0

15

Toro 120-9683

WASHER-PLAIN

$2.99

$

Usually ships in 3-6 days

0

16

Toro 99-1589

LEVER-TRACTION

$7.49

$

In Stock, Qty 15

0

17

Toro 136-7166

SPRING-TORSION

$2.99

$

In Stock, Qty 20+

0

18

Toro 131-0880-03

BAIL-BRAKE

$15.99

$

In Stock, Qty 20+

0

19

Toro 137-3109

BOLT-CARR

$1.99

$

Usually ships in 3-6 days

0

20

Toro 136-5864

ANCHOR-CABLE

$2.99

$

In Stock, Qty 16

0

21

Toro 115-8435

CABLE-TRACTION

$33.99

$

In Stock, Qty 20+

0

22

Toro 115-8437

CABLE-BRAKE

$34.99

$

In Stock, Qty 20+

0

24

Toro 86-9671

GUIDE-ROPE

$4.49

$

In Stock, Qty 18

0

25

Toro 137-3094

NUT-HEX

$1.49

$

In Stock, Qty 20+

0

26

Toro 114-7988

GUIDE-CABLE

$2.99

$

In Stock, Qty 20+

0

27

Toro 131-4551

HANDLE-COVER

$1.49

$

Usually ships in 3-6 days

0

28

Toro 130-6721

CLIP-TREE

$0.99

$

Usually ships in 3-6 days

0

40

Toro 133-1949

DECAL

$

$

Currently unavailable

43

Toro 139-1699

WASHER-FLAT

$1.49

$

Usually ships in 3-6 days

0
