21766 - Toro 55cm Recycler Walk-Behind Mower (SN: 410000000 - 999999999) Handle Assembly Parts Diagram

55cm Recycler Walk-Behind Mower

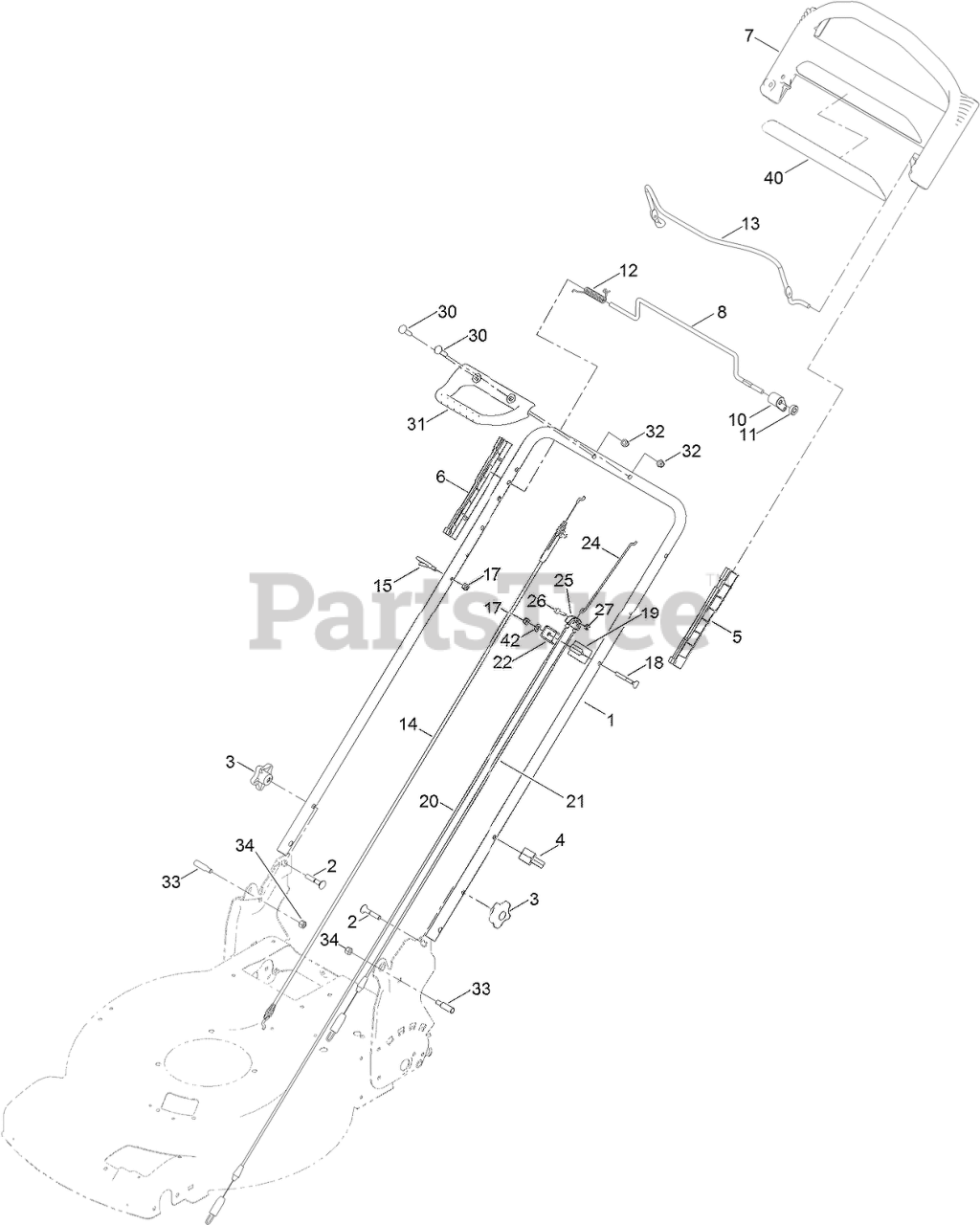

Handle Assembly Parts Diagram

  • Title

1

Toro 131-9695-05

HANDLE

$56.99

$

In Stock, only 2 left!

0

2

Toro 131-9663

SCREW-CARR

$0.99

$

In Stock, Qty 20+

0

3

Toro 117-5976

KNOB-HANDLE

$2.99

$

In Stock, Qty 20+

0

4

Toro 114-7988

GUIDE-CABLE

$2.99

$

In Stock, Qty 20+

0

5

Toro 105-6842

GUIDE-LH

$8.99

$

In Stock, only 1 left!

0

6

Toro 105-6841

GUIDE-RH

$8.99

$

In Stock, Qty 8

0

7

Toro 104-8678

HANDLE-CONTROL

$81.99

$

In Stock, only 2 left!

0

8

Toro 136-7150

BAR-CONTROL, TRACTION

$16.99

$

In Stock, Qty 7

0

10

Toro 127-6842

LEVER-TRACTION

$4.49

$

In Stock, Qty 20+

0

11

Toro 130-2343

SPACER

$1.49

$

In Stock, Qty 20+

0

12

Toro 136-7166

SPRING-TORSION

$2.99

$

In Stock, Qty 20+

0

13

Toro 131-0880-03

BAIL-BRAKE

$15.99

$

In Stock, Qty 20+

0

14

Toro 115-8437

CABLE-BRAKE

$34.99

$

In Stock, Qty 20+

0

15

Toro 86-9671

GUIDE-ROPE

$4.49

$

In Stock, Qty 18

0

17

Toro 137-3094

NUT-HEX

$1.49

$

In Stock, Qty 20+

0

18

Toro 137-3108

SCREW-HANDLE

$4.49

$

Usually ships in 3-6 days

0

19

Toro 130-6716

MOUNT-CABLE, TRACTION

$3.99

$

In Stock, only 1 left!

0

20

Toro 130-6717

CABLE-TRACTION, FRONT

$25.99

$

In Stock, Qty 16

0

21

Toro 130-6718

CABLE-TRACTION, REAR

$25.99

$

In Stock, Qty 14

0

22

Toro 136-5922

CLAMP-CABLE

$3.99

$

In Stock, Qty 20+

0

24

Toro 138-5321

LINKAGE-EQUALIZER

$2.49

$

In Stock, Qty 20+

0

25

Toro 130-6719

YOKE-CABLE

$4.49

$

In Stock, Qty 16

0

26

Toro 139-1709

SCREW-SHOULDER

$1.49

$

Usually ships in 3-6 days

0

27

Toro 137-3085

NUT-HEX

$0.99

$

Usually ships in 3-6 days

0

30

Toro 139-1702

BOLT-CARRIAGE

$1.49

$

In Stock, only 2 left!

0

31

Toro 131-0847

HANDLE-ASSIST, TRACTION

$14.99

$

In Stock, only 1 left!

0

32

Toro 137-4808

NUT-ACORN

$1.99

$

In Stock, Qty 20+

0

33

Toro 131-4591

BOLT-SHOULDER

$1.99

$

In Stock, Qty 11

0

34

Toro 119-4038

NUT-HEX

$2.99

$

In Stock, Qty 5

0

40

Toro 131-4539

DECAL-DRIVE, AUTOMATIC

$15.99

$

Usually ships in 3-6 days

0

42

Toro 139-1699

WASHER-FLAT

$1.49

$

Usually ships in 3-6 days

0
