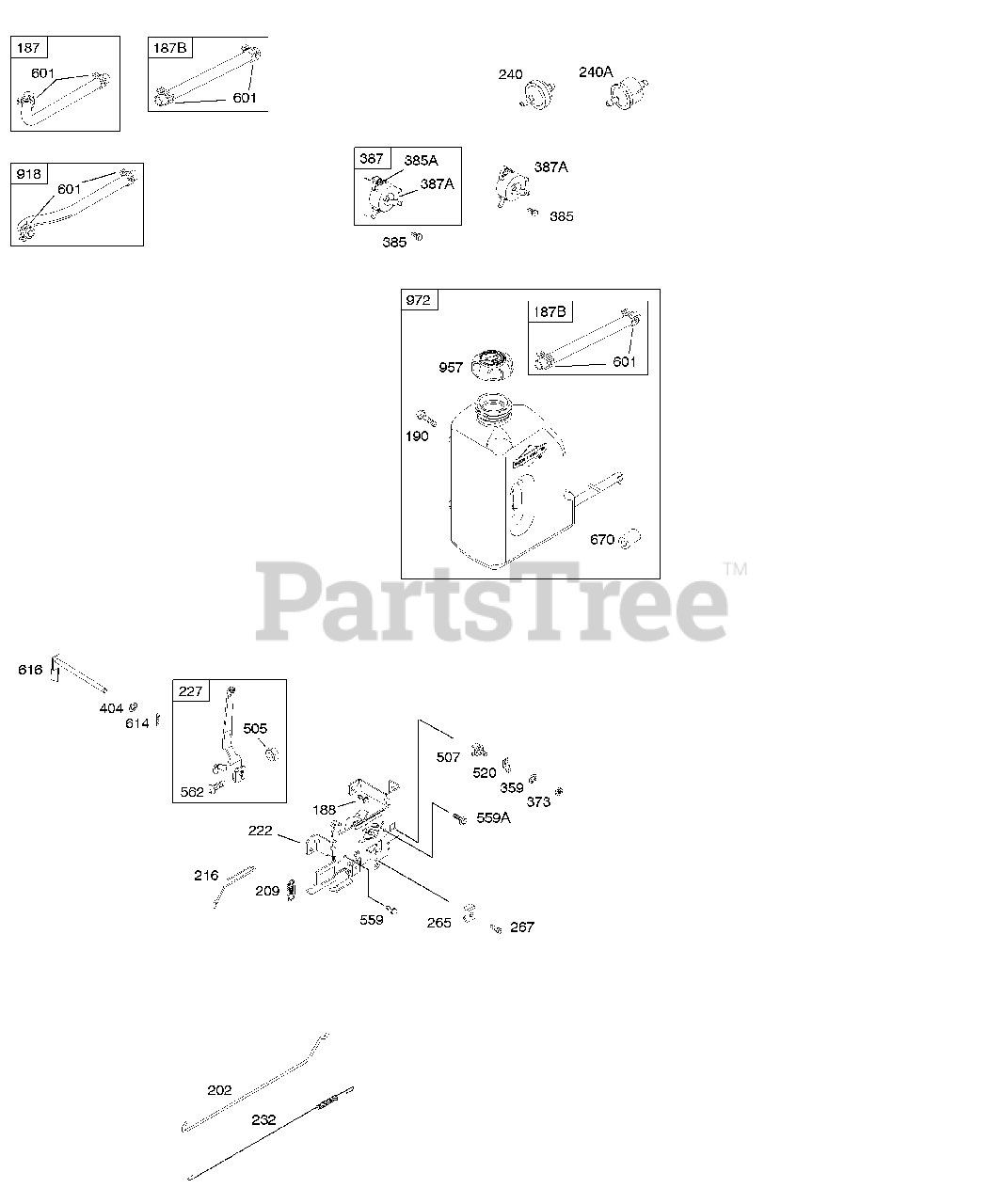

217707-0391-B1 - Briggs & Stratton Vertical Engine Controls, Fuel Supply Parts Diagram

Vertical Engine

Controls, Fuel Supply Parts Diagram

  • Title

187

Briggs & Stratton 791805

LINE, Fuel

Note: (Formed)(10-1/4" Long)(Cut to Required Length)

$26.99

$

In Stock, only 2 left!

0

187B

Briggs & Stratton 791766

LINE, Fuel

Note: (15" Long)(Cut to Required Length)

$8.49

$

In Stock, Qty 11

0

188

Briggs & Stratton 691693

SCREW

Note: (Control Bracket)

$3.99

$

In Stock, Qty 20+

0

190

Briggs & Stratton 796174

SCREW

Note: (Fuel Tank)

$

$

Not available

202

Briggs & Stratton 691841

LINK, Mechanical Governor

$10.99

$

In Stock, only 1 left!

0

209

Briggs & Stratton 792602

SPRING, Governor

$3.99

$

In Stock, Qty 8

0

216

Briggs & Stratton 691840

LINK, Choke

$9.99

$

In Stock, only 2 left!

0

222

Briggs & Stratton 694042

Bracket-Control
(Superseded to 597209)

$40.99

$

In Stock, Qty 20+

0

227

Briggs & Stratton 691374

LEVER, Governor Control

$28.99

$

In Stock, only 2 left!

0

232

Briggs & Stratton 691842

SPRING, Governor Link

$12.99

$

In Stock, Qty 10

0

240

Briggs & Stratton 394358S

FILTER, Fuel

$5.99

$

In Stock, Qty 20+

0

265

Briggs & Stratton 691024

CLAMP, Casing

$3.99

$

In Stock, only 3 left!

0

267

Briggs & Stratton 794904

SCREW

Note: (Casing Clamp)

$3.99

$

In Stock, only 2 left!

0

404

Briggs & Stratton 691691

WASHER

Note: (Governor Crank)

$4.49

$

In Stock, Qty 5

0

505

Briggs & Stratton 691251

NUT

Note: (Governor Control Lever)

$3.49

$

In Stock, Qty 8

0

559

Briggs & Stratton 697561

Screw

Note: (Remote Choke Stop) (Assemble Remote/Manual Choke Stop Screw in "R" Hole)

$4.49

$

Usually ships in 2-12 days

0

559A

Briggs & Stratton 693675

Screw

Note: (Remote Choke Stop) (Assemble Speed Limiter Screw in Number "2" Hole)

$4.49

$

Usually ships in 2-12 days

0

562

Briggs & Stratton 691119

BOLT

Note: (Governor Control Lever)

$4.49

$

In Stock, Qty 16

0

601

Briggs & Stratton 791850

CLAMP, Hose

Note: (Green)

$3.49

$

In Stock, Qty 20+

0

614

Briggs & Stratton 691620

PIN, Cotter

$4.99

$

In Stock, only 1 left!

0

616

Briggs & Stratton 692012

CRANK, Governor

$15.99

$

In Stock, only 2 left!

0

670

Briggs & Stratton 796175

SPACER, Fuel Tank

$

$

Not available
