21845x6A - Murray Ultra 21" Walk-Behind Mower (2000) Handle Assembly Parts Diagram

Ultra 21" Walk-Behind Mower

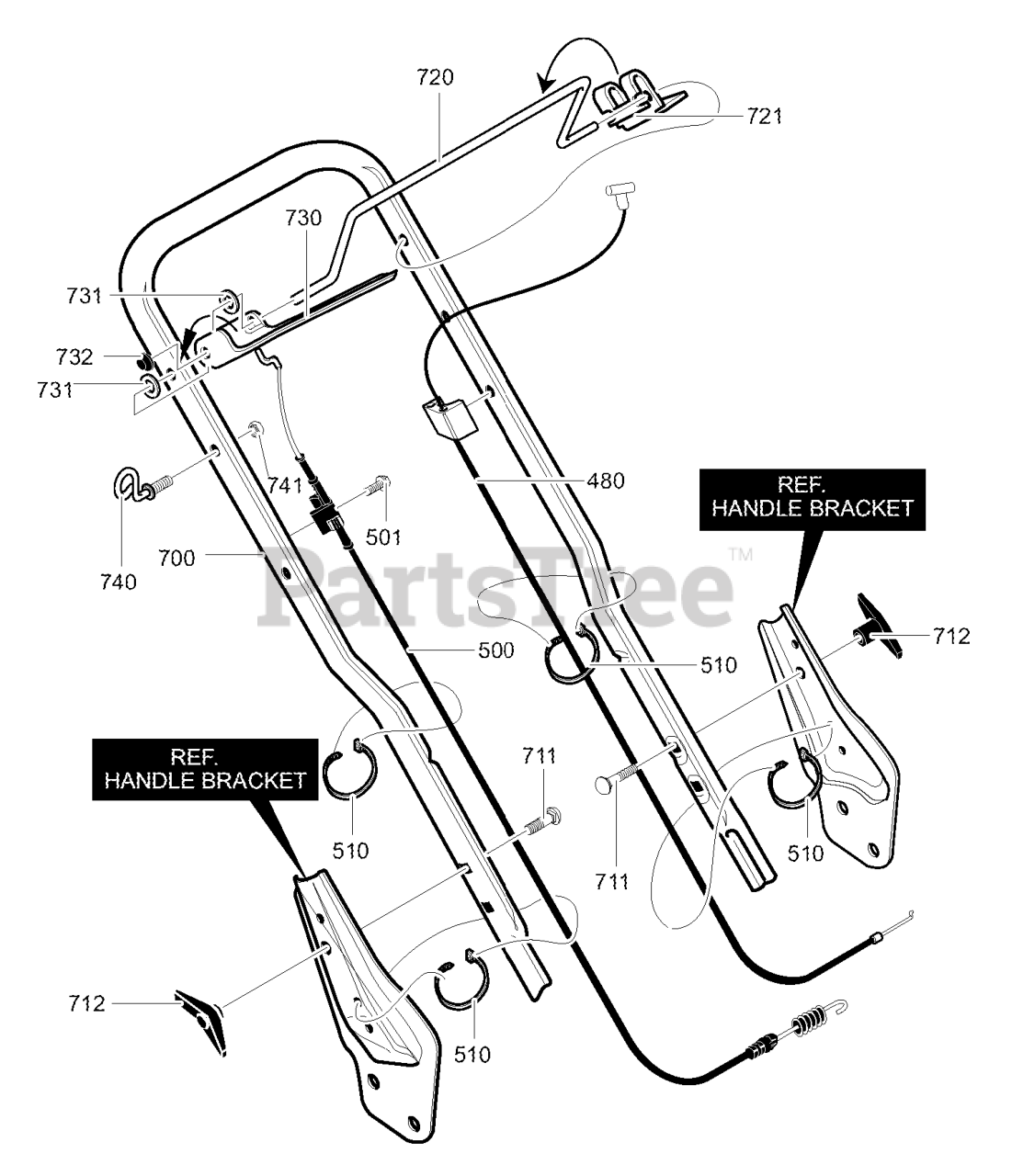

Handle Assembly Parts Diagram

  • Title

480

Murray 1101116

CABLE, STOP

$

$

Currently unavailable

500

Murray 672545MA

CABLE, DRIVE 21

$

$

Not available

501

Murray 710269

SCREW, 10-16X.75

$

$

Not available

510

Murray 712267

CABLE TIE

$3.99

$

Usually ships in 2-12 days

0

700

Murray 672286-846

HANDLE

$

$

Currently unavailable

711

Murray 710175

CARR. BOLT, 5/16-18X2.00

$5.99

$

Usually ships in 2-12 days

0

712

Murray 671294MA

WING KNOB
(Superseded to 703065)

$6.99

$

In Stock, Qty 20+

0

720

Murray 672429-850

STOP LEVER

$

$

Currently unavailable

721

Murray 643628

BRACKET, STOP LEVER

$

$

Currently unavailable

730

Murray 671566MA

LEVER, DRIVE CONTROL

$19.99

$

Usually ships in 2-12 days

0

731

Murray 710491

WASHER, NYLON

$24.99

$

In Stock, only 1 left!

0

732

Murray 710285

CAP, PUSH ON
(Superseded to 231739)

$17.99

$

In Stock, only 2 left!

0

740

Murray 672510MA

ROPE GUIDE 1/4-20

$5.99

$

Usually ships in 2-12 days

0

741

Murray 710203

NUT, 1/4-20

$19.99

$

Usually ships in 2-12 days

0
