2185 (135-288-100) - Cub Cadet Garden Tractor (SN: 239001 - 326005) Bulkhead, Dash Panel and Engine Controls Parts Diagram

Garden Tractor

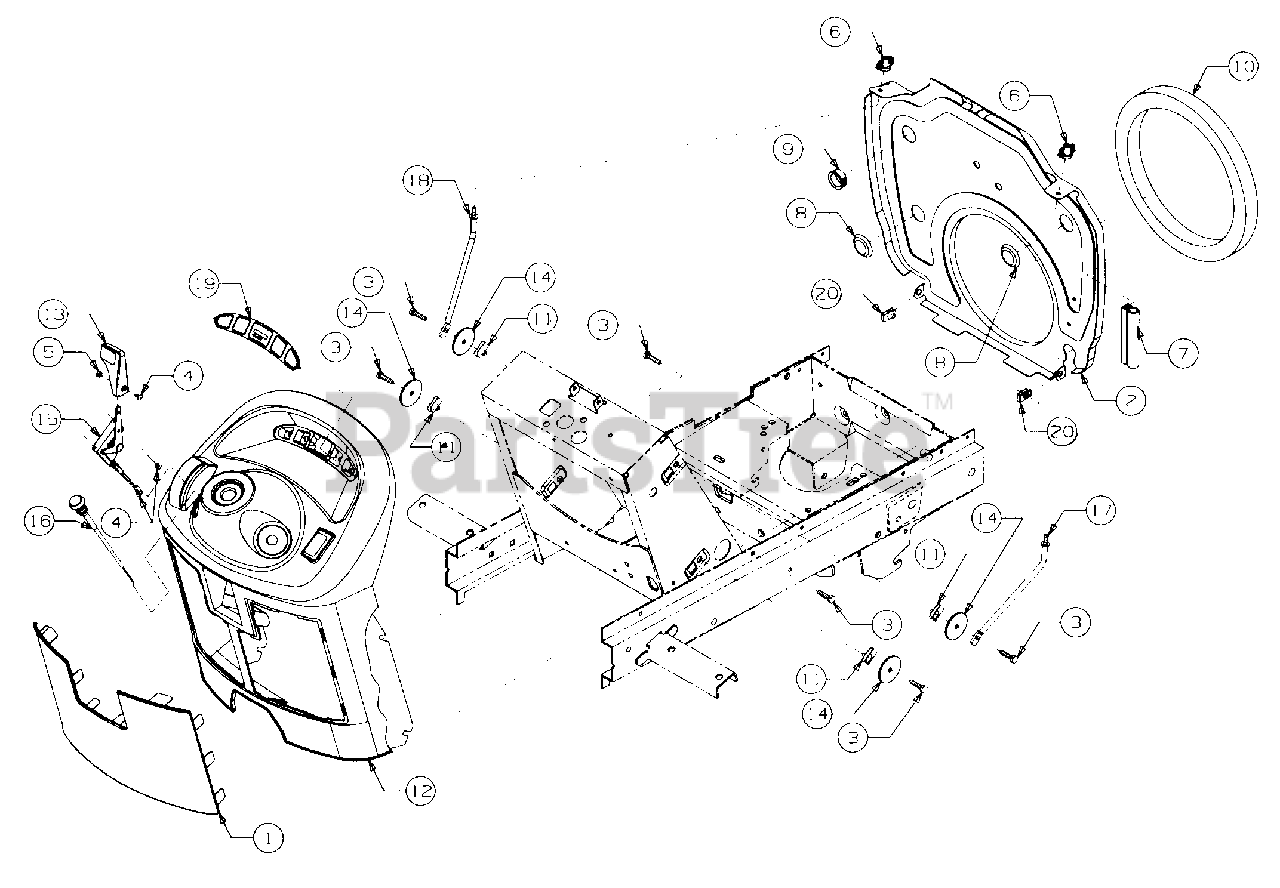

Bulkhead, Dash Panel and Engine Controls Parts Diagram

  • Title

1

Cub Cadet 703-2557

Screen, Intake Dash
(Superseded to 703-2557-0637)

Variations

Cub Cadet 703-2557-0637

Screen Intake - POWDER BLACK (0637)

$76.99

$

In Stock, only 1 left!

0

$76.99

$

In Stock, only 1 left!

0

2

Cub Cadet 703-2562

Bulkhead, Lower

$

$

Not available

3

Cub Cadet 710-0597

Screw, Hex Cap, 1/4-20 x 1.0 Lg GR2

$3.99

$

In Stock, Qty 19

0

4

Cub Cadet 710-3217

Screw, Cross Rec Truss #8-32 X.38 Lg Hd

$6.49

$

In Stock, Qty 10

0

5

Cub Cadet 712-0142

Nut, #8-32

$4.49

$

In Stock, Qty 12

0

6

Cub Cadet 712-0397

Nut, Wing w/Bell Washer, 1/4-20
(Superseded to 712-0397A)

$3.99

$

In Stock, Qty 20+

0

7

Seal, Push-on Trim, 14"

Note: (Order part no. 720-3024, 28" Lg & cut to fit)

$

$

Not available

8

Cub Cadet 720-3025

Plug, Button, 1.12 Dia

$

$

Not available

9

Cub Cadet 723-3042

Bushing, Snap, 7/8 ID

$3.99

$

In Stock, only 1 left!

0

10

Cub Cadet 723-3062

Ring, Foam Sealing

$22.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 726-3054

Nut, U-Clip, 1/4-20

$4.49

$

In Stock, Qty 5

0

Cub Cadet 777-1703

Graphic, Ignition Switch
(Superseded to 777I20306)

$

$

Not available

12

Cub Cadet 731-3137

Panel, Dash
(Superseded to 731-3137A)

$

$

Not available

13

Cub Cadet 731-3161

Knob, Throttle
(Superseded to 931-3161A)

$18.99

$

In Stock, only 3 left!

0

14

Cub Cadet 736-3128

Washer, Flat, .285 x 1.75 x .10 Thk

$11.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 746-3049

Control, Throttle
(Superseded to 946-3049)

$36.99

$

In Stock, Qty 7

0

16

Cub Cadet 746-3050A

Control, Choke
(Superseded to 946-3050A)

$45.99

$

In Stock, only 3 left!

0

17

Cub Cadet 747-3226

Rod, RH Mounting

$

$

Not available

18

Cub Cadet 747-3227

Rod, LH Mounting

$

$

Not available

19

Cub Cadet 777-1711

Label, Dash
(Superseded to 777I20312)

$

$

Not available

20

Cub Cadet 726-3048

Nut, U-Type Speed, 1/4-20

$

$

Not available
