2185 (135-288-100) - Cub Cadet Garden Tractor (SN: 239001 - 326005) Ignition, Electrical and Flywheel Parts Diagram

Garden Tractor

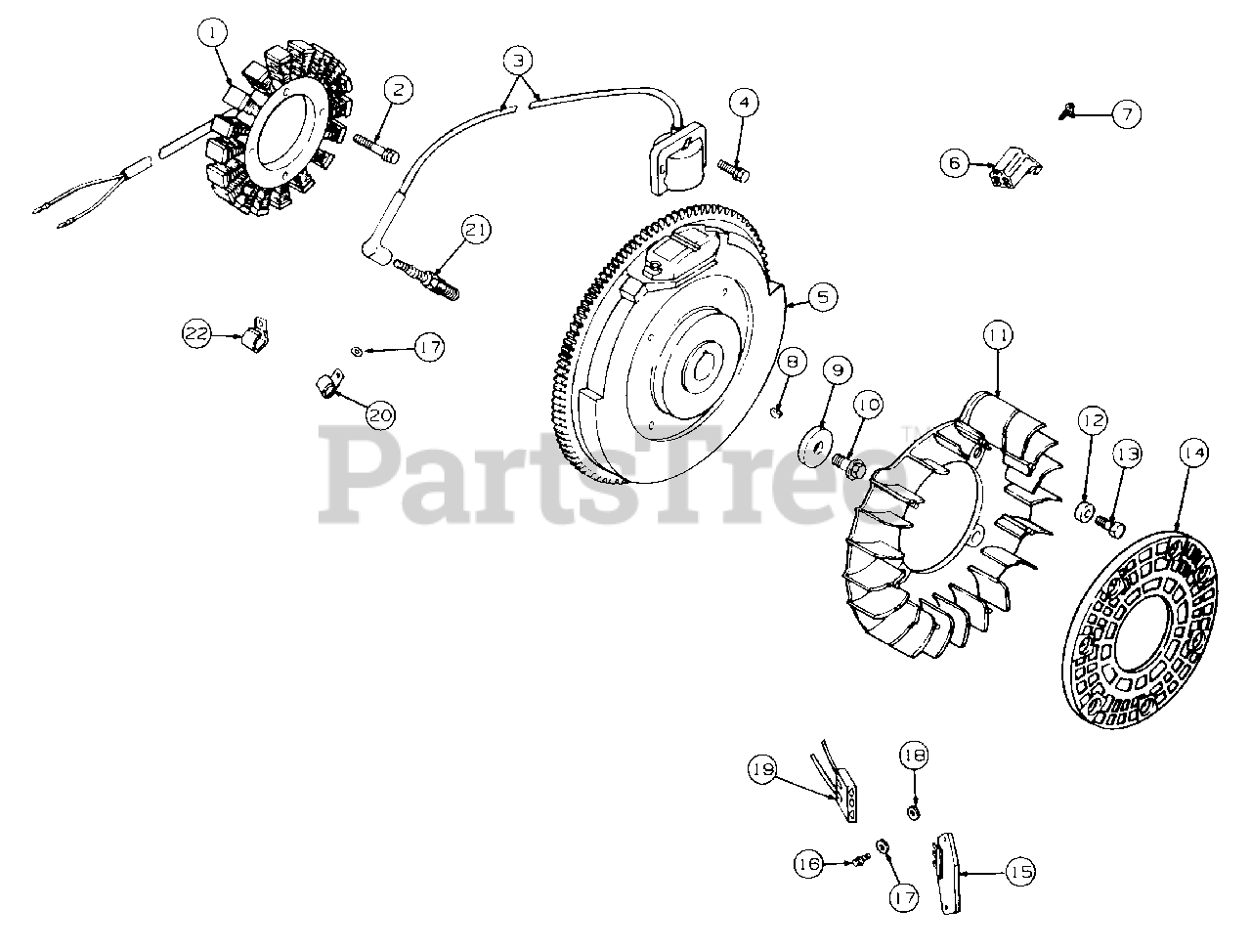

Ignition, Electrical and Flywheel Parts Diagram

  • Title
1

Cub Cadet KH-41-085-07

Stator, 15 Amp
(Superseded to KH-237878)

$

$

Not available

2

Cub Cadet KH-M-0548025

Screw, Stator Mtg. M5 x 0.8 x 25
(Superseded to KH-25-086-402-S)

$2.49

$

In Stock, only 2 left!

0

3

Cub Cadet KH-24-584-01

Module, Ignition
(Superseded to KH-24-584-45-S)

$102.99

$

Usually ships in 3-6 days

0

4

Cub Cadet KH-SM-0545020

Screw, Module, M5 x 0.8 x 20

$

$

Not available

5

Cub Cadet KH-24-025-01

Flywheel Assembly
(Superseded to KH-24-025-55-S)

$

$

Not available

$

$

Not available

7

Cub Cadet KH-X-67-3

Screw, Sltd Hex Hd #10-16 x.50
(Superseded to KH-25-086-91-S)

$3.49

$

Usually ships in 2-5 days

0

$

$

Not available

9

Cub Cadet KH-12-468-03

Washer, Flywheel Mtg Screw

$

$

Not available

10

Cub Cadet KH-12-086-14

Screw, Flywheel Mtg. M10 x 1.5 x 45.8
(Superseded to KH-25-086-361-S)

$3.49

$

In Stock, only 1 left!

0

11

Cub Cadet KH-24-157-01

Fan
(Superseded to KH-24-755-253-S)

$45.99

$

In Stock, Qty 11

0

12

Cub Cadet KH-12-112-01

Spacer, Fan
(Superseded to KH-25-086-47)

$

$

Not available

13

Cub Cadet KH-M-0639016

Screw, M6 x 1.0 x 16
(Superseded to KH-M-639016-S)

$2.49

$

In Stock, only 3 left!

0

14

Cub Cadet KH-12-162-02

Screen, Grass

$

$

Not available

15

Cub Cadet KH-25-403-03

Regulator-Rectifier
(Superseded to KH-41-403-10-S)

$105.99

$

In Stock, Qty 13

0

16

Cub Cadet KH-24-086-06

Screw, #11-16 x .78

$

$

Not available

17

Cub Cadet KH-X-25-63

Washer, Plain, 1/4

$

$

Not available

18

Cub Cadet KH-X-25-92

Washer, Plain

$

$

Not available

19

Cub Cadet KH-236602

Connector, Regulator-Rectifier
(Superseded to KH-25-155-41-S)

$7.99

$

In Stock, Qty 17

0

20

Cub Cadet KH-235173

Clip, Cable

$

$

Not available

21

Cub Cadet 759-3336

Spark Plug
(Superseded to RC12YC)

$3.49

$

In Stock, Qty 20+

0

22

$

$

Not available

Cub Cadet KH-24-176-01

Harness, Wire

$

$

Not available

Cub Cadet KH-24-518-04

Lead
(Superseded to KH-24-518-12-S)

$4.99

$

In Stock, only 1 left!

0
