2185 (135-288-100) - Cub Cadet Garden Tractor (SN: 239001 - 326005) Neutral Linkage, Hydraulic Pickup & Return Tubes S/N 006357 & Above Parts Diagram

Garden Tractor

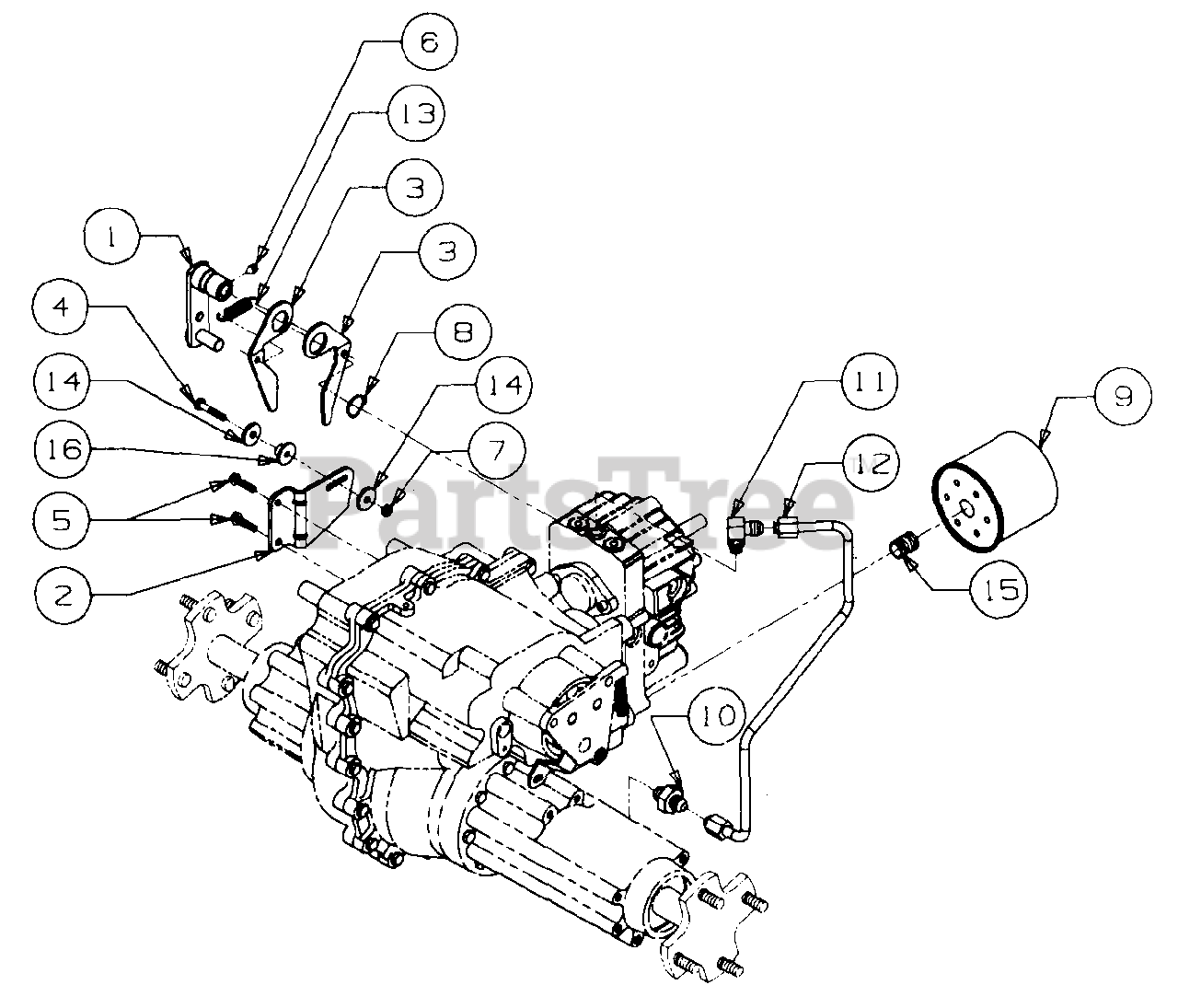

Neutral Linkage, Hydraulic Pickup & Return Tubes S/N 006357 & Above Parts Diagram

  • Title

1

Cub Cadet 603-0160

Arm Assy, Control

$

$

Not available

2

Cub Cadet 703-2440

Bracket, Hydro Neutral

$

$

Not available

3

Cub Cadet 703-2441

Arm, Neutral

$7.49

$

In Stock, only 2 left!

0

4

Cub Cadet 710-0106

Screw, Hex Cap, 1/4-20 X 1.25 Lg

$3.99

$

In Stock, only 1 left!

0

5

Cub Cadet 710-0788

Screw, Hex Wash TT-Tap, 1/4-20 X 1.0 Lg

$6.99

$

In Stock, only 4 left!

0

6

Cub Cadet 710-3242

Screw w/Patch,Set

$

$

Not available

7

Cub Cadet 712-0324

Nut, Hex Top Lock, 1/4-20

$3.49

$

In Stock, Qty 20+

0

8

Cub Cadet 716-0111

Ring, Snap, .875 Shaft

$6.49

$

In Stock, Qty 11

0

9

Cub Cadet 723-3014

Filter, Oil
(Superseded to 923-3014)

$20.99

$

In Stock, Qty 20+

0

10

Cub Cadet 727-3002

Connector, Tube 37 Deg w/O-Ring
(Superseded to 927-3002)

$11.99

$

Usually ships in 3-6 days

0

Cub Cadet 721-3001

O-Ring, 3/8 OD Tube

$3.49

$

In Stock, Qty 8

0

11

Cub Cadet 727-3086

Elbow, Adjustable w/O-Ring

$

$

Not available

Cub Cadet 721-3002

O-Ring, 1/4 OD Tube

$

$

Not available

12

Cub Cadet 727-3088

Tube, Pickup

$

$

Not available

13

Cub Cadet 732-3119

Spring, Extension, .50 OD X 1.97 Lg
(Superseded to 732-3119A)

$21.99

$

In Stock, only 2 left!

0

14

Cub Cadet 736-0176

Washer, Flat, .25 X .93 X .120 Thk

$3.99

$

In Stock, Qty 20+

0

15

Cub Cadet 737-3022

Nipple, Oil Filter
(Superseded to 937-3022)

$14.99

$

In Stock, only 1 left!

0

16

Cub Cadet 750-0918

Spacer, Centering

$

$

Not available
