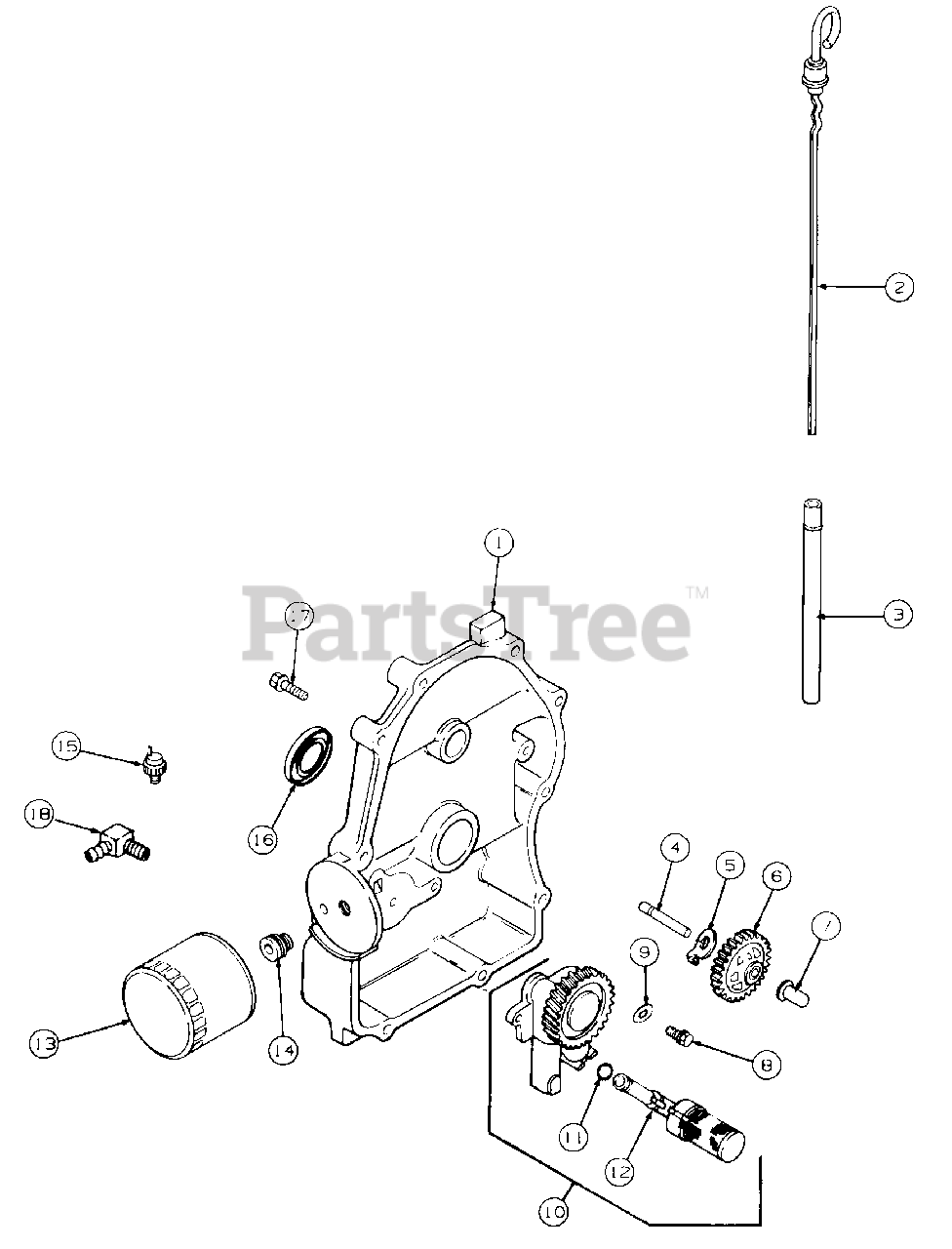

2185 (135-288-100) - Cub Cadet Garden Tractor (SN: 239001 - 326005) Oil Pan/Lubrication Parts Diagram

Garden Tractor

Oil Pan/Lubrication Parts Diagram

  • Title

1

Cub Cadet KH-24-009-04

Plate, Closure
(Superseded to KH-24-009-160-S)

$

$

Not available

Cub Cadet KH-24-153-08

O-Ring, Oil Passage

$

$

Not available

2

Cub Cadet KH-24-038-01

Dipstick
(Superseded to KH-24-755-121-S)

$35.99

$

In Stock, only 1 left!

0

3

Cub Cadet KH-24-123-04

Tube, Dipstick
(Superseded to KH-24-755-121-S)

$35.99

$

In Stock, only 1 left!

0

4

Cub Cadet KH-12-144-02

Shaft, Governor Gear

$

$

Not available

5

Cub Cadet KH-52-448-02

Tab, Locking
(Superseded to KH-24-448-01-S)

$2.49

$

In Stock, only 4 left!

0

6

Cub Cadet KH-24-043-06

Governor Gear Assembly
(Superseded to KH-24-043-12)

$

$

Not available

7

Cub Cadet KH-12-380-01

Pin, Governor Regulating

$

$

Not available

8

Cub Cadet KH-M-0645025

Screw
(Superseded to KH-M-645025-S)

$2.49

$

In Stock, Qty 12

0

9

Cub Cadet KH-SM-631005

Washer
(Superseded to KH-M-631005)

$

$

Not available

10

Cub Cadet KH-24-393-03

Oil Pump Assembly

Note: (Includes Ref No. 11 & 12)

$

$

Not available

11

Cub Cadet KH-24-153-01

O-Ring, Oil Pick-Up

$

$

Not available

12

Cub Cadet KH-24-381-01

Pick-Up, Oil
(Superseded to KH-24-381-03)

$

$

Not available

13

Cub Cadet KH-12-050-08

Filter, Oil
(Superseded to KH-12-050-01-S)

$13.99

$

In Stock, Qty 20+

0

14

Cub Cadet KH-24-136-01

Adapter, Oil Filter
(Superseded to KH-24-136-09-S)

$6.49

$

Usually ships in 3-6 days

0

15

Cub Cadet KH-52-099-06

Switch, Oil Pressure
(Superseded to KH-25-099-27-S)

$15.99

$

In Stock, Qty 6

0

16

Cub Cadet KH-52-032-08

Seal, Oil (PTO end)
(Superseded to KH-25-032-06-S)

$10.99

$

In Stock, Qty 20+

0

17

Cub Cadet KH-SM-839045

Screw, Closure Plate, M5 x 1.25 x 45
(Superseded to KH-24-086-17-S)

$2.49

$

In Stock, Qty 20+

0

18

Cub Cadet KH-25-155-02

Connector, 90° Hose

$

$

Not available
