2185 (13A-288-100) - Cub Cadet Garden Tractor (SN: 326006 - 389000) Ignition, Electrical, And Flywheel Parts Diagram

Garden Tractor

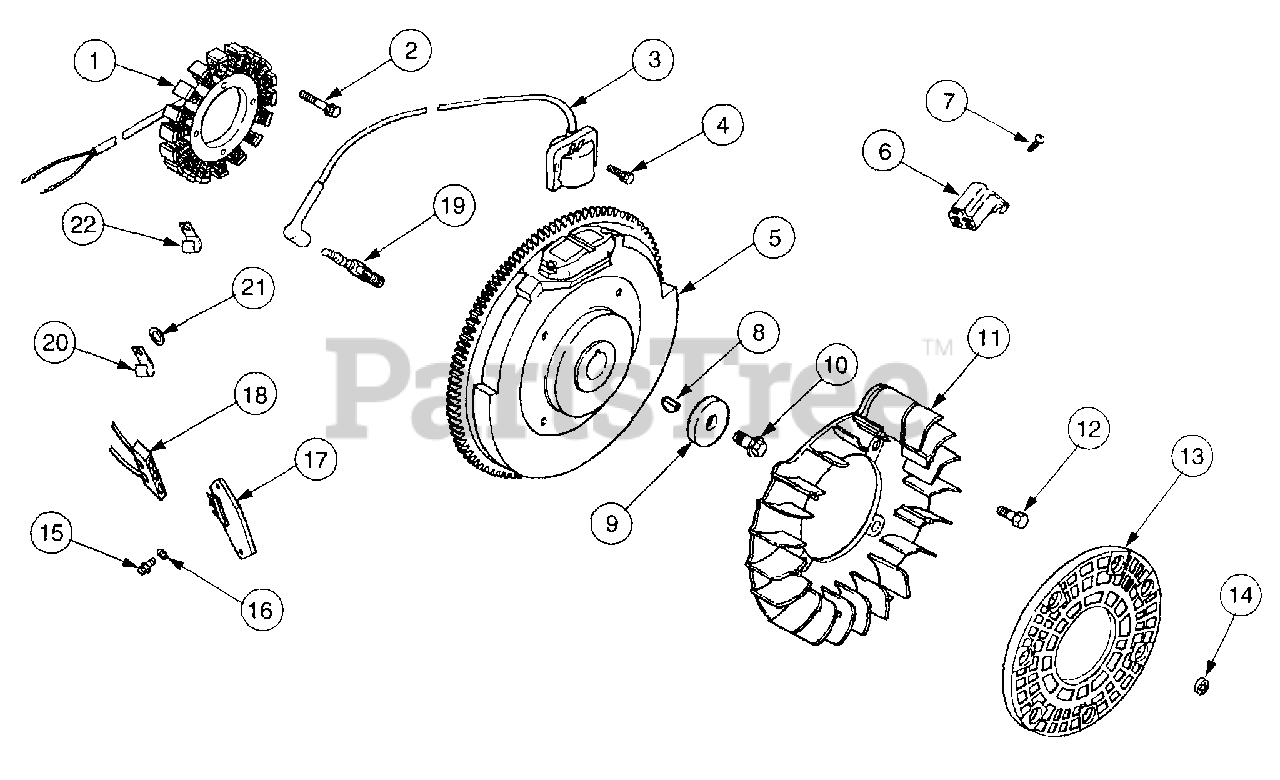

Ignition, Electrical, And Flywheel Parts Diagram

  • Title

1

Cub Cadet KH-54-755-09

Stator Kit, 15 Amp
(Superseded to KH-237878)

Note: (Includes KH-24-126-71 Bracket)

$

$

Not available

2

Cub Cadet KH-M-0548025

Screw, Stator Mtg. M5 x .8 x 25
(Superseded to KH-25-086-402-S)

$2.99

$

In Stock, only 1 left!

0

3

Cub Cadet KH-24-584-01

Module, Ignition
(Superseded to KH-24-584-45-S)

$116.99

$

Usually ships in 3-6 days

0

4

Cub Cadet KH-SM-0545020

Screw, Module M5 x .8 x 20

$

$

Not available

5

Cub Cadet KH-24-025-01

Flywheel Assembly
(Superseded to KH-24-025-55-S)

$310.99

$

Usually ships in 2-5 days

0

6

Cub Cadet KH-25-155-06

Connector

$

$

Not available

7

Cub Cadet KH-X-67-3

Screw, Hex Sems #10-16 x 1/2
(Superseded to KH-25-086-91-S)

$3.49

$

Usually ships in 2-5 days

0

8

Cub Cadet KH-X-42-15

Key

$

$

Not available

9

Cub Cadet KH-12-468-03

Washer, Flywheel Mtg. Screw

$

$

Not available

10

Cub Cadet KH-12-086-14

Screw, Flywhl Mtg, M10 x 1.5 x 46
(Superseded to KH-25-086-361-S)

$4.49

$

Usually ships in 2-5 days

0

11

Cub Cadet KH-24-157-01

Fan
(Superseded to KH-24-755-253-S)

$50.99

$

In Stock, Qty 8

0

12

Cub Cadet KH-25-086-47

Bolt, Shoulder

$

$

Not available

13

Cub Cadet KH-24-162-02

Screen, Grass
(Superseded to KH-24-162-36-S)

$29.99

$

Usually ships in 2-5 days

0

14

Cub Cadet KH-24-018-03

Retainer
(Superseded to KH-24-018-03-S)

$2.49

$

In Stock, Qty 17

0

15

Cub Cadet KH-24-086-18

Screw Phillips Hd., #11-16 x .875

$

$

Not available

16

Cub Cadet KH-X-25-92

Washer, Plain

$

$

Not available

17

Cub Cadet KH-25-403-03

Regulator - Rectifier
(Superseded to KH-41-403-10-S)

$126.99

$

Usually ships in 2-5 days

0

18

Cub Cadet KH-236602

Connector, Regulator - Rectifier
(Superseded to KH-25-155-41-S)

$29.99

$

In Stock, only 1 left!

0

19

Cub Cadet 759-3336

Spark Plug
(Superseded to RC12YC)

$7.49

$

Usually ships in 3-6 days

0

20

Cub Cadet KH-235173

Clip, Cable

$

$

Not available

21

Cub Cadet KH-X-25-63

Washer, Plain 1/4"

$

$

Not available

22

Cub Cadet KH-48-154-02

Clip, Cable

$

$

Not available

Cub Cadet KH-24-176-01

Harness, Wire

$

$

Not available

Cub Cadet KH-24-518-28

Lead

$

$

Currently unavailable

Cub Cadet KH-24-126-71

Bracket, Stator
(Superseded to KH-24-126-139-S)

$19.99

$

Usually ships in 2-5 days

0
