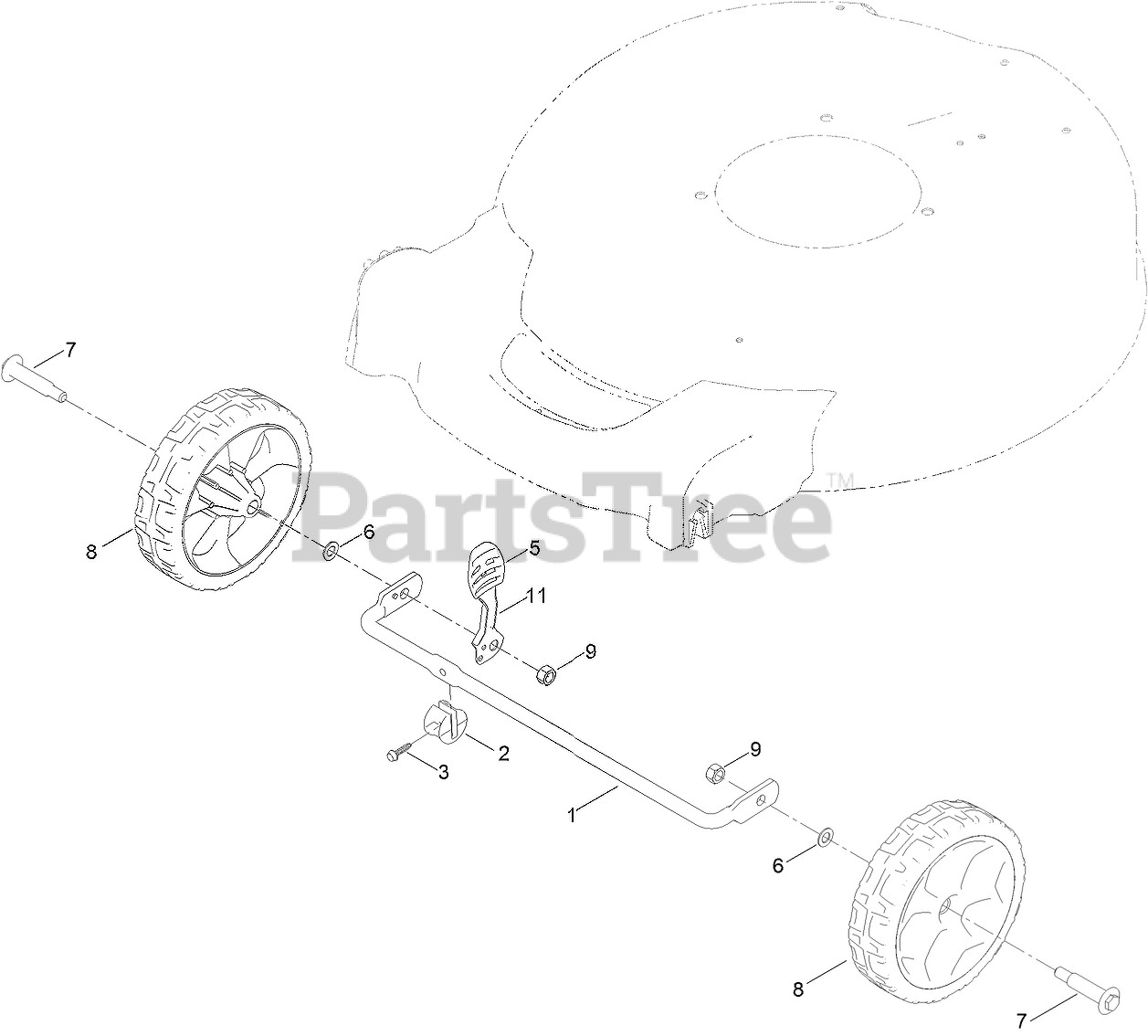

21852 T - Toro 52cm Flex-Force Power System 60V MAX Recycler Walk-Behind Mower (SN: 400000000 - 999999999) Front Wheel and Height-of-Cut Assembly Parts Diagram
52cm Flex-Force Power System 60V MAX Recycler Walk-Behind Mower
Front Wheel and Height-of-Cut Assembly Parts Diagram
Toro 127-0668-03
AXLE-FRONT
$17.99
$
In Stock, only 1 left!
Toro 127-6800
STOP-AXLE
$1.49
$
In Stock, Qty 20+
Toro 139-1690
SCREW-PLASTIC, HWH
$0.99
$
Usually ships in 3-6 days
Toro 105-3042
KNOB-LEVER, HOC
$4.49
$
In Stock, Qty 20+
Toro 40-1940
WASHER
$2.99
$
In Stock, Qty 20+
Toro 92-1057
BOLT-SHOULDER
$3.99
$
In Stock, Qty 6
Toro 127-0683
7 INCH WHEEL ASM
$33.99
$
Usually ships in 3-6 days
Toro 603773
LOCKNUT
$2.99
$
In Stock, Qty 20+
Toro 133-8154
ARM-SPRING
$8.99
$
In Stock, Qty 15
