21852 - Toro 52cm Flex-Force Power System 60V MAX Recycler Walk-Behind Mower (SN: 400000000 - 408940929) Handle Assembly Parts Diagram

52cm Flex-Force Power System 60V MAX Recycler Walk-Behind Mower

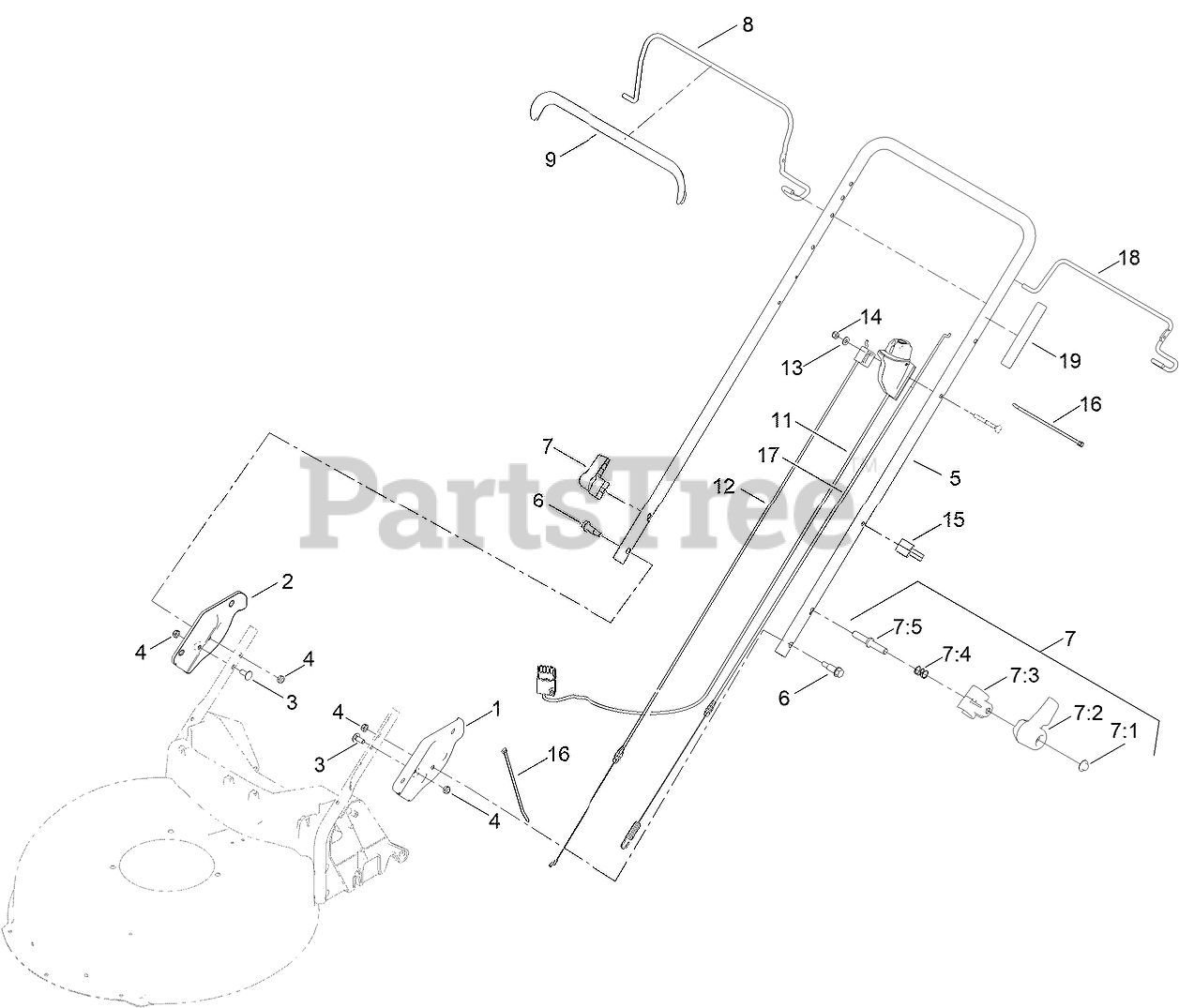

Handle Assembly Parts Diagram

  • Title
1

Toro Part# 140-3973-05

PLATE-HANDLE, LH
Usually ships same day

Currently unavailable

$

$

2

Toro Part# 140-3974-05

PLATE-HANDLE, RH
Usually ships same day

Currently unavailable

$

$

3
Usually ships in 5 to 8 days

$

$0.59

0

Usually ships in 5 to 8 days

$

$0.43

0

Usually ships in 1 day

$

$40.60

0

6

Toro Part# 130-2344

BOLT-SHOULDER
Usually ships in 1 day

$

$2.23

0

7

Toro Part# 138-3249

QUICK RELEASE ASM
Usually ships in 1 day

$

$8.90

0

7:1
Usually ships in 1 day

$

$1.12

0

7:2

Toro Part# 138-3248

LEVER-RELEASE
Usually ships same day

Not available

$

$

7:3

Toro Part# 138-3253

ANCHOR-SPRING
Usually ships in 5 to 8 days

$

$1.79

0

7:4

Toro Part# 115-2858

SPRING-COMPRESSION
Usually ships in 5 to 8 days

$

$2.73

0

7:5

Toro Part# 138-3243

ROD-RELEASE
Usually ships in 5 to 8 days

$

$1.74

0

8
Usually ships in 1 day

$

$11.81

0

9

Toro Part# 127-6847

COVER-BAIL
Usually ships in 1 day

$

$3.38

0

11

Toro Part# 140-3800

SWITCH STARTER ASM
Usually ships same day

Currently unavailable

$

$

12

Toro Part# 137-9169

CABLE-BRAKE, HP
Usually ships in 5 to 8 days

$

$21.84

0

13

Toro Part# 139-1699

WASHER-FLAT
Usually ships in 5 to 8 days

$

$0.90

0

14

Toro Part# 3296-73

NUT-LOCK, NI
Usually ships in 1 day

$

$3.21

0

15

Toro Part# 114-7988

GUIDE-CABLE
Usually ships in 1 day

$

$2.26

0

16

Toro Part# 614249

TIE-CABLE
Usually ships in 1 day

$

$0.83

0

17

Toro Part# 127-0733

CABLE-TRACTION
Usually ships in 1 day

$

$14.39

0

18

Toro Part# 131-0835-03

BAIL-TRACTION
Usually ships in 1 day

$

$12.54

0

19

Toro Part# 144-3175

DECAL-CONTROLS (60V START)
Usually ships same day

Currently unavailable

$

$
