2187520 (7800946-00) - Snapper 21" Walk-Behind Mower, 8.75hp Engine Group Parts Diagram

21" Walk-Behind Mower, 8.75hp

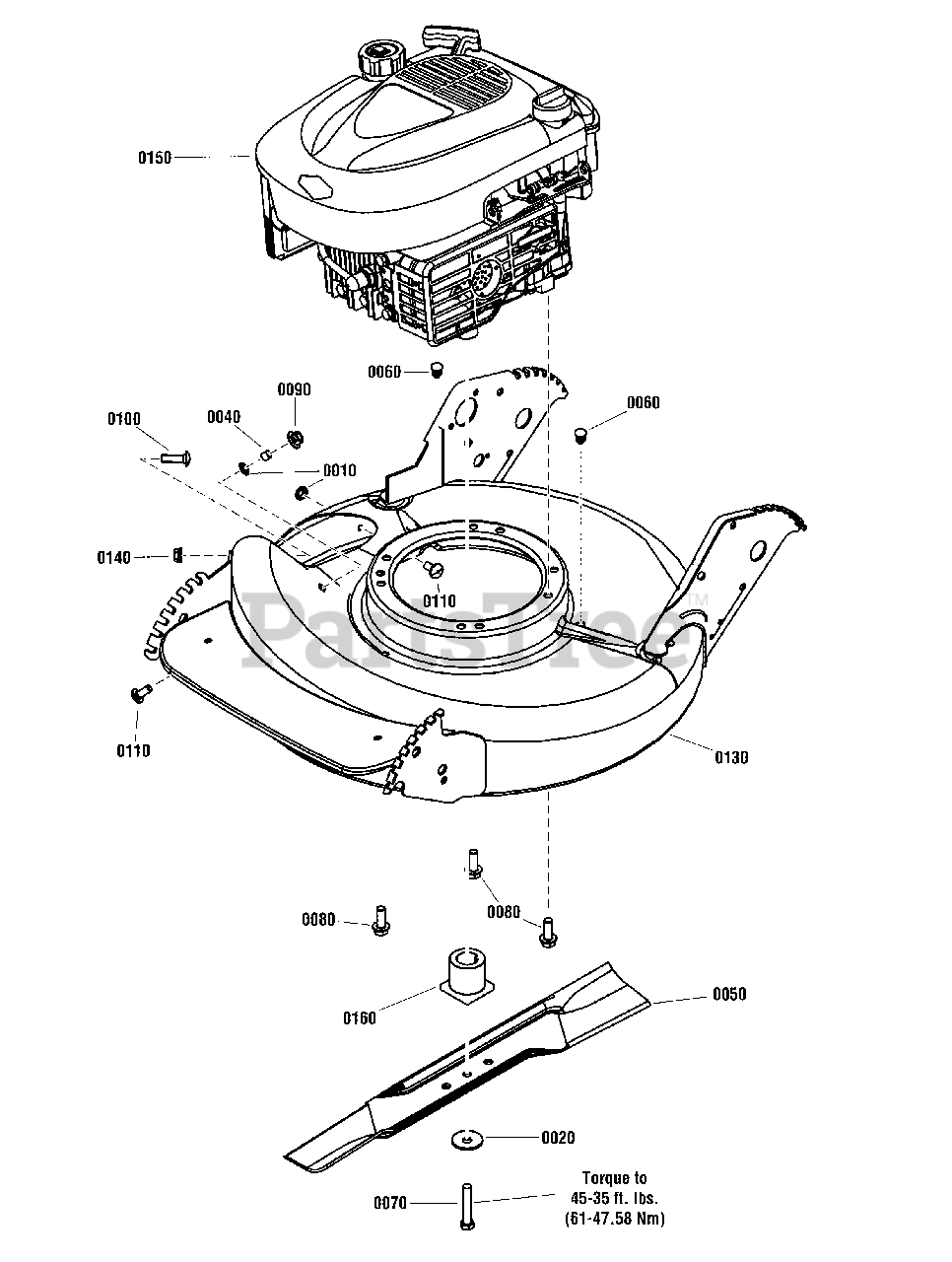

Engine Group Parts Diagram

  • Title

0010

Snapper 703297

RETAINER, 5/16 X .625, Push Nut, GR 5, Zinc/Clear

$3.99

$

In Stock, Qty 20+

0

0020

Snapper 703963

WASHER, 13/32x1-13/32" Dia. Cone

$6.99

$

In Stock, Qty 20+

0

0040

Snapper 7024340SM

SPACER, .375 OD X .316 ID X .305 L

$4.99

$

In Stock, only 4 left!

0

0050

Snapper 7026691BZYP

BLADE, 21" L, .97" Standard Lift

$23.99

$

In Stock, Qty 20+

0

0060

Snapper 7046780SM

PLUG, Hole, .44" OD

$4.99

$

In Stock, only 1 left!

0

0070

Snapper 703999

SCREW, 3/8-24 X 2, Hex Head Cap, GR5
(Superseded to 7090167SM)

$3.99

$

Usually ships in 2-12 days

0

0080

Snapper 704000

SCREW, 3/8-16 X 1.0, Hex Washer Self-Tap, ZC/CL

$4.99

$

In Stock, only 4 left!

0

0090

Snapper 704001

NUT, 5/16-18 Large Flange Center Lock, ZC/CL

$4.49

$

In Stock, Qty 19

0

0100

Snapper 704002

BOLT, 5/16-18 X 1.125, Carriage, ZC/CL

$4.49

$

Usually ships in 2-12 days

0

0110

Snapper 703185

BOLT, Carriage, 5/16-18 X 3/4

$3.49

$

In Stock, Qty 20+

0

0130

Snapper 7500549DYP

KIT, Deck Weldment, 21", Part Sales, HV, SP, ES (red, w/decals)

$

$

Not available

0140

Snapper 703409

NUT, Serrated Lock Flange, 5/16-18

$5.49

$

In Stock, Qty 20+

0

0150

Snapper 121S02-0066-F1

* ENGINE, B&S 8.75 GT, PRO Model 121S02-0066-F1

$

$

Currently unavailable

0160

Snapper 7015626YP

HUB, Blade Drive, .25MM ID

$15.99

$

In Stock, only 1 left!

0
