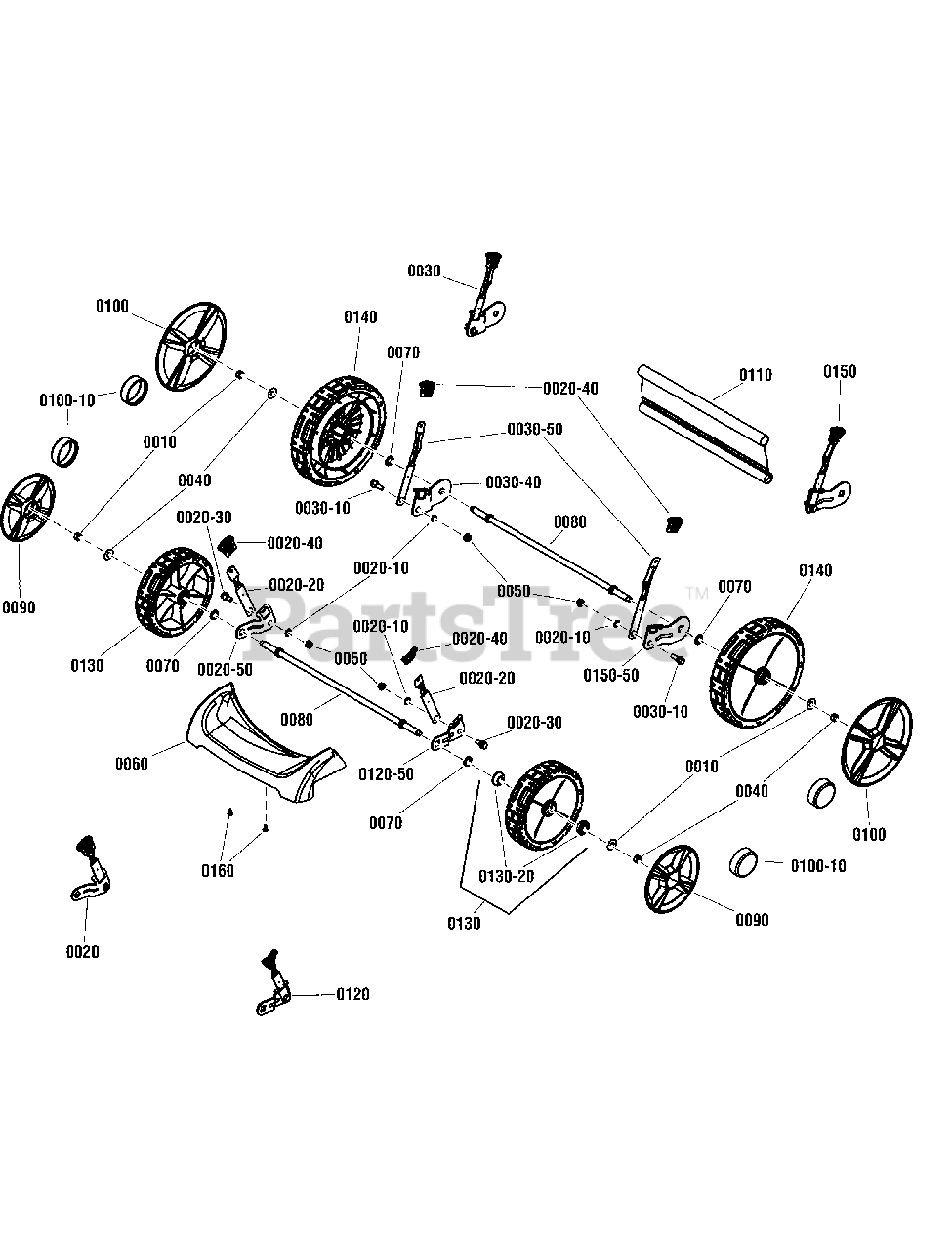

2187520 (7800946-00) - Snapper 21" Walk-Behind Mower, 8.75hp Wheel Group Parts Diagram

21" Walk-Behind Mower, 8.75hp

Wheel Group Parts Diagram

  • Title

0010

Snapper 703966

WASHER, 1 OD x .387 ID, Flat

$4.49

$

In Stock, only 2 left!

0

0020

Snapper 7600180YP

KIT, Front Wheel Arm Assembly, RH

$15.99

$

Usually ships in 2-12 days

0

0020-10

Snapper 703297

RETAINER, 5/16 X .625, Push Nut, GR 5, Zinc/Clear

$3.99

$

In Stock, Qty 20+

0

0020-20

Snapper 7012325YP

LATCH, Height

$5.99

$

In Stock, Qty 6

0

0020-30

Snapper 703839

BOLT, 5/16-18 X .750, Hex Washer Head Shoulder, Zinc/Clear

$5.49

$

In Stock, Qty 6

0

0020-40

Snapper 7103793YP

GRIP, Height Latch, Black

$4.49

$

In Stock, Qty 9

0

0020-50

Snapper 7031017YP

WHEEL ARM, Front, Round Hole, RH, Clear

$14.99

$

Usually ships in 2-12 days

0

0030

Snapper 7054228YP

ASSEMBLY, Wheel Arm, Right Rear (Round hole) (Push)

$15.99

$

Usually ships in 2-12 days

0

0030-10

Snapper 703840

BOLT, 5/16-18 X 1.0, Hex Washer Head .435 Dia. Shoulder, ZC/CL

$5.49

$

In Stock, Qty 6

0

0030-40

Snapper 7033776YP

WHEEL ARM, Rear R.H. Push Models (round hole) Zinc/Clear

$8.49

$

In Stock, only 1 left!

0

0030-50

Snapper 7035717YP

LATCH, Height Adjusting, (long)

$6.99

$

In Stock, only 3 left!

0

0040

Snapper 703347

NUT, 3/8-16, Hex Center-Lock, GR B, Zinc/Clear

$4.99

$

In Stock, Qty 17

0

0050

Snapper 703409

NUT, Serrated Lock Flange, 5/16-18

$5.49

$

In Stock, Qty 20+

0

0060

Snapper 7100196YP

COVER, Front 21" Walk

Note: (Used on 7800946-00)

$23.99

$

Usually ships in 2-12 days

0

0070

Snapper 703835

WASHER, Shim, .875 x .531 x .060

$4.49

$

In Stock, Qty 12

0

0080

Snapper 7100752YP

AXLE, Easy Line (20.44" L, 3/8-16 Threads)

$

$

Not available

0090

Snapper 7101350YP

HUBCAP, 8" & 9" Spoked Wheel, 6.51" OD, Gray

Note: (Used on 7800946-00)

$10.99

$

In Stock, only 2 left!

0

0100

Snapper 7102625YP

HUBCAP, 10" Wheel, Spoked, 8.51" OD, Gray

Note: (Used on 7800946-00)

$4.99

$

In Stock, only 4 left!

0

0100-10

Snapper 7106302YP

HUBCAP, Round, 1.7" OD, Gray

Note: (Used on 7800946-01)

$4.99

$

In Stock, only 2 left!

0

0110

Snapper 7103210YP

GUARD, Rear, 21" Push, 16.13" L

$17.99

$

Usually ships in 2-12 days

0

0120

Snapper 7600183YP

KIT, Front Left Wheel Arm Assembly (.512 Square Hole)

$

$

Not available

0120-50

Snapper 7011393YP

WHEEL ARM, L.H. Front (.512 Square Hole) CZ/CL

$7.99

$

Usually ships in 2-12 days

0

0130

Snapper 7500540YP

ASSEMBLY, Wheel, 8" X 2" Idle w/Bearings, Gray

Note: (Used on 7800946-00)

$40.99

$

In Stock, Qty 10

0

0130

Snapper 7503282YP

ASSEMBLY, Wheel, 8" X 2" Idle w/Bearings, Gray

Note: (Used on 7800946-01)

$40.99

$

In Stock, Qty 10

0

0130-20

Snapper 7101380YP

BALL BEARING, Flange, 1-1/8 O.D. (Not Shown)
(Superseded to 071579MA)

$40.99

$

In Stock, only 1 left!

0

0140

Snapper 7501092YP

ASSEMBLY, Wheel, 10" x 2" Push, BB, Snapper Tread Charcoal Gray

Note: (Used on 7800946-00)

$53.99

$

In Stock, only 3 left!

0

0140

Snapper 7503281YP

ASSEMBLY, Wheel, 10" x 2" Push, BB, Snapper Tread Charcoal Gray

Note: (Used on 7800946-01)

$54.99

$

In Stock, only 1 left!

0

0150

Snapper 7600175YP

KIT, Wheel Arm Assembly, Left Rear Long (Push)

$25.99

$

Usually ships in 2-12 days

0

0150-50

Snapper 7102587YP

WHEEL ARM, Rear, LH, Clear Zinc

$9.49

$

Usually ships in 2-12 days

0

0160

Snapper 703834

SCREW, 4.8MM X 1.59MM X 13MM, Torx Round Washer Head, HI-LO, ZC/CL

Note: (Used on 7800946-00)

$4.49

$

In Stock, only 4 left!

0
