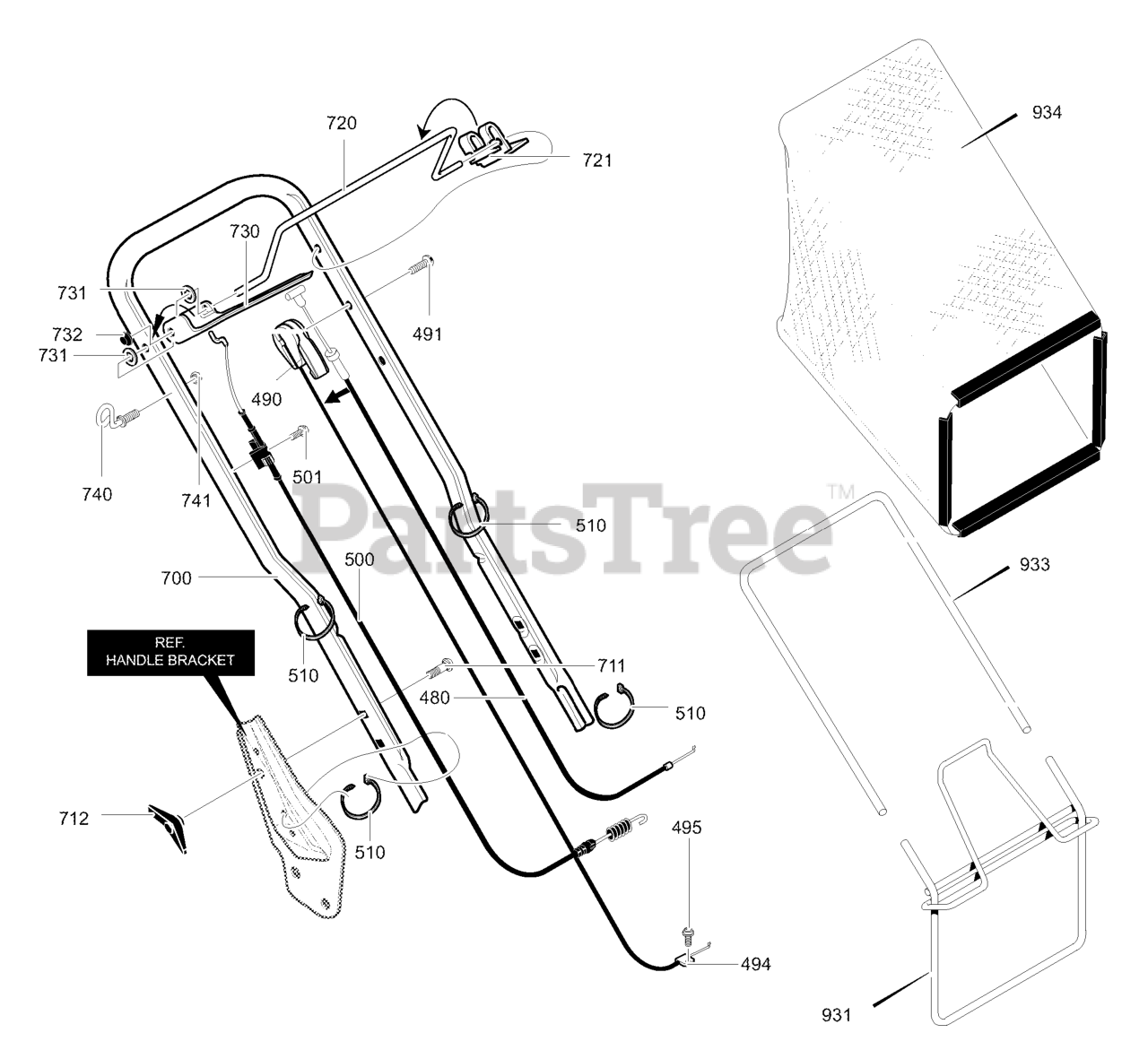

21875x51C - Murray 21" Walk-Behind Mower (2000) Handle & Bag Assembly Parts Diagram

21" Walk-Behind Mower

Handle & Bag Assembly Parts Diagram

  • Title

480

Murray 672530MA

Cable, Stop

$12.99

$

Usually ships in 2-12 days

0

490

Murray 672539MA

T-Cable

$

$

Not available

491

Murray 323035MA

Screw 1/4-20x2.00

$4.49

$

Usually ships in 2-12 days

0

494

Murray 12425

Clamp, Throttle
(Superseded to 7012425YP)

$21.99

$

In Stock, Qty 14

0

495

Murray 710275

Screw, 10-32x.62
(Superseded to 66574)

$7.49

$

Usually ships in 2-12 days

0

500

Murray 672545MA

Drive Cable

$

$

Not available

501

Murray 710269

Screw, 10-16x.75

$

$

Not available

510

Murray 712267

Cable Tie

$3.99

$

Usually ships in 2-12 days

0

700

Murray 672286-846

Handle

$

$

Currently unavailable

711

Murray 710175

Bolt, Carriage 5/16-18x2

$5.99

$

Usually ships in 2-12 days

0

712

Murray 671294MA

Knob, Wing
(Superseded to 703065)

$6.99

$

In Stock, Qty 20+

0

720

Murray 672429-860

Lever, Stop Engine

$

$

Currently unavailable

721

Murray 643628

Bracket, Stop Lever

$

$

Currently unavailable

730

Murray 671566MA

Lever, Drive Control

$19.99

$

Usually ships in 2-12 days

0

731

Murray 710491

Washer, Nylon

$24.99

$

In Stock, only 1 left!

0

732

Murray 710285

Cap, Push On
(Superseded to 231739)

$17.99

$

In Stock, only 2 left!

0

740

Murray 672510MA

Rope Guide

$5.99

$

Usually ships in 2-12 days

0

741

Murray 710203

Nut, 1/4-20 Hexnyl

$19.99

$

Usually ships in 2-12 days

0

931

Murray 672293MA

Bag, Frame Assy.

$176.99

$

In Stock, only 1 left!

0

933

Murray 071592MA

Frame, Catcher Bag

$

$

Not available

934

Murray 672575

Bag, Catcher

$

$

Currently unavailable
